YEL/BLU
10 Plug the set of RED colored wires of the PCV in-line with the BLACK/WHITE
11 Plug the set of BLUE colored wires of the PCV in-line with the YELLOW/BLUE
12 Bolt the rear coil back to its mounting bracket.
13 Locate and unplug the Crank Position Sensor connectors on the right hand

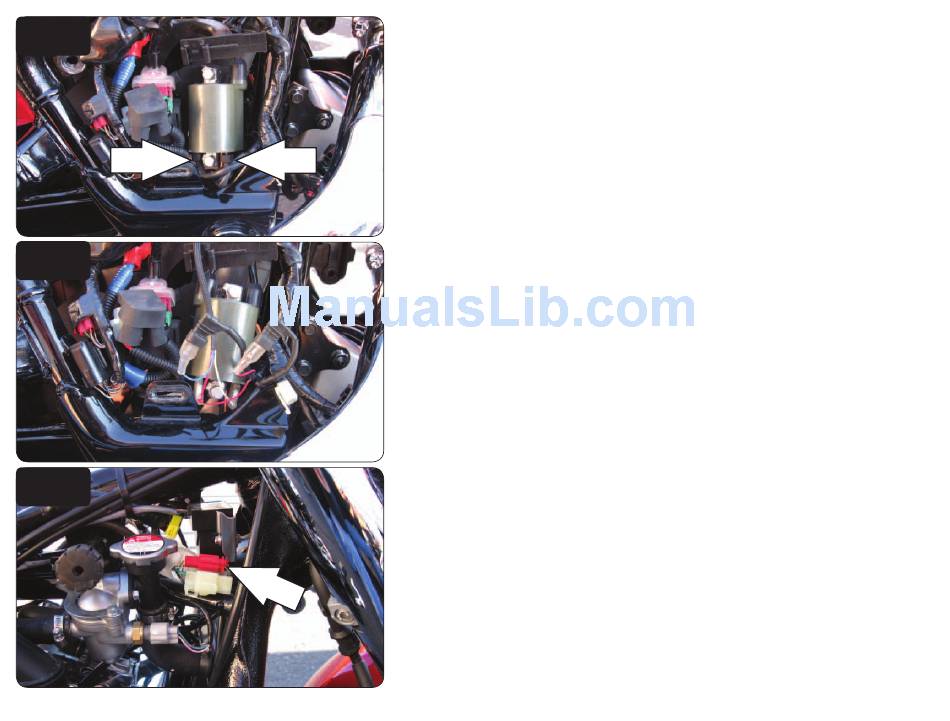

Locate the rear ignition coil behind the right hand side cover (Fig. D).
Unbolt this coil so that the bottom wires can be accessed.
Unplug the BLACK/WHITE and YELLOW/BLUE wires from the coil.
coil wire and the coil.
coil wire and the coil.
side of the bike, up by the steering stem (Fig. F).
This is the set of RED, 2-pin connectors.
