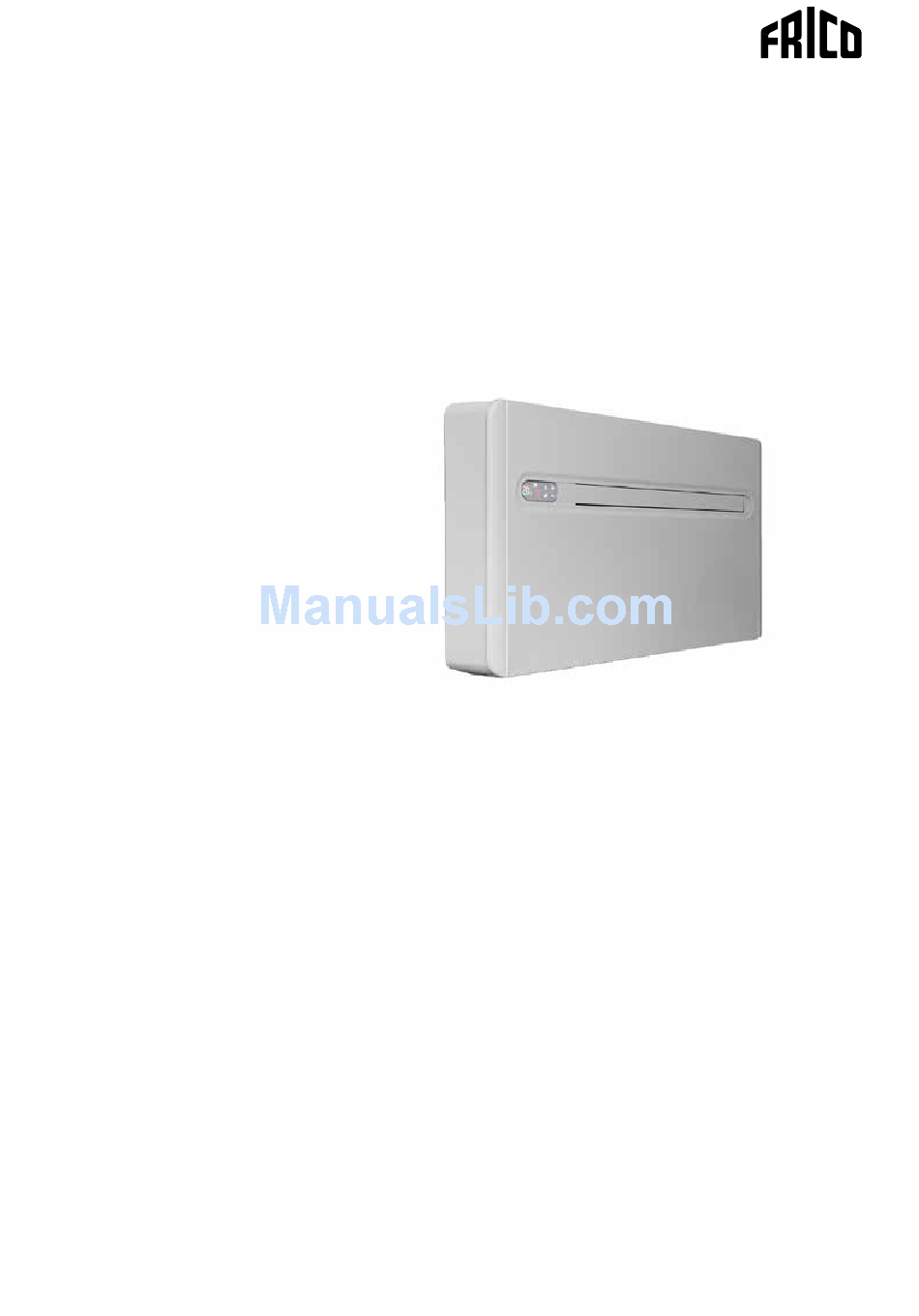

- Page 1 Original instructions Soloclim Installation...
- Page 2 Soloclim Compliance Safety pictograms This unit complies with the following European Directives: Warning • Low voltage 2014/35/EU It indicates actions that require caution and a suitable • Electro-magnetic compatibility 2014/30/EU preparation. • Use restrictions of hazardous substances in electrical and electronic equipment 2011/65/EC (RoHS2) Prohibition •...
-
Page 3: Table Of Contents
Soloclim General General warnings Fundamental safety rules Description Storage Handling Shipping dimensions and weight Supplied components Unit parts Installation Installation mode Choosing the position of the unit Assembling the unit Condensation drain predisposition Assembling air ducts and external shutters Mounting the appliance on the bracket Electrical connection High/low installation configuration Setting cool only or heat only modes... -
Page 4: General Warnings
Soloclim General General General warnings A temperature that is too high or too low is harmful to After unpacking, check that the contents are intact and health and is an unnecessary waste of energy. that all parts are included. If not, contact the agent who Avoid prolonged direct contact with the air flow. -
Page 5: Description
General Soloclim Description The air conditioning unit Soloclim is the new solution The energy consumption is extremely reduced thanks to that represents a significant step towards reducing the absorption values falling down under 300 W in the case aesthetic impact of air conditioners. With a depth of just 16 of partial load. -
Page 6: Handling
Soloclim General Handling The unit is packed singularly in a cardboard box. Boxes can either be carried singularly by hand by two operators or loaded on a cart, for a maximum of three units.w Handling must be performed by qualified personnel, with specific tools and with equipment suitable for the weight of the appliance. -
Page 7: Unit Parts
General Soloclim Unit parts Air outlet flaps Touch screen display Front panel Outdoor air suction Outdoor air outlet Internal air intake grille Air Filter Condensation drain pipe Room air probe Power supply terminal board Aesthetic side panel Anti-lifting bracket... -
Page 8: Installation
Soloclim Installation Installation Installation mode Before installing the conditioner, it is essential to calculate Try to reduce the thermal refrigeration load of the room the summer thermal loads (and winter ones for the models following instructions below: with a heat pump) of the room. The more calculations Cover large windows exposed to sunlight with curtains are exact, the better the product will work. -
Page 9: Assembling The Unit
Installation Soloclim Assembling the unit For the unit to work, two holes Ø162 must be placed as The majority of the removed material is expelled outwards, indicated on the template; so please be careful that it doesn't hit people or objects. In order to avoid breaking the outer plaster, be careful while The maximum length of the holes is 1 m and there must drilling the final part of the hole and ease the pressure on the... -
Page 10: Condensation Drain Predisposition
Soloclim Installation Condensation drain predisposition For heat pump appliances, a condensation drain pipe (Ø10 If the line flows into a container (e.g. a tank), do not mm, internal, not supplied) must connect the unit to the close the container hermetically and avoid immersing pipe on the top part of the appliance. -
Page 11: Mounting The Appliance On The Bracket
Installation Soloclim Once installation of the grilles is complete check their opening (towards the inside of the duct for the air inlet grid "IN" and towards the outside of the duct for the air outlet grid "OUT"). Remember that the grilles open when Junction line the external air flow is activated, to allow the cooling and Hook... -
Page 12: Electrical Connection
Soloclim Installation Electrical connection The appliance is equipped with a power cord and plug Please check that the power supply is provided with (Y-type connection, the cord can only be replaced by the suitable protections against overloads and/or short-circuits manufacturer, the assistance centre or a qualified installer). (using a 10 at delay fuse or other equivalent devices is If using a socket near the appliance, insert the plug. -
Page 13: High/Low Installation Configuration
Installation Soloclim High/low installation configuration The unit can be installed either in the lower part (near the configuration can also be used in the upper part of the wall floor) or in the upper part (near the ceiling) of the wall. In in cooling mode, which increases the air flow in the room order to optimise air distribution and comfort, the direction (coanda effect). -
Page 14: Setting Cool Only Or Heat Only Modes
Soloclim Installation Touch-screen display key lock Setting cool only or heat only modes It is possible to deactivate the heating or the cooling modes The key lock is activated by keeping the Timer symbol on following a simple procedure. the touch-screen display pressed for three seconds. - Page 15 Maintenance Soloclim Use of the appliance Objects or structural obstacles (furniture, curtains, plants, During heating mode, the conditioner eliminates leaves, blinds, etc.) must not obstruct the normal air flow periodically any ice formed on the external battery. In both from the internal and from the external grids. such situation, the machine keeps on working but it does not dispense warm air to the room.
-
Page 16: Periodic Maintenance
Soloclim Maintenance Maintenance Periodic maintenance The air conditioner you have bought has been designed to keep maintenance operations to a minimum, in fact, they only include the following cleaning operations: External cleanings Disconnect the unit from the power supply before each cleaning and maintenance intervention by setting the main power supply switch to off. -
Page 17: Troubleshooting
Maintenance Soloclim Trouble shooting In case of malfunctioning, please refer to the following table. If, after performing the suggested checks, the problem is not solved, please contact the authorised technical assistance. Anomaly Possible causes Solution Check the voltage (by turning the light on, for example). Check that the exclusive magneto-thermic switch that protects the appliance The appliance No power supply... -
Page 18: Technical Specifications
Soloclim Maintenance Technical specifications Please read data plate to obtain the technical data listed below. • Power supply voltage • Maximum absorbed power • Maximum absorbed current • Amount of refrigerant gas • Casing protection level • Max. working pressure SC17 SC22 SC21DCI... - Page 19 Main office Frico AB Tel: +46 31 336 86 00 Box 102 SE-433 22 Partille mailbox@frico.se Sweden www.frico.se For latest updated information and information about your local contact: www.frico.se...
