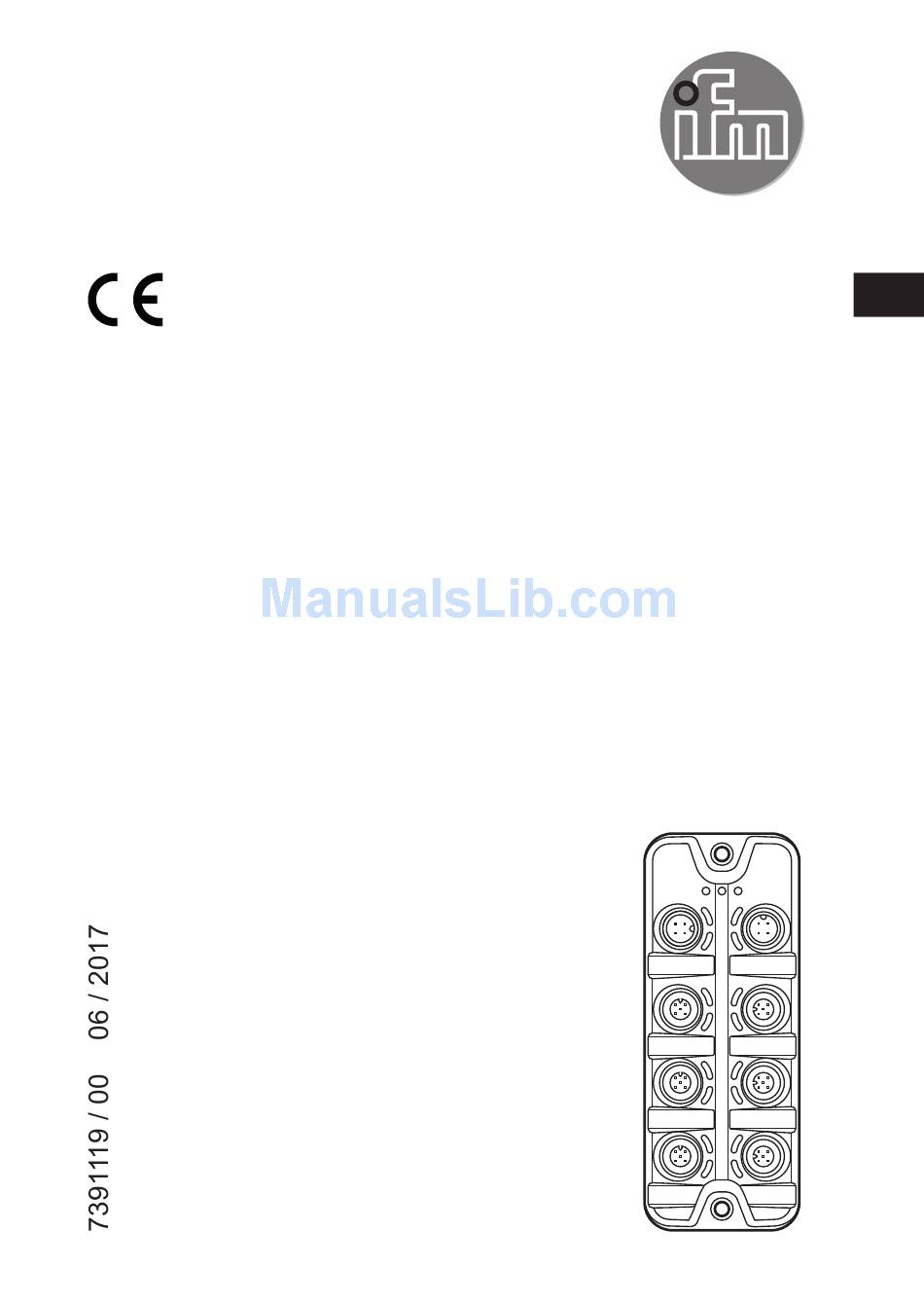

Operating instructions
UK
IO-Link module
AL2230
AL2330
P_MZ_e500_0001
Origin
26
34
38

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AL2230 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IFM Electronic AL2230

  • Page 1 Operating instructions IO-Link module AL2230 AL2330 P_MZ_e500_0001 Origin...
  • Page 2: Table Of Contents

    Contents 1 Preliminary note ���������������������������������������������������������������������������������������������������3 2 Safety instructions �����������������������������������������������������������������������������������������������3 3 Functions and features ����������������������������������������������������������������������������������������3 3�1 IO-Link �����������������������������������������������������������������������������������������������������������3 3�1�1 General information ������������������������������������������������������������������������������3 3�1�2 Device-specific information �������������������������������������������������������������������3 3�1�3 Parameter setting tools ������������������������������������������������������������������������4 3�1�4 Response when the IO-Link communication is interrupted ������������������4 4 Function ���������������������������������������������������������������������������������������������������������������4 4�1�1 Electrical isolation of the voltage supply ����������������������������������������������4 4�1�2 Visual indication ������������������������������������������������������������������������������������4 4�1�3 Parameter setting ���������������������������������������������������������������������������������4...
  • Page 3: Preliminary Note

    3 Functions and features The AL2230 unit has a grey housing and is suitable for use in the food and beve- rage industry (use of cleaning agents at high pressure and high temperatures)�...
  • Page 4: 3�1�3 Parameter Setting Tools

    3.1.3 Parameter setting tools You will find all necessary information about the required IO-Link hardware and software at www�ifm�com 3.1.4 Response when the IO-Link communication is interrupted The parameter "Output state COM lost / PD invalid" (index 15000) is used to set how the outputs are to respond when the IO-Link communication is interrupted�...
  • Page 5: 4�1�6 Variable Output Currents

    4.1.6 Variable output currents The unit monitors the total currents of both output sides� 1800 mA can be switched on every side� The individual outputs have no additional current limitation and can therefore be loaded variably� If the total current of an output side is too high, the unit switches off this side�...
  • Page 6: 6�1 Io-Link Connection

    Do not connect more than 30 m of cable to the outputs� Do not apply external voltage to the outputs� 6.1 IO-Link connection The IO-Link port must be connected according to the IO-Link specification� 7 Pin connection M12 connector IO-Link (X1) 1: + 24 V DC (US) 2: not connected 3: GND (US)
  • Page 7: Operating And Display Elements

    8 Operating and display elements 1: LED INT internal fault 2: LED L fault on the left side 3: LED R fault on the right side 4: LED UAL voltage supply left ok 5: LED UAR voltage supply right ok 6: LED DO2 status output DO2 7: LED DO1...
  • Page 8: 8�1 Leds

    8.1 LEDs Colour Status Description internal fault short circuit or undervoltage on the left side no fault on the left side unit in the operating mode short circuit or undervoltage on the right side no fault on the right side unit in the operating mode green voltage supply on the left side ok...
  • Page 9: Scale Drawing

    M12x1 333,4% EPS Source Dimensions [mm] Product Scale Drawing 59,3 Frame Size: 80 mm x 58,5 mm M12x1 10 Technical data AL2230 AL2330 Operating voltage DC 18���30 Nominal voltage DC Power consumption 1�5 Output function transistor PNP Max� total current per output side [mA] ≤...
  • Page 10: 10�1 Io-Link Device

    Storage temperature [°C] -25…70 Max� permissible relative 5���75 humidity Maximum operating altitude 2000 above sea level Permissible air pressure [hPa] 750���1060 Connectors M12 connector, 4 poles M12 socket, 5 poles 10.1 IO-Link device Transmission type COM2 (38�4 kbaud) IO-Link revision 1�1 SDCI standard IEC 61131-9...
  • Page 11: Approvals/Standards

    12 Approvals/standards EC declarations of conformity, approvals etc� can be downloaded at: www�ifm�com...
