Eaton MPD-C-EXT Product Manual page 4

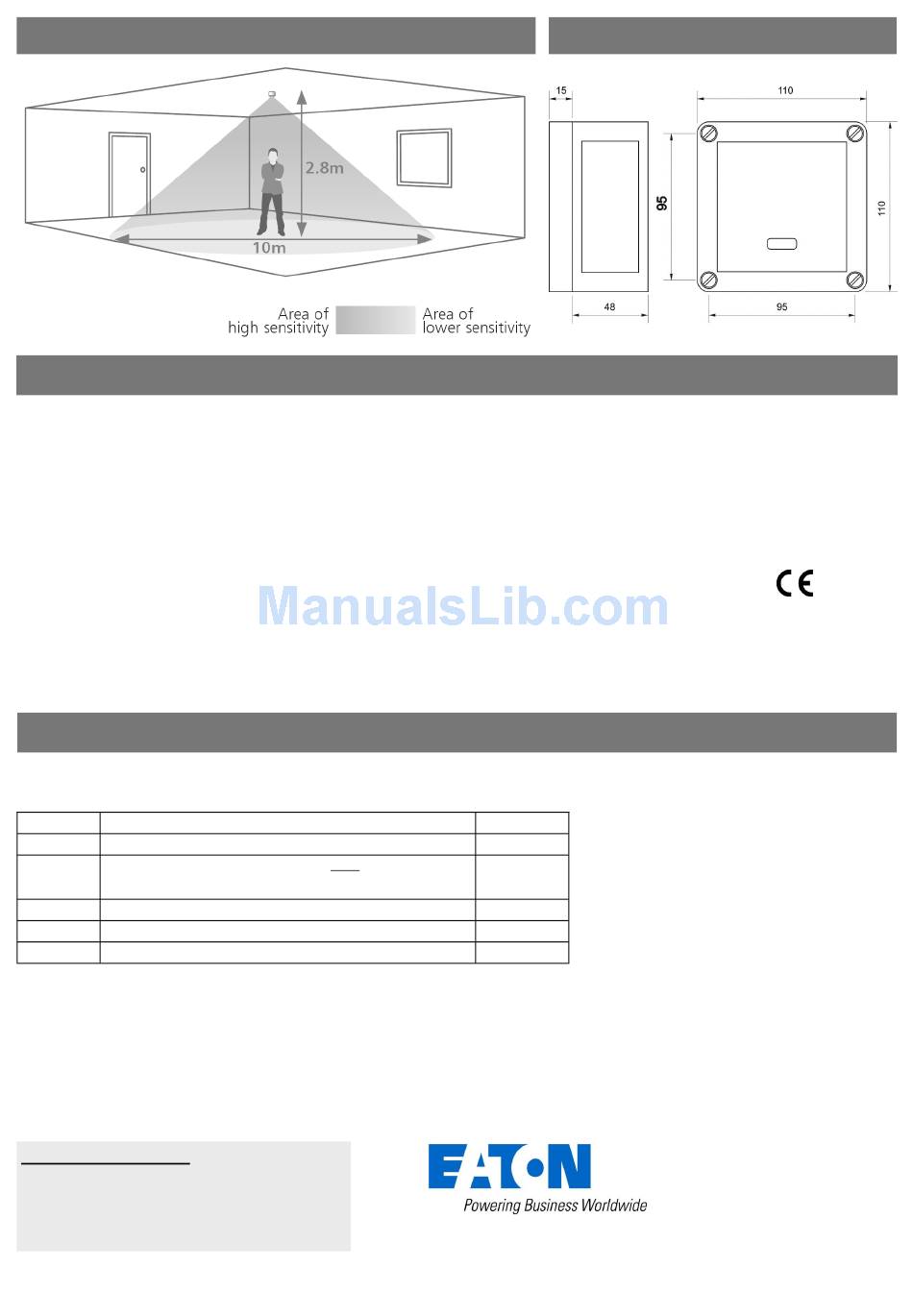

Detection pattern
Technical data
Supply Voltage
Power consumption
Weight
Terminal Capacity
Time out period
Light level
Fixing method
Temperature
Humidity
Material (casing)
IP rating
Frequency compatibility
The allowable frequency of operation of this product is different depending on region. Please select the correct order
code using the table below.
Code suffix
blank UK, China, India, Middle East, Malaysia, Hong Kong, Singapore
-R2
UK, France, Portugal, Germany, Switzerland, Austria, Slovak Republic, Republic of
-R3
-R4
-R5
IMPORTANT NOTICE!
This device should be installed by a qualified
electrician in accordance with the latest
edition of the IEE Wiring Regulations and
any applicable Building Regulations.
Due to our policy of continual product improvement we reserve the right to alter the specification of this product without prior notice.
4
Min 11.5VDC max 36VDC, min 10VAC
max 26.5VAC
On 1.01W
Off - 712mW
Load Low voltage supply with relay
output rating 16A resistive 10A inductive
0.25kg
2
2.5mm
Adjustable 10 seconds to 99 minutes.
Optional adjustment by using IR
programming handsets.
Surface fixing by screws (not supplied) .
-10ºC to 35ºC
5 to 95% non-condensing
Polystyrene Type Class 2
IP 66
Region
Australia and all of Europe except:
Ireland
France, Portugal, Switzerland
Germany, Austria, Slovak Republic
Republic of Ireland
Dimensions
Compliance
Safety
Frequency
10.687GHz
10.525GHz
9.900GHz
9.350GHz
10.41GHz
EMC-2014/30/EU
LVD-2014/35/EU
The microwave radiation emitted by these
units is extremely low power. At a distance
of > 50mm the power density is <6% of
the ANSI IEEE C95.1 –1991
recommended microwave power density.
At a distance of 5mm from the unit it is
<84% of recommended power density.
Eaton Lighting Systems
Usk House, Lakeside
Llantarnam Park,
Cwmbran, NP44 3HD, UK
Tel: +44 (0)1633 838088
Fax: +44 (0)1633 867880
lightingcontrolsolutions@eaton.com
www.eatonlightingsystems.com
Ref: 9850-000614-00
#WD861 Issue 3.0
