DT4572 X-Band Down Converter
System Operation
---------SELECT---------
---CURRENT-FAULTS-MENU--
---------SELECT---------
---STORED-FAULTS-MENU---
ENTER
------POWER-FAULTS------
15VDC=OK-14VDC-OK-VCC=OK
-INFO-LOCK-DETECT-=-OK--
REFERENCE-LOCK-DET-=-OK-
SYNTH-FAULTS:-SUM-LD=OK-
FINE-LD=OK--COARSE-LD=OK
-CONV-TEMPERATURE-=-OK--
--HIGH-SPEED-BUS-=-OK---

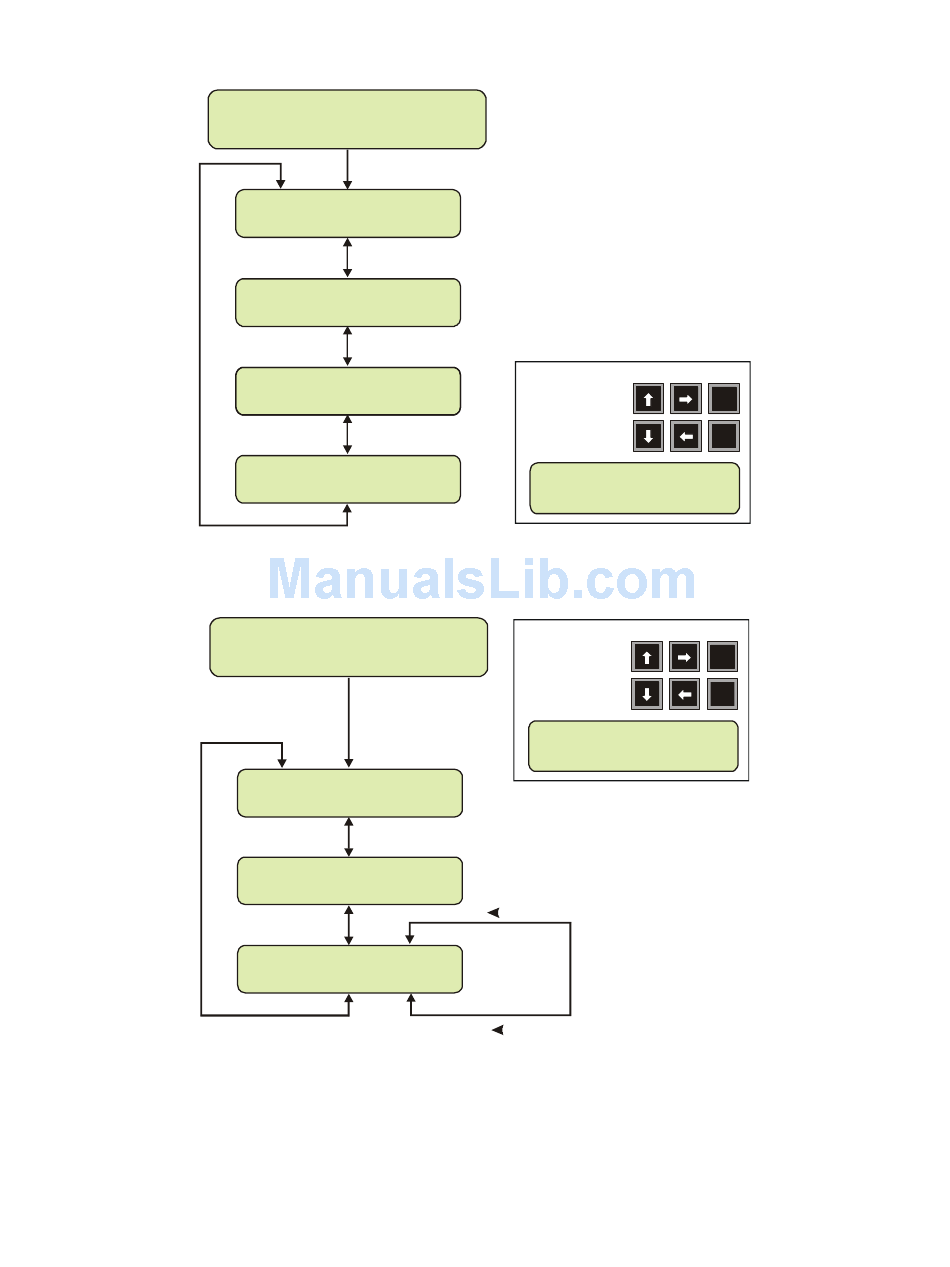

Figure 18. Current Faults Menu Commands

ENTER
TOTAL-FAULTS-STORED:--XX
LAST-19:20:05---05/19/02
----CLEAR-ALL-STORED----
-------FAULTS?-NO-------
ST-FAULT-XX-----19:20:05
OK-FINE-LOCK----05/19/02

Figure 19. Stored Faults Menu Commands

LEGEND
DISPLAY
---------SELECT---------
--MONITOR-STATUS-MENU---
LEGEND
DISPLAY
---------SELECT---------
--MONITOR-STATUS-MENU---
ENT + UP
to scroll thru
Stored Faults
CLR to return
23
MM/DT4572.IOM
KEY-PAD
ENT
CLR
KEY-PAD
ENT
CLR
Rev. 0
