Summary of Contents for Pyle Pro PHA80

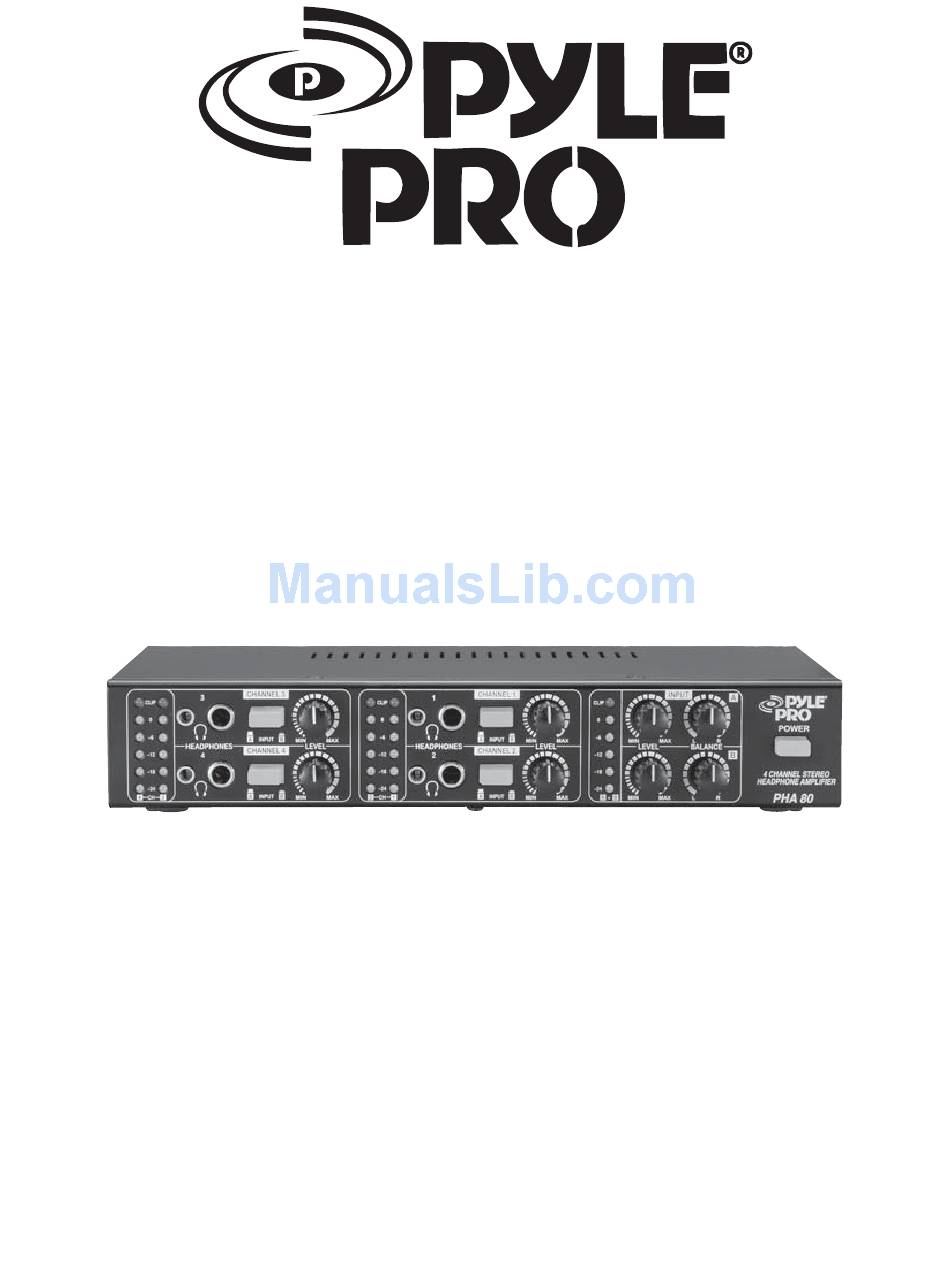

- Page 1 PHA 80 4-Channel Stereo Headphone Amplifier www.pyleaudio.com...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read Instructions — All the safety and operating instructions should be read before the appliance is operated. 2. Retain Instructions — The safety and operating instructions should be retained for future reference. 3. Heed Warnings — All warnings on the appliance and in the operating instructions should be adhered to. 4. - Page 3 Your new PYLE PRO PHA 80 Headphone Amplifier gives you the power and flexibility by using up to eight stereo headphones via 1/4" TRS jacks, four each in the front and rear, and four 3.5mm jacks, to share the monitoring audio source with other persons in a professional sound system. The Link Out A provides extra option of multiplying the system.
- Page 4 3 - Pyle Pro PHA 80 Manual...
- Page 5 CONNECTION DIAGRAM Pyle Pro PHA 80 Manual - 4...
-
Page 6: Specifications
Specifications Input Impedance ... 20k-Ohm, Balanced Input Level ... 150mV, 1 kHz Input Connector ... Stereo 1/4" TRS Jack Phones Output Impedance ... 100 Ohms Max Gain ... +13dBu @100-Ohm load S/N Ratio ... More than 95dB THD ... Less than 0.07% Link Out A ... - Page 7 Pyle Pro PHA 80 Manual - 6...
- Page 8 Your Pyle Pro Mixer is an example of superior design and craftsmanship. The following suggestions will help you care for your mixer so you can enjoy years of use: Keep the mixer dry. If it gets wet, wipe immediately. Use the mixer only in well-ventilated installations. Handle the mixer gently and carefully - do nto drop! Keep the mixer away from dust adn dirt.
