Nokia RoofTop™ Wireless Router Installation Guide
Using the NPU integrated punch down tool to connect the wires
4.

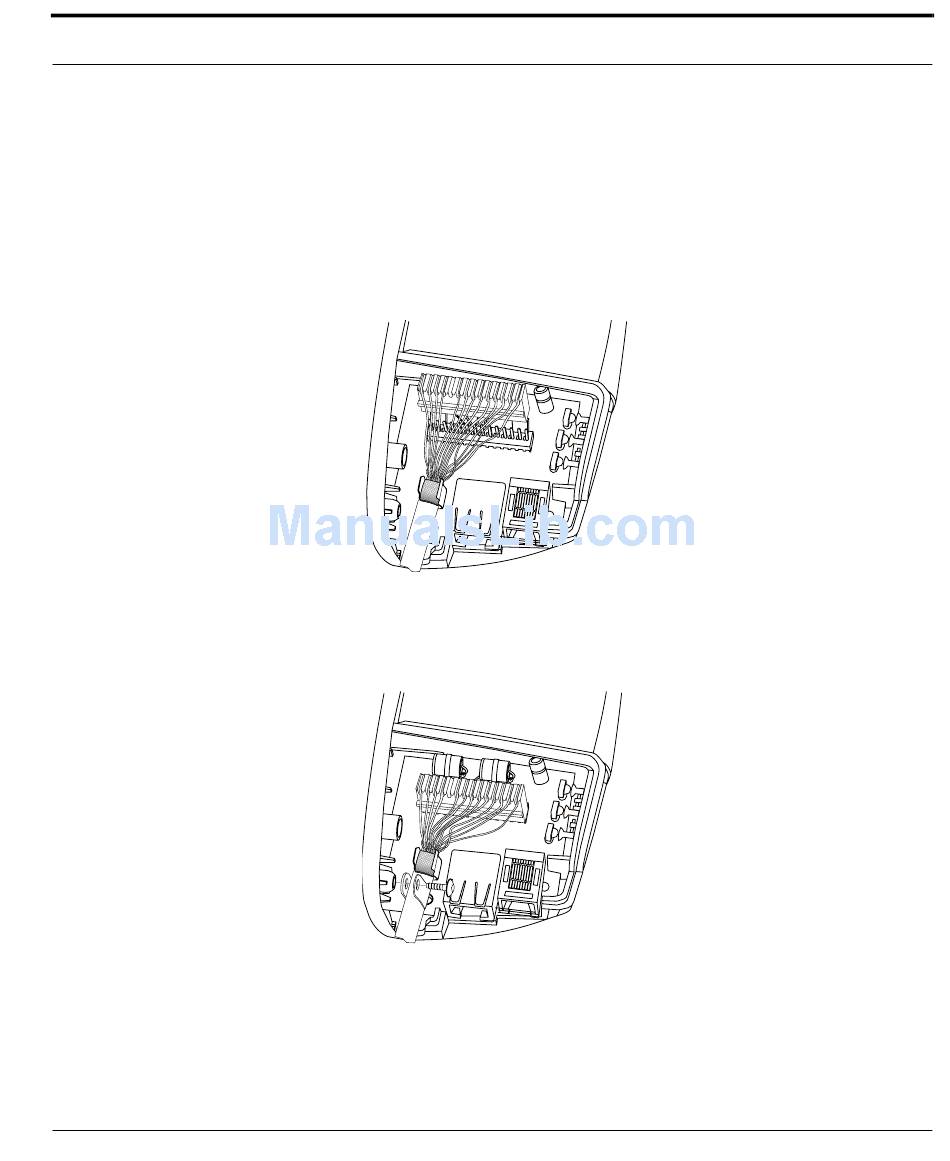

When all wires are connected securely, push the pin connector down
onto the pins inside the NPU (see picture below).
5.
Place the part of the cable with the metal braid into the ground clip
(see picture below)
.
6.
Connect the strain relief clamp in the NPU with the screw. This
prevents the multiwire cable from being pulled out.
7.
Fit the NPU cover onto the NPU and attach it with the screw. Make
sure you use the correct size screwdriver (Pz1 or Ph1). Also press the
screwdriver hard enough to avoid damaging the screwhead. Do not
overtighten the screw.
Connecting the multiwire cable
40
