Elan SPIDER WHITE User Manual

Double motorized bar with 8 10w white leds.

Download this manual

SPIDER WHITE

DOUBLE MOTORIZED BAR WITH 8 10W WHITE LEDS.

USER'S MANUAL

Thank you for purchasing our SPIDER WHITE. Please

read these instructions carefully before you begin and

operate the fixtures according to these instructions to avoid

any possible damages and accidents causes by mis-use.

Need help?

Do you have a question about the SPIDER WHITE and is the answer not in the manual?

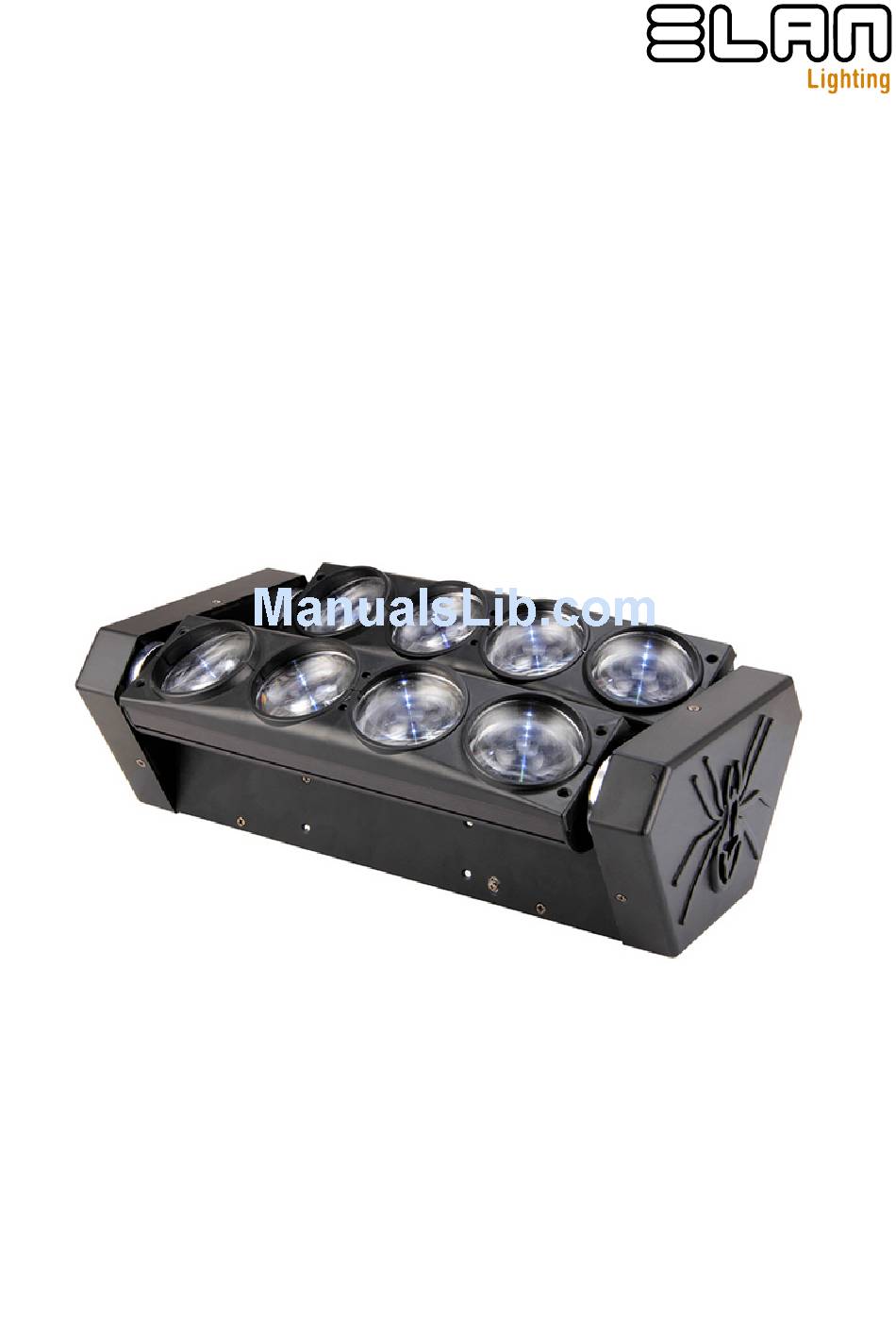

Page 1 SPIDER WHITE DOUBLE MOTORIZED BAR WITH 8 10W WHITE LEDS. USER’S MANUAL Thank you for purchasing our SPIDER WHITE. Please read these instructions carefully before you begin and operate the fixtures according to these instructions to avoid any possible damages and accidents causes by mis-use.
Page 2 Index 1. Safety Instructions ............3 2. Menu ................3 3. DMX Modes ..............4 PLEASE READ OVER THIS MANUAL BEFORE OPERATING THE LIGHT...
Page 3: Safety Instructions
1. Safety Instructions Safety Notes • Ask a skilled technician before any repair. • Always make sure the power is disconnected from the source before setting up, serving and moving. • Avoid direct eye exposure to the fixture when it is on. Safety instructions •...
Page 4: Dmx Modes
3. DMX MODES Motor 1 0---255 60°-------150° Motor 2 0---255 60°-------150° Dimmer 0---255 0-------100% 10—255 Strobe with in- Strobe 0---9 Black out, creasing speed 0—7 Black out 8----17 No: 1 18----27 No: 2 28----37 No: 3 38----47 No: 4 48----57 No: 5 58----67 No: 6...
Page 5 12CH Motor1 0---255 60°-------150° Motor2 0---255 60°-------150° Dimmer 0---255 0-------100% Strobe 0---9 Black out 10—255 Strobe with increasing speed LED1 0---255 0----100% LED2 0---255 0----100% LED3 0---255 0----100% LED4 0---255 0----100% LED5 0---255 0----100% LED6 0---255 0----100% LED7 0---255 0----100% LED8 0---255 0----100%...
