3.2.8 Pull out the plastic cup holder and place one of the cups from the tool box into the holder.
This will collect any chocolate waste.
Close the print head cover and press the ↓ key several times to check if the chocolate is
3.2.9
being successfully squeezed out or not. After the chocolate stops dripping, press Drop
Retraction

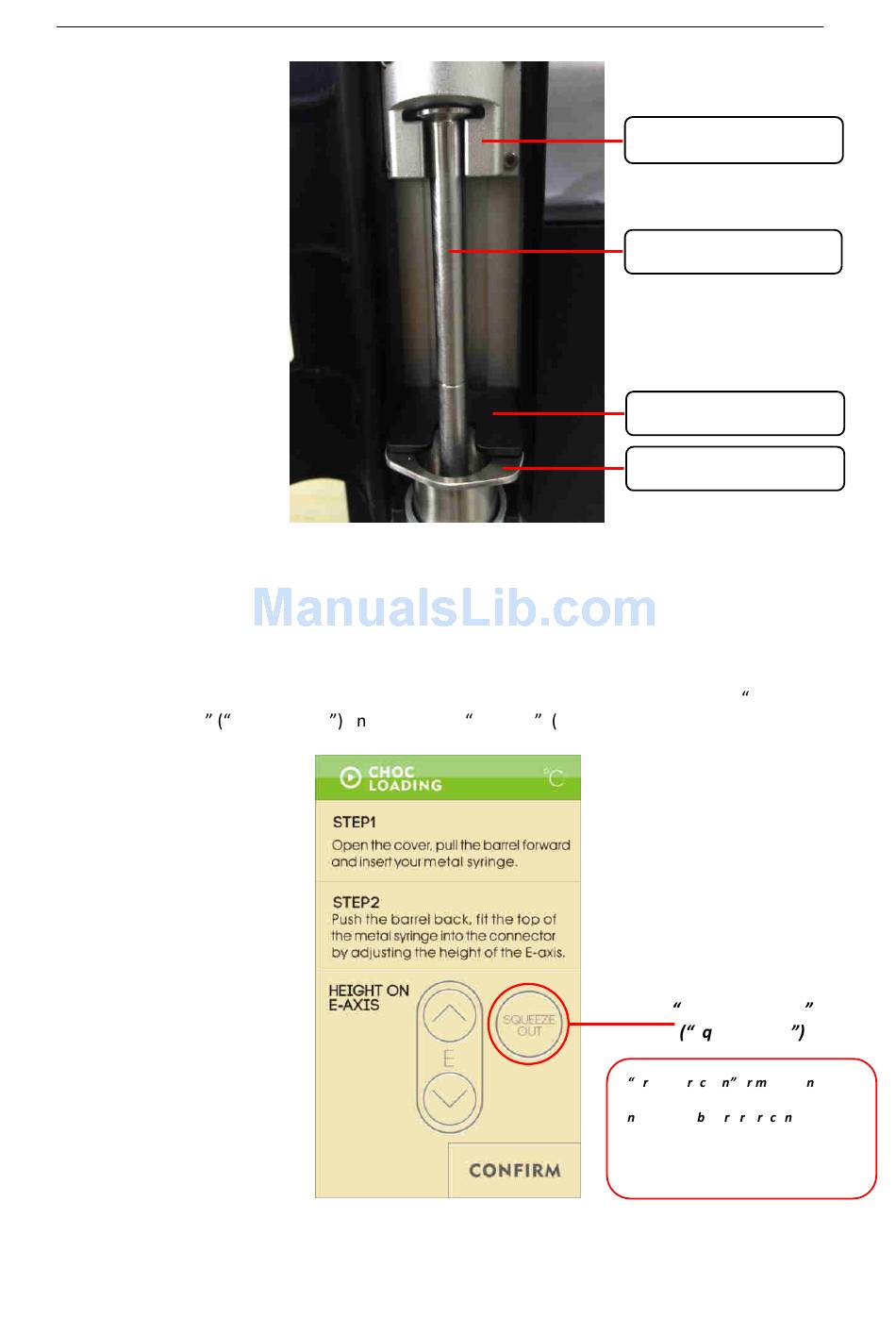

Figure 3.2.7
Squeeze Out a d then press Confirm . "ee Figure 3.2.9 below)
Figure 3.2.9
E-axis (connector)
Syringe Rod (Piston)
Flange Connector
Flange (of syringe)
Drop Retraction
" ueeze Out
D op Ret a tio p i es the ozzle
by pushing the chocolate towards the
ozzle's tip efo e et a ti g to the
value of 0.5mm.
Depending on requirements, it can be
pressed once, twice or not at all.
