Adding Legacy Switches

You can add legacy switches to the AutoView 2000 system for easy integration into your existing
configuration. In a cascaded system, each ARI port will accommodate up to 24 servers. See the
following table for legacy switches compatible with the AutoView 2000 switch system.
Table 2.1: Legacy Switch Support
Legacy Product
OutLook ES switch
AutoView switch
AVRIQ Module
PS/2, USB, Sun and serial
cables are available

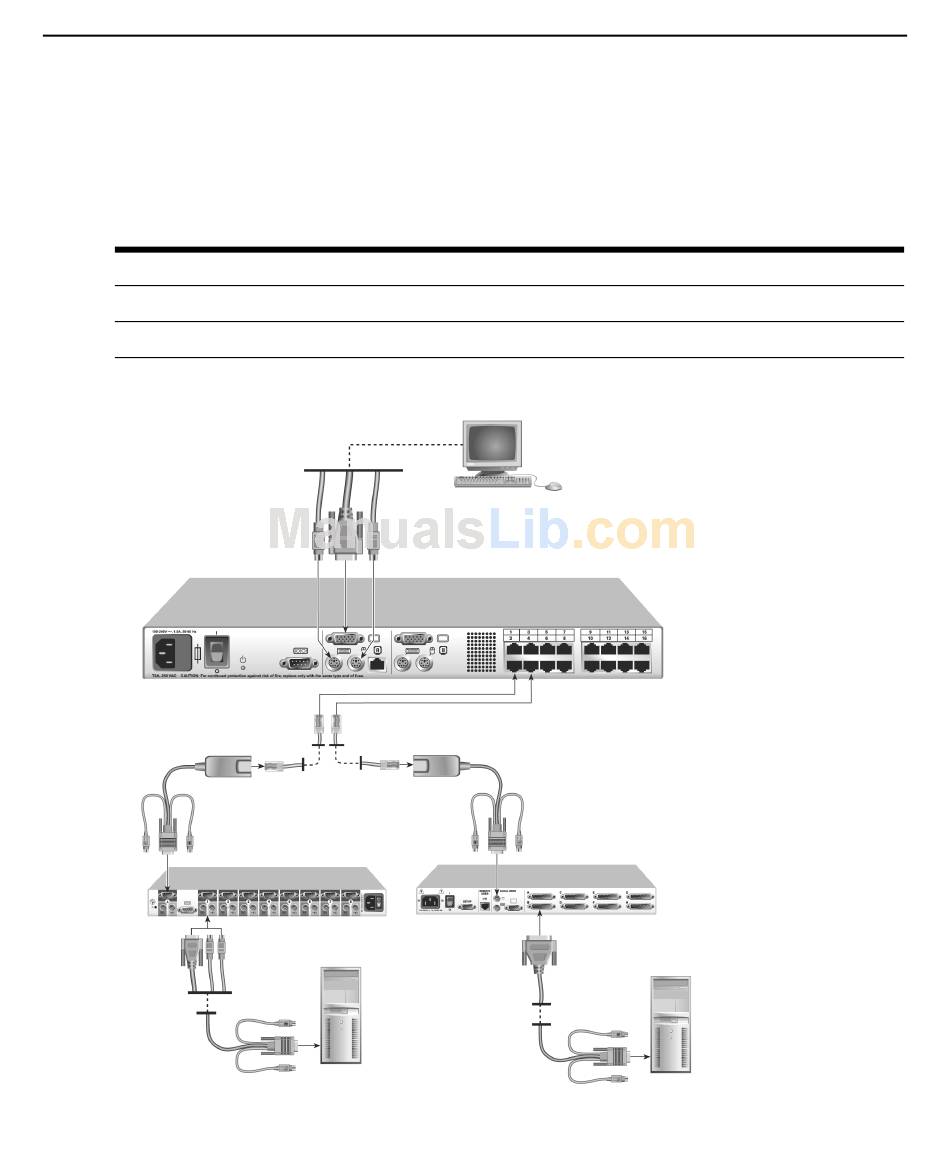

Figure 2.4: AutoView 2000 Switch Configuration with a Legacy KVM Switch

Model Numbers
140ES, 180ES, 280ES, 1160ES, 2160ES, 4160ES
AV200-4, AV200-8, AV400-4, AV400-8, AV416, AV424
AVRIQ Module
OutLook ES Switch
Server 1
Local Analog User A
AutoView 2000 Switch
AutoView 200/400 Switch
Server 2
