Trigger connection

A unit is equipped with Trigger Output and Trigger Input sockets (jack 2.5mm, 12V) to turn on/off a Pro-Ject
product with trigger sockets. A 45cm long trigger cable (polarity
cables are available as accessories. The remote power-on signal can be relayed to further units via the
Trigger Output socket.

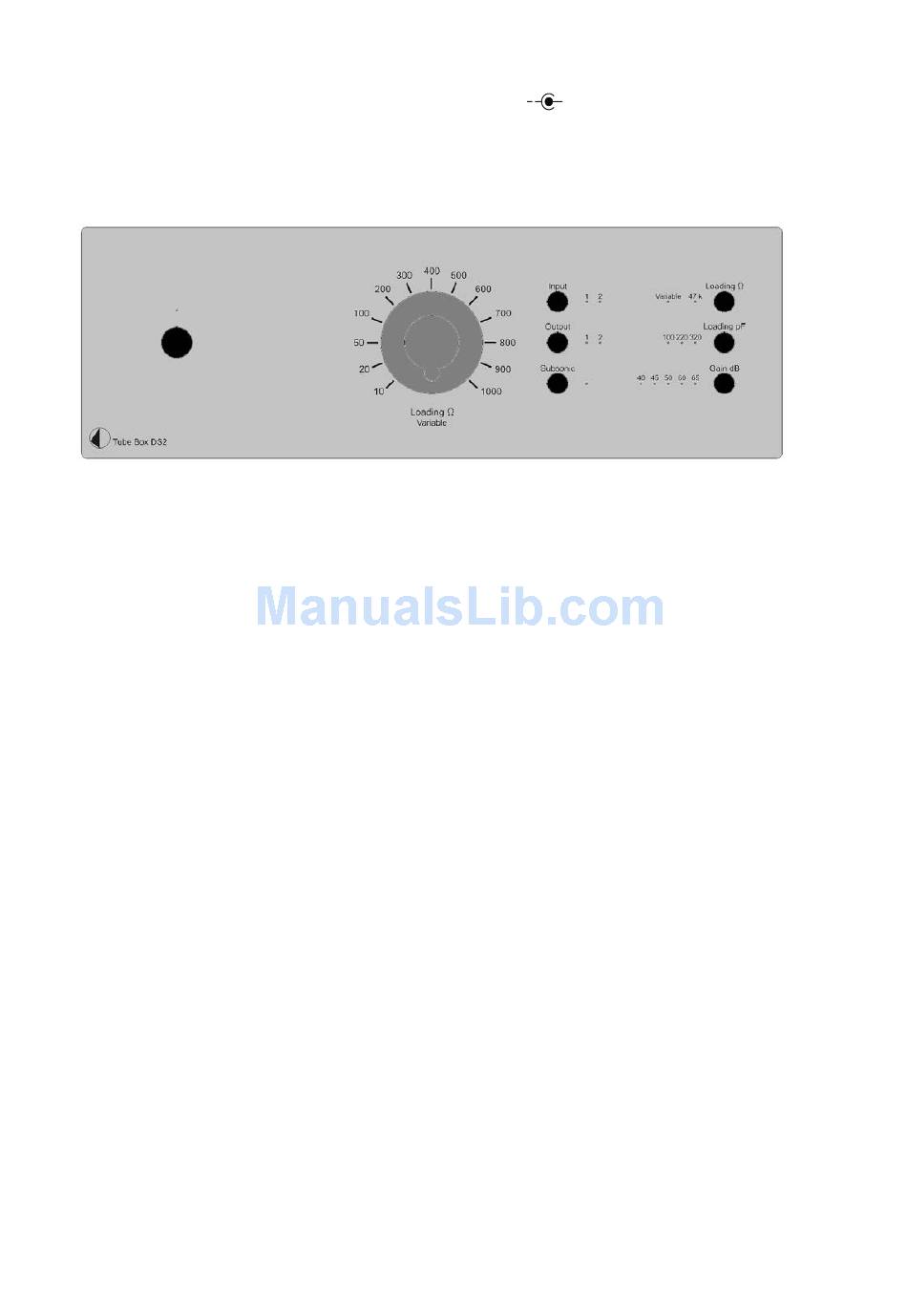

Controls

To switch on from standby or to standby
The switch on the left hand side of the front panel turns the unit on or back into standby. The blue LED above
the stand-by switch shows that the unit is switched on. Tube Box DS2 can be used immediately.

Settings

Use the buttons and the rotary control at the front to control the unit. Any change of settings will be
automatically stored for the chosen input, when input is changed or the unit is switched into standby mode.

Input and Output

Tube Box DS2 has two separate inputs and outputs. The button Input selects between inputs and the button
Output switches between outputs.

Subsonic

Turn on and off subsonic filter. Any change will be automatically stored for the chosen input, when input is
changed or the unit is switched into standby mode.

Gain dB

Gain for the outputs can be set from 40dB to 65dB in steps of 5dB or 10dB. Any change will be
automatically stored for the chosen input, when input is changed or the unit is switched into standby mode.
© Pro-Ject Audio Systems · Pro-Ject Tube Box DS2 · Revision 2016.9.21
+
) is supplied for this purpose. Longer
