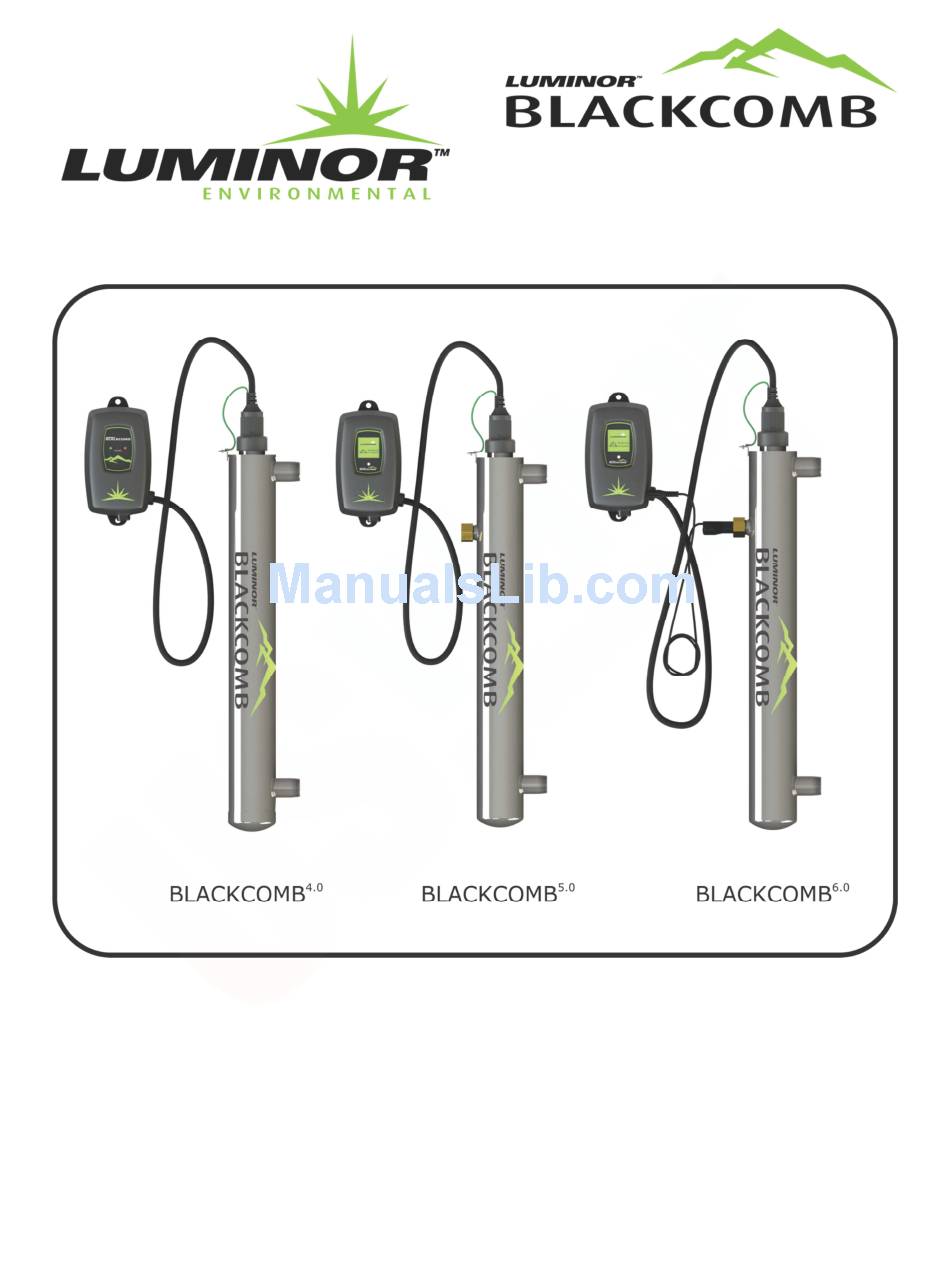

- Page 1 OWNERS MANUAL Operation & Installation Instructions LB4-031/2, LB4-061/2, LB4-101/2, LB4-201/2, LB5-031/2, LB5-061/2, LB5-101/2, LB5-201/2, LB6-061/2, LB6-101/2, LB6-201/2 illuminating technologies for life...
- Page 2 Congratulations on purchasing this ultraviolet disinfection system. By purchasing a LUMINOR UV Disinfection system you are receiving not only a high quality product but also peace of mind. Protecting your water supply with a UV system gives you reassurance that your family will have access to safe drinking water throughout your entire home with no chance of microbiological contamination.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Safety Considerations ..........................Page 4 Before You Begin ........................... Page 4 Water Quality Parameters ........................Page 4 Assembly ..............................Page 5 System Sizing ............................Page 6 Location ..............................Page 6 Installation ............................. Page 6 System Disinfection ..........................Page 10 System Disinfection .......................... -
Page 4: Safety Considerations
It is imperative that you have your water tested for at the least the parameters listed below. If the water exceeds the listed parameters LUMINOR strongly recommends that appropriate pretreatment equipment be installed (pretreatment will depend on parameters being treated):... -
Page 5: Assembly
You can have your water tested at a private analytical laboratory or by your local dealer. It is always recommended to install pre-filtration of at least 5 microns prior to a LUMINOR UV disinfection system. Assembly: Step 1: Unpack the system and ensure all the components are included with the system. Your system is shipped... -
Page 6: System Sizing
System Sizing: All LUMINOR UV systems are rated for a specific flow rate under specific water quality parameters. The equipment has been designed to ensure that the appropriate dose will be delivered provided all parameters are followed. PLEASE NOTE that the flow rate for each system can be higher or lower than what the system is rated for however this will change the dose level that the system will deliver. -
Page 7: Installation
Point of Use (POU) the system should be the final step before the faucet. Step 2: LUMINOR strongly recommends that a 5 micron filter be installed before the UV system for a final polishing step before the water is disinfected. - Page 8 recommended method only however it allows for the maximum convenience but it requires extra components and more time for installation. Please refer to Figure 3 for the recommended installation. Figure 3. Recommended Installation Step 7: Before you cut into the cold water line, measure and cut all piping as per the recommended layout. Once all the components are ready, start by installing the female adapters onto the ports of the reactor.
- Page 9 LUMI-Loc™ connector to create the proper lamp alignment. PLEASE NOTE: DO NOT install a UV lamp inside the quartz sleeve without the sleeve spring in place. Step 11: (Applies only if you have a UV sensor…BLACKCOMB ) The UV sensor for the system is packaged in a separate plastic bag.
-
Page 10: System Disinfection
Step 15: Carefully insert the UV lamp into the reactor sliding it inside the quartz sleeve located inside the reactor (do not drop the lamp into the reactor). Affix the LUMI-Loc™ connector into the gland nut by inserting the connector into the nut and turning the connector approximately ¼ turn to lock the connector to the gland nut. Figure 8. -
Page 11: Cleaning
Step 4: After 30 minutes, reinstall the filter cartridge into the filter sump and then flush the chlorine solution by opening all faucets and let them run until chlorine can no longer be detected (by smell). Your home has now been completely disinfected with your LUMINOR BLACKCOMB UV system ready to inactivate any microorganisms that enter the home. -
Page 12: Operation (4.0 Controller Overview)
Step 7: Replace sensor as per instructions on pages 8-9 of the manual Operation: The LUMINOR BLACKCOMB system comes with a feature laden controller that incorporates both the lamp driver (ballast) and control features in one water-tight case. Two controllers are available for the BLACKCOMB systems (depending on your model). - Page 13 disinfection procedure as outlined in this manual before the water is consumed. It should also be noted that even though this system has a visual and audible warning built into the controller, the green LED does not necessarily indicate that the water coming from this system is in fact potable (safe to drink).
- Page 14 Solenoid Module Check 4-20 mA Module Check Ethernet Module Check Remote Alarm Module Check Once the controller has finished checking for the installation of all available modules a single screen is displayed showing which specific modules are installed and activated on this particular system. Please Note: If the corresponding module icon is not displayed on this screen, then that module is not installed on this system.
-
Page 15: Operation (5.0 & 6.0 Controller Overview)
(without the UV monitor), the default screen shows the LUMINOR Home Screen. At any point during operation the user is able to scroll through the LUMINOR Home Screen, Lamp life remaining and QR Code/Contact Info screens by simply pressing the button located on the front of the controller. - Page 16 a constant audible signal is provided. The screens alternate between this solid red screen and another screen indicating “water may be unsafe for consumption”. At this point, the controller also provides a signal to de-activate the solenoid valve, shutting off the flow of water if a solenoid valve is installed on the system. BLACKCOMB &...
- Page 17 BLACKCOMB & BLACKCOMB Lamp Countdown Reset Sequence After changing the lamp on the BLACKCOMB & BLACKCOMB systems, the controller must be reset in order for the system to begin its countdown function on the newly installed lamp. To perform this reset, you must firmly depress the button on the front of the controller and then manually plug the power cord back into the wall outlet initiating power to the unit.
-
Page 18: Expansion Modules
A QR code (abbreviated from Quick Response code) is a type of matrix barcode (or two-dimensional code) first designed for the automotive industry. LUMINOR uses the QR code to store a link to a specific page on our website. Users with a camera phone equipped with the correct reader application can scan the image of the QR code and over a wireless network connect to a LUMINOR web page in the cellular's browser. - Page 19 The following optional expansion modules are available for use on your BLACKCOMB and BLACKCOMB controllers. Contact your authorized distributor for purchasing information. REMOTE ALARM MODULE: Allows for a signal to be connected to a remote monitor such as a buzzer, light, alarm system, PLC, etc., via a pair of contacts.
-
Page 20: Warranty Registration
Please refer to LUMINOR’s Privacy Policy statement at http://www.luminoruv.com/main_copyright.php for further information. -
Page 21: Blackcomb 5.0 Specifications
Visual Lamp-Out Indicator Audible Lamp-Out Alarm 3.5 kg. 4.0 kg. 6.6 kg. 7.3 kg. Shipping Weight (7.7 lbs.) (8.9 lbs.) (14.6 lbs.) (16.1 lbs.) LUMINOR EQUIPMENT SPECIFICATIONS BLACKCOMB , Residential UV systems, modular non-monitored LB5- LB5- MODEL LB5-031 LB5-032 LB5-061 LB5-101 LB5-102 LB5-201 6.1 GPM... - Page 22 Audible Lamp-Out Alarm 3.5 kg. 4.0 kg. 6.6 kg. 7.3 kg. Shipping Weight (7.7 lbs.) (8.9 lbs.) (14.6 lbs.) (16.1 lbs.) LUMINOR EQUIPMENT SPECIFICATIONS BLACKCOMB , Residential UV systems, UV monitored LB6- LB6- LB6- LB6- MODEL LB6-111 LB6-212 11.0 GPM 20 GPM 39.2 GPM...
-
Page 23: Limited Warranty Statement
(16.5 lbs.) Limited Warranty Statement: Products manufactured by LUMINOR Environmental Inc., (LUMINOR) are warranted to the original user only to be free of defects in material and workmanship for a period as specified below. This warranty only applies to the original purchaser and is not transferable. - Page 24 Products which are sold but not manufactured by LUMINOR are subject to the warranty provided by the manufacturer of said products and not by LUMINOR’s warranty. LUMINOR will not be liable for damage or wear to products caused by abnormal operating conditions, accident, abuse, misuse, unauthorized alteration or repair, or if the product was not installed in accordance with LUMINOR’s printed installation and operating instructions.
- Page 25 Unless otherwise provided, the Dealer or Distributor will contact LUMINOR for instructions on returning the product. Any defective product to be returned to LUMINOR must be sent freight prepaid; documentation supporting the warranty claim and/or a Return Material Authorization must be included if so instructed.
- Page 26 illuminating technologies for life 290 Southgate Drive, Unit 2 Guelph, Ontario, CANADA N1G 4P5 P: 519-837-3801 TF: 855-837-3801 F: 519-837-3808 info@luminoruv.com www.luminoruv.com 26 | P a g e...
