Dynojet POWER COMMANDER V Installation Instructions Manual page 5

FIG.G FIG.
PCV connector
FIG.H
Unplug
FIG.I
PCV connector
I17-045
PCV connector
PCV connector
www.powercommander.com

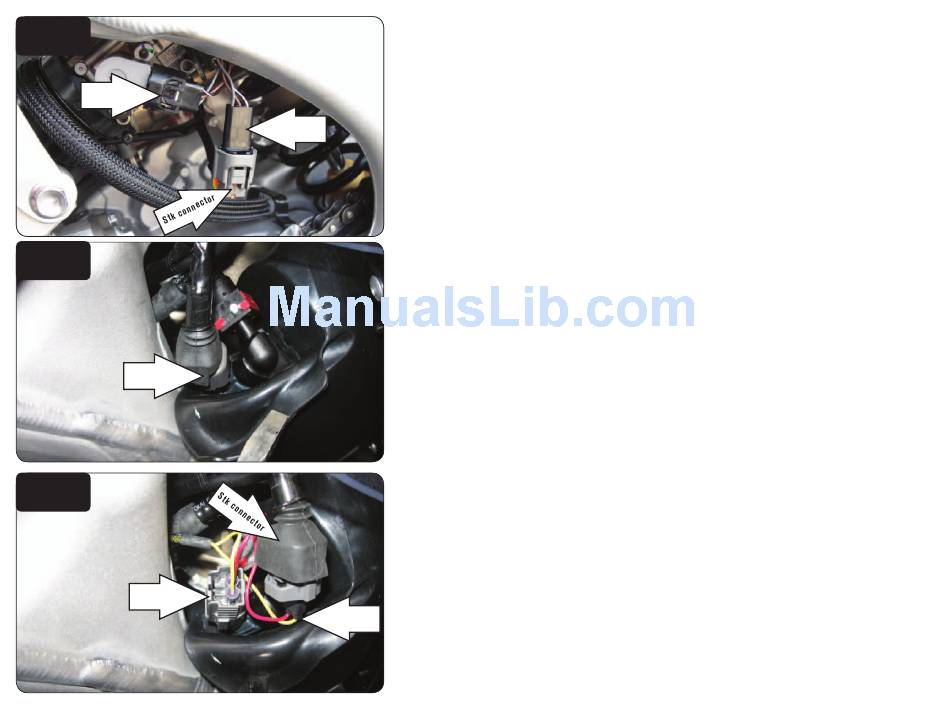

10 Plug the PCV connectors in-line of the stock wiring harness and throttle body
(Fig. G).
11 Locate the secondary fuel injector in the intake duct, behind the rubber flap, on
the left side of the bike, to the rear of the frame rail (Fig. H).
12 Plug the PCV connectors with the YELLOW colored wires in-line of the stock
wiring harness and the secondary fuel injector (Fig. I).
2013 Kawasaki KX250F PCV - 5
