5. APPENDIX

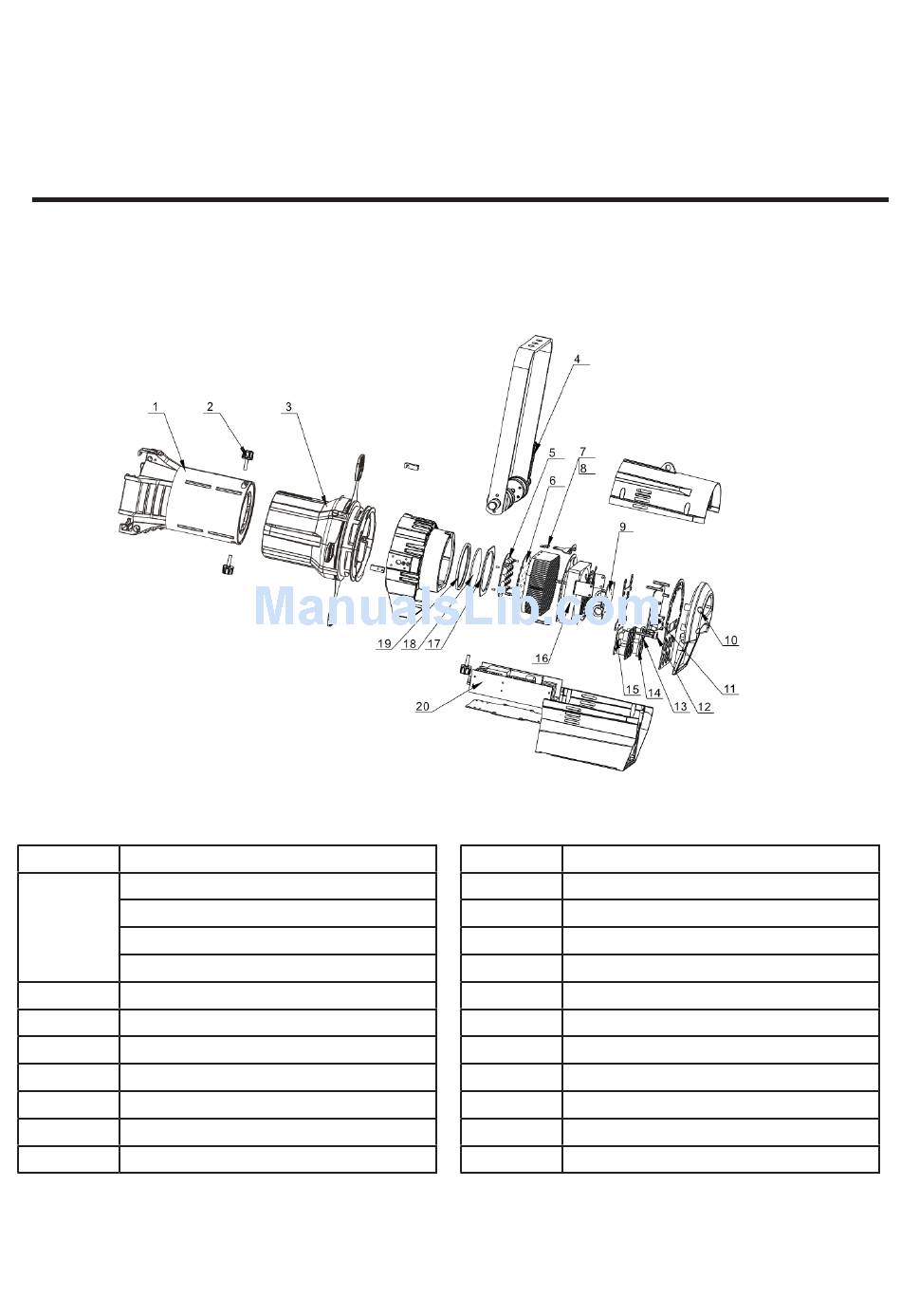

PARTS DIAGRAM
NO
1
Focus tube components (19° ED)
Focus tube components (26° ED)
Focus tube components (36° ED)
Focus tube components (50° ED)
2
3
Light tube components
4
5
15 degree lens (19 in 1)
6
7
Thermal switch holder
8
ITEM
Handwring screw
M10 hand shak
LED board
Thermal switch
9
Dirver board
10
Afterbody plastic handle
11
12
13
PS socket (male)
14
PS socket (male)
15
Adaptor PCB
16
17
92 lens fixed cover
18
19
92 lens fixed cover
20
Power supply
Display PCB
Fuse holder
Fan
92 convex 1
P. 9
English version
