Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide

1 Structure

1.1 Device External Cable

Note:
The following figure is for reference only, which is used to know the functions of cable ports.
Different devices may have different cables, please refer to the actual product for more details.
Please refer to the following sheet for detailed information.
No. Port
1
VIDEO OUT
2
AUDIO IN
3
AUDIO OUT
4
LAN
5 I/O

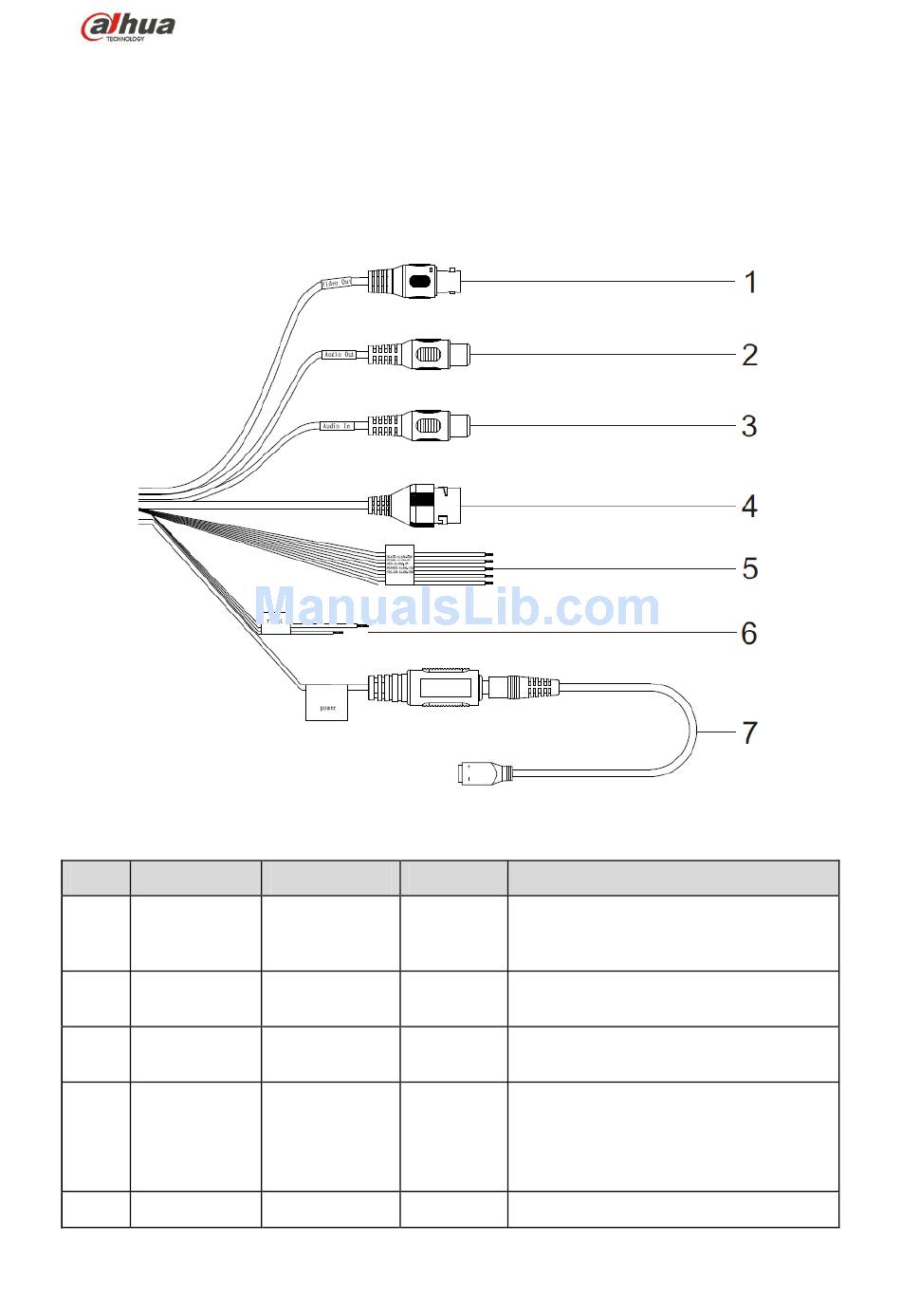

Figure 1-1
Port Name Connector
Video output
BNC
port
Audio input
RCA
port
Audio output
RCA
port
Ethernet
Network port
port
I/O port
-
Function Description
Output analog video signal. It can
connect to the TV monitor to view the
video.
Input audio signal. It can receive the
analog audio signal from the pickup.
Output audio signal to the devices such
as the sound box.
Connect to standard Ethernet cable.
Note:
Some series products don't support
PoE.
Include alarm input and output.
