Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide

Insert the SD card into the card slot shown in Figure 2-2, the card slot is elastic, press the
SD card lightly and it can be embedded.

Motorized vari-focal lens is the default accessories for the motorized vari-focal series device,
it doesn't need manual adjustment, it supports five-direction button adjustment at the same
time; manual vari-focal lens is the default accessories for the manual vari-focal series device,
it needs to adjust manually according to the scene. See Figure 2-2 for more details.

Press reset button for 4-5 seconds to realize the device reset function, see Figure 2-2 for
more details.

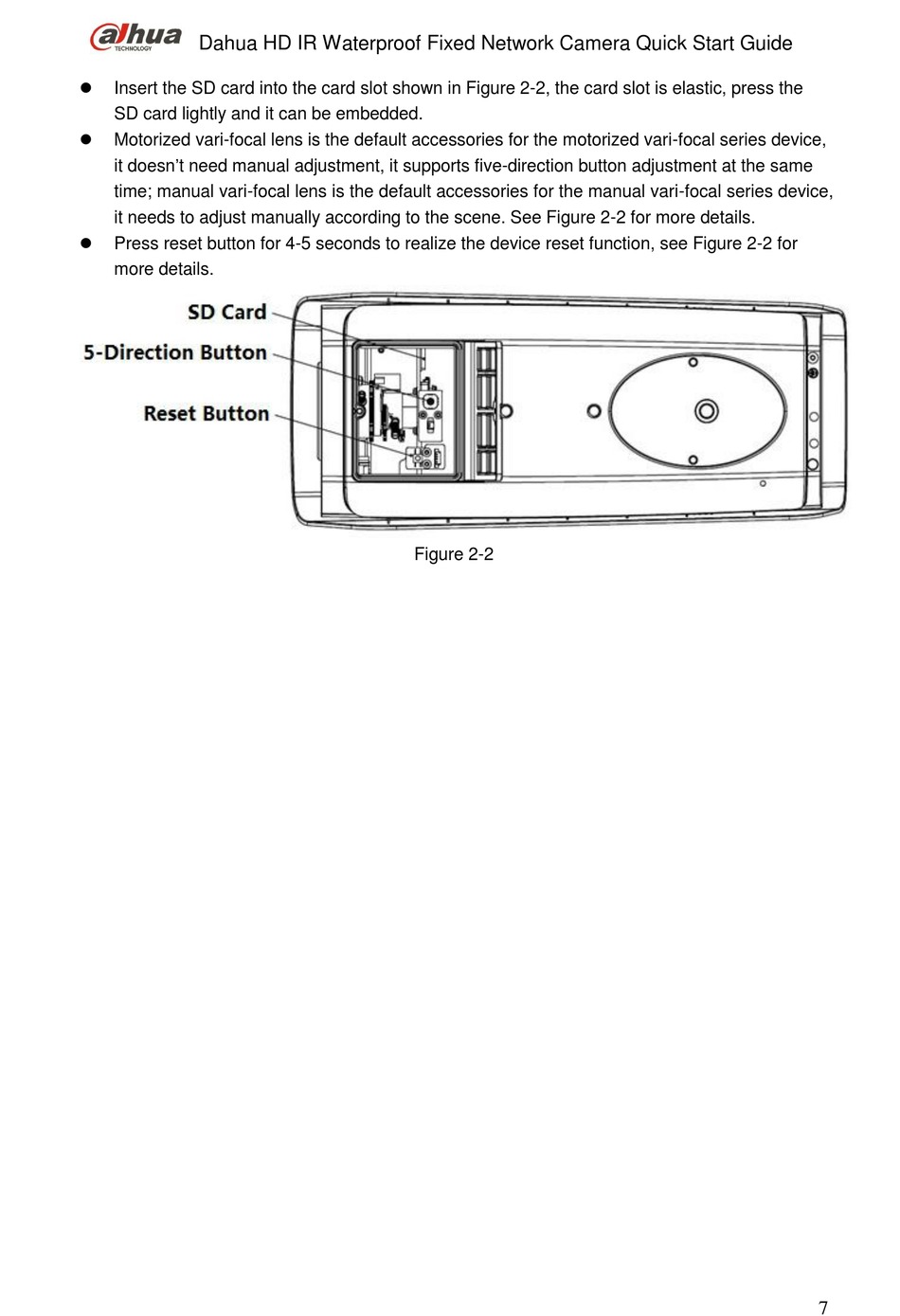

Figure 2-2
7
