PNP Assembly instructions
Main wing Installation
Flap
Landing gear
Aileron
Step@

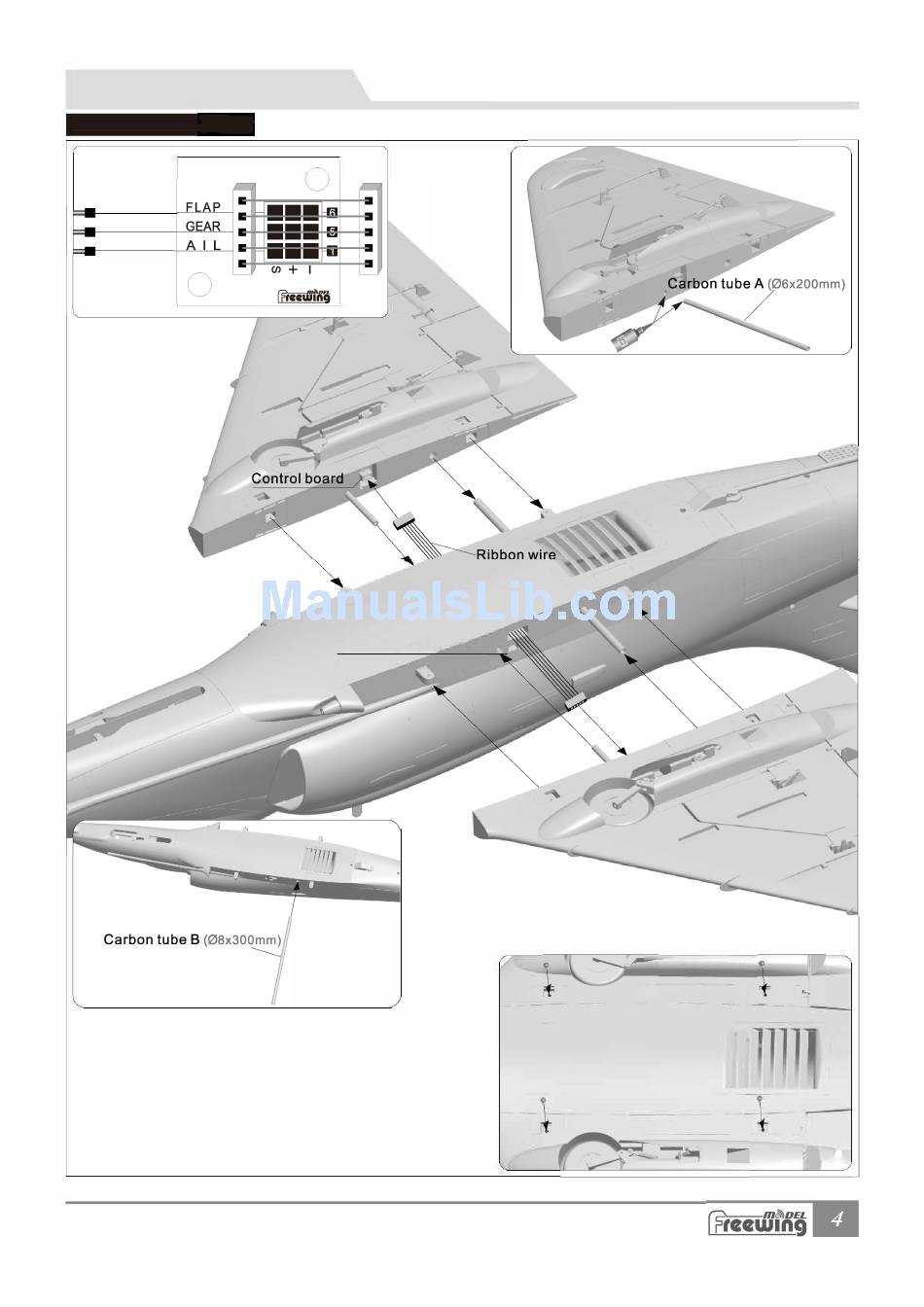

Referring to the Photo:
1.Apply glue to one end of carbon tube A, and insert the
glued end into the main wing, ensuring both sides of the
exposed rod are equal in length.
2.lnsert carbon tube B through the fuselage, do not use
glue if you wish to be able to remove the wings.
3.lnsert the ribbon wire to the control board, then install
the left/right main wing to the fuselage.
4.Use 4 screws to fix the main wing.
A-4Skyhawk
Item No.:FJ213
Main wing trough port/-
Screws
(PWM3x6
4pcs)
/
EN
StepQ
Step@)
