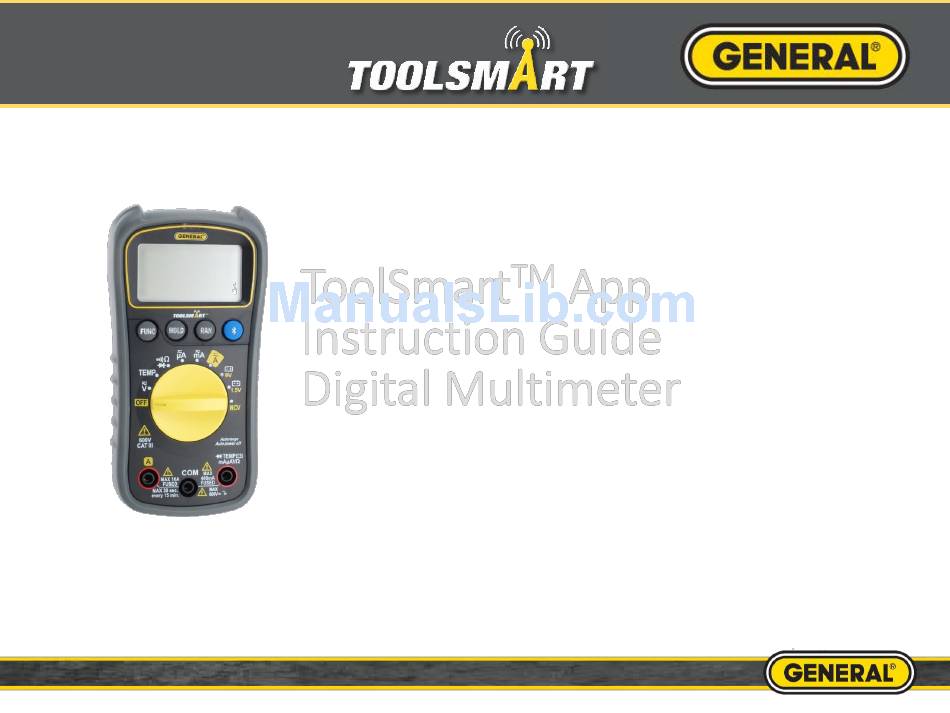

Page 1: Digital Multimeter
ToolSmart Instruction Guide Digital Multimeter Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com... - Page 2 Multimeter Pairing Press the Bluetooth button to turn on Bluetooth. Device will beep and “B” will appear solid on screen. Turn the yellow dial to Tap Toolbox Tap DMM Tap Connect Wait for turn on device. button button phone and DMM to pair...
- Page 3 Multimeter Dashboard Upon connecting, data will automatically stream to your phone As you turn the dial on the multimeter, Press the save button to Set upper and lower limits to quickly tell the app screen automatically adjusts to store the data if your measurement is out of range display the current function...
- Page 4 Multimeter Ohm’s Law Calculator Press the calculator Click and drag the measurements from View the button the data bank below. Drop them in the results above fields. Fill in any two and the third will calculate automatically. Values can also be manually typed into these fields. Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com...
- Page 5 Multimeter Average Temperature Calculator Select how many temperatures you would like to average Press the calculator Click and drag the measurements from View the button the data bank below. Drop them in the results above fields. Values can also be manually typed into these fields.
- Page 6 Taking a Picture for Multimeter From the dashboard, tap You could elect to take a When taking a photo, tap the circular Finally choose whether to the camera button in the new photo or choose capture button on the bottom center keep the photo that was bottom center of the one from your phone’s...
- Page 7 Multimeter Picture Gallery Tap the button on the bottom center From the Tap the photo you Tap somewhere on the When all measurements to display your previously logged dashboard, tap the would like to add picture to place a box are finalized, save your measurements.
- Page 8 Universal App Settings Click the Hamburger Tap the settings button From here, you can change the units of Menu (triple bar button) measurement (which applies to all tools), at the top left corner of have the captured images save to the the page.
