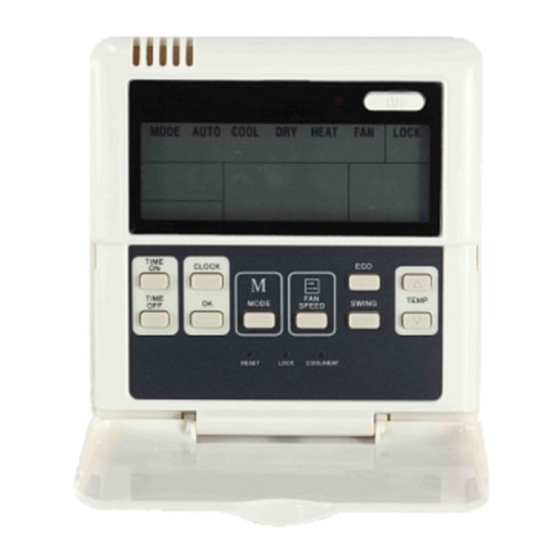

- Page 1 WIRED REMOTE CONTROLLER Owner’s Manual MODEL: KJR-12B/DP(T)-F-1 KJR-12B/DP(T)-E-1A KJR-12B/DP(T)-E-2 IMPORTANT NOTE: Read this manual carefully before installing or operating your wired remote controller. Make sure to save this manual for future reference.
-
Page 2: Remote Control Buttons
Remote Control Buttons Table of Contents M O D E B U T T O N O N / O F F B U T T O N • Used to start/stop the air conditioner. • Used to select the operating mode AUTO COOL DRY HEAT FAN →... - Page 3 WARNING M O D E B U T T O N O N / O F F B U T T O N • Used to start/stop the air conditioner. • Used to select the operating mode DO NOT remove the cover or touch the interior parts •...
-
Page 4: Lcd Screen
Basic Functions LCD Screen The following are instructions for using your air conditioner’ s basic functions. Operation mode Follow me Displays the selected AUTO Function Displayed when the operating mode FOLLOW ME feature is In AUTO mode, the unit will automatically select the COOL, activated HEAT, FAN or DRY function based on the set temperature. - Page 5 COOL/HEAT/FAN Function DRY Function 1 Press the MODE button to select COOL, HEAT or FAN. 1 Press the MODE button, select DRY. 2 Set your desired temperature using the UP ( ) and DOWN 2 Set your desired temperature using the UP ( ) and DOWN ( ) buttons.
-
Page 6: Follow Me Function
FOLLOW ME Function Setting Air Flow Direction The FOLLOW ME function enables the remote control to 1 Press the SWING button to activate the swing function. measure the temperature at its current location. When using Press this button again to set the louver in the position AUTO, COOL, or HEAT functions, measuring ambient you want. -
Page 7: Timer Off Function
TIMER Function Example Setting unit to turn on after 2.5 hours Your air conditioning unit has two timer-related functions: TIMER TIMER TIMER ON – sets the amount of time after which the • unit will automatically turn on. (Delayed on) TIMER OFF –... - Page 8 Setting both TIMER ON and TIMER OFF at the same time (Combined Timer Function) Keep in mind that the time periods you set for both functions TIMER TIMER refer to hours after the current time. For example, say that the current time is 1:00 PM, and you want the unit to turn on automatically at 7:00 PM.
-
Page 9: Troubleshoot Your Remote Control
The unit will now turn on after 6 hours (7:00 PM) and turn off Troubleshoot Your Remote Control again after 8 hours (9:00 PM). (See Fig. 11) Your remote display Symptoms Possible Causes Solution In AUTO mode, the fan speed is Check whether AUTO set automatically and cannot be mode is selected. - Page 10 QSXU-008AEN The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. For Further Details, please go to: www.highseer.com 16117100000240 20160303...
