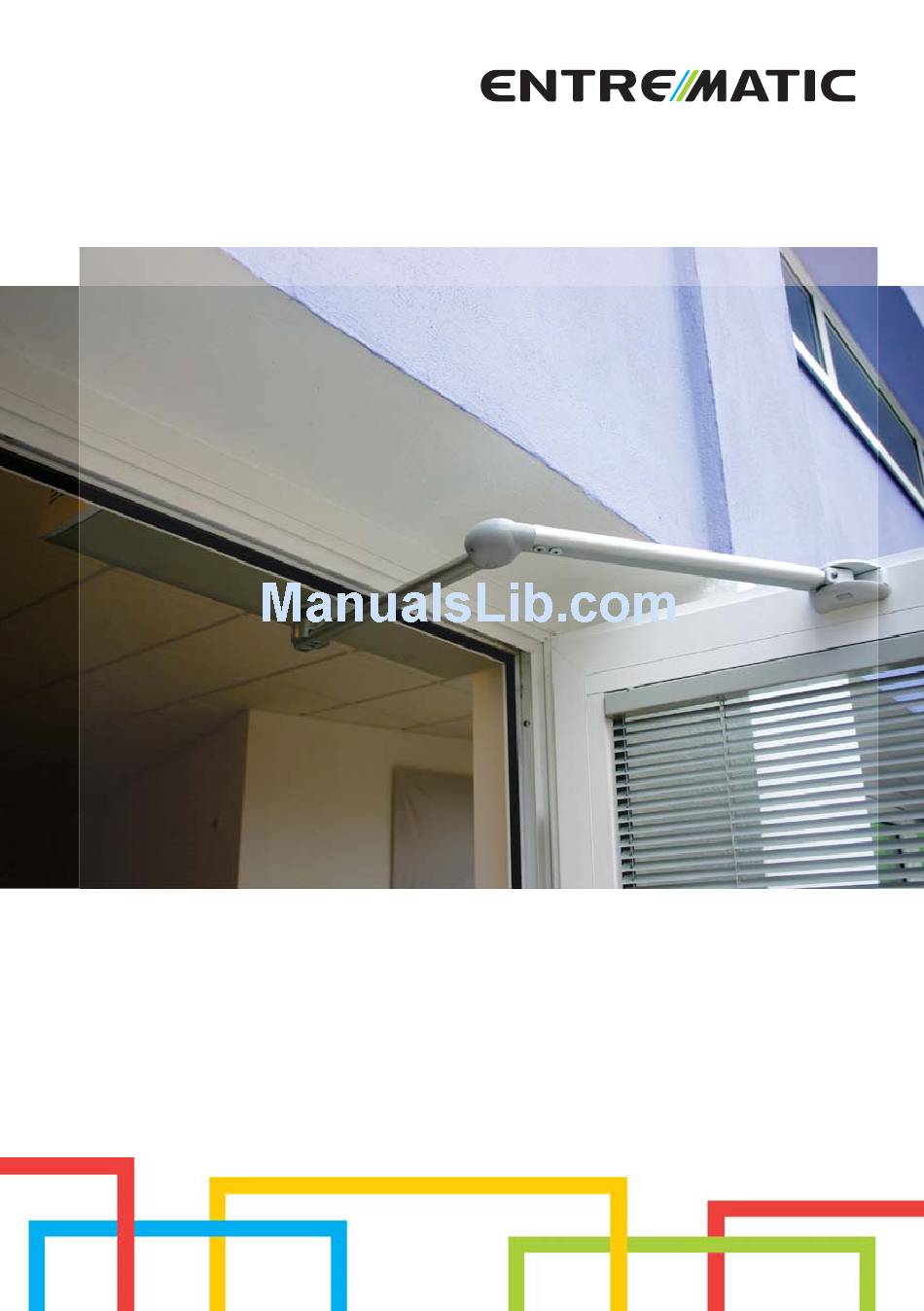

- Page 1 Ditec DAB105 - DAB205 IP2173EN User manual (Original instructions) www.entrematic.com...
-
Page 2: Instruction For Safe Operation
Instruction for safe operation • Failure to observe the information in the user manual may re- sult in personal injury or damage to equipment. • To reduce the risk of injury to persons - use this operator with single or double pedestrian swinging or folding doors only. •... -
Page 3: Electronic Equipment Reception Interference
Electronic equipment reception interference The equipment complies with the European EMC directive (US market FCC Part 15), provided installed according to Installation and Service manual. The equipment may generate and use radio frequency energy and if not installed and used properly, it may cause interference to radio, television reception or other radio frequency type systems. -
Page 4: Product Liability
The Ditec DAB105 / Ditec DAB205 is a low-energy as well as a full power operator us- ing a DC motor and a gear-reduction system to drive an arm system, which opens the door. -
Page 5: Technical Specification
The Ditec DAB105 / Ditec DAB205 can be set in three or four different modes, depen- ding on programme selector type, see table below. In fully manual use (or in case of a power failure) the Ditec DAB105 / Ditec DAB205 acts as a normal door closer. -
Page 6: Regular Safety Checks
Regular safety checks To help you fulfil the national/international requirements and to avoid malfunction and risk for injuries, we have provided the following checklist. Do not use if repair or adjustment is necessary. Disconnect supply [14] when cleaning or other maintenance is to be carried out. If problems Daily Action occurs... - Page 7 Function and visual inspection...
- Page 8 Cleaning The best way to remove dust and dirt from the Ditec DAB105 / Ditec DAB205 is to use water and a soft cloth or a sponge. A gentle detergent may be used. To maintain the quality of the enamel layer, the surfaces should be cleaned once/four months period.
- Page 9 Check that all required signage is applied and intact. Mandatory indicates that the signage is required by European directives and equivalent national legislation outside the European Union. Ref. Description Product label. Mandatory. DAB105 ART. NO. TYPE YEAR+WEEK XXXXXXX XXXX PROJECT SERIAL NO.
-
Page 10: General Accessories
• Door stop (not illustrated) Safety accessories Even though the Ditec DAB105 / Ditec DAB205 is installed to comply with all applicable safety regulations, it is possible to enhance safety/comfort with the following add-ons (please contact your local ENTREMATIC representative for detailed description). - Page 12 Entrematic Group AB Lodjursgatan 10 SE-261 44, Landskrona Sweden www.entrematic.com...
