inStall GUide
Page 9 of 11
1 1
LED fl ashes (1X) once = DATA MODE
LED fl ashes (2X) twice = STANDARD HARDWIRE MODE
2 Æ
3
4
www.flaShloGic.com

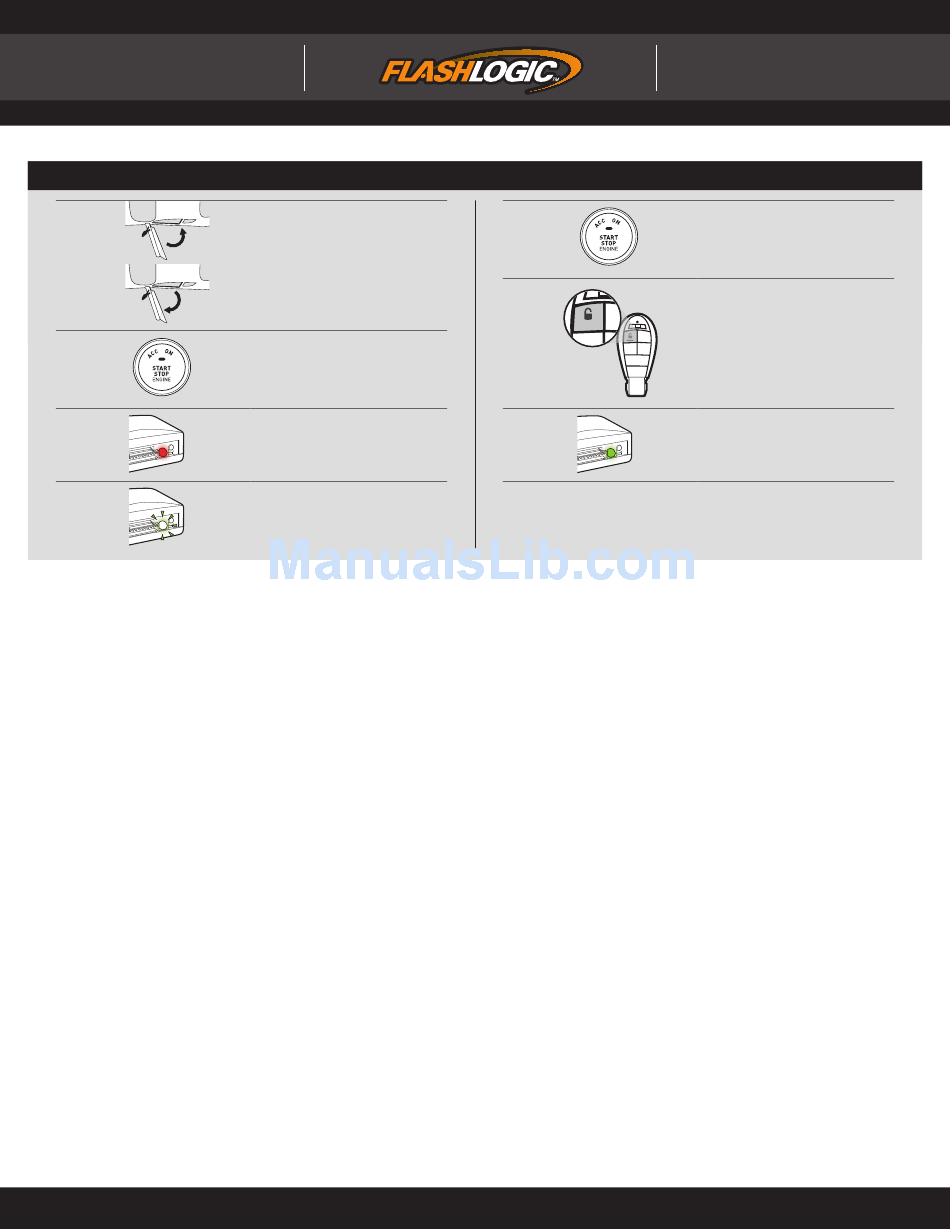

mOdULe PrOgramming PrOCedUre - PUSH tO Start inStaLLatiOn mOde SeLeCtiOn
Close driver door. Press and release
programming button
to select installation mode.
Re-open driver door to wake up
data bus.
DO NOT PRESS BRAKE PEDAL
x2
Push start button twice [2x] to
ON position.
LED will turn solid RED.
Within 5 seconds, LED will fl ash
GREEN rapidly.
U.S. Patent No. 8,856,780
FLC-AL(DL)-CH4-EN
Æ
2 5
!
6
After registration, follow Factory Reset Procedure to
change installation mode and restart this procedure.
UNLOCK
7
8
ALL IN ONE
Chrysler/DoDge/Jeep
Doc. No.: ##23962##
Press and hold DO NOT PRESS BRAKE PEDAL
x1
programming button
until LED turns solid GREEN
Push start button once [1x] to
to register selection. OFF position.
Press UNLOCK on the OEM
remote.
Wait, LED will turn solid GREEN
for 2 seconds.
Module Programming
Procedure completed.
