FlashLogic FLC-AL(DL)-CH4-EN Install Manual page 7

inStall GUide
Page 7 of 11
RIGHT SLIDING DOOR (-) OUTPUT RIGHT SLIDING DOOR (-) OUTPUT
LEFT SLIDING DOOR (-) OUTPUT LEFT SLIDING DOOR (-) OUTPUT
GROUND WHEN RUNNING (-) OUTPUT GROUND WHEN RUNNING (-) OUTPUT
LEGEND
N/A NOT REQUIRED IN DATA MODE (1-WAY)
NOT REQUIRED IN DATA MODE (2-WAY)
USE DATA MODE
OR HARDWIRE MODE
DATA MODE
GWR (-) INPUT - BLUE/WHITE GWR (-) INPUT - BLUE/WHITE
(NC) WHITE (NC) WHITE
GROUND - BLACK GROUND - BLACK
12V (+) - RED 12V (+) - RED
LOCK/ARM (-) INPUT - GREEN/BLACK LOCK/ARM (-) INPUT - GREEN/BLACK
UNLOCK/DISARM (-) INPUT - BLUE/BLACK UNLOCK/DISARM (-) INPUT - BLUE/BLACK
TRUNK (-) INPUT - RED/WHITE TRUNK (-) INPUT - RED/WHITE
DISARM ONLY (-) INPUT - BROWN DISARM ONLY (-) INPUT - BROWN
LEFT SLIDING DOOR (-) INPUT - PURPLE/YELLOW LEFT SLIDING DOOR (-) INPUT - PURPLE/YELLOW
RIGHT SLIDING DOOR (-) INPUT - PURPLE/BLACK RIGHT SLIDING DOOR (-) INPUT - PURPLE/BLACK
PARKING LIGHT (+) INPUT - WHITE PARKING LIGHT (+) INPUT - WHITE
STARTER (+) INPUT - BLACK/WHITE STARTER (+) INPUT - BLACK/WHITE
E-BRAKE STATUS (-) OUTPUT - GREEN E-BRAKE STATUS (-) OUTPUT - GREEN
TACH (AC) OUTPUT - PURPLE/WHITE TACH (AC) OUTPUT - PURPLE/WHITE
WARNING
FOR SECURE TAKE OVER, CONNECT THE
BRAKE STATUS WIRE TO THE REMOTE STARTER.
DO NOT CONNECT TO THE VEHICLE BRAKE WIRE,
IT VOIDS THE SECURE TAKE OVER FEATURE.
THE BRAKE STATUS WIRE IS FUNCTIONAL
ONLY WHEN THE IGNITION IS POWERED.
www.flaShloGic.com
U.S. Patent No. 8,856,780
FLC-AL(DL)-CH4-EN

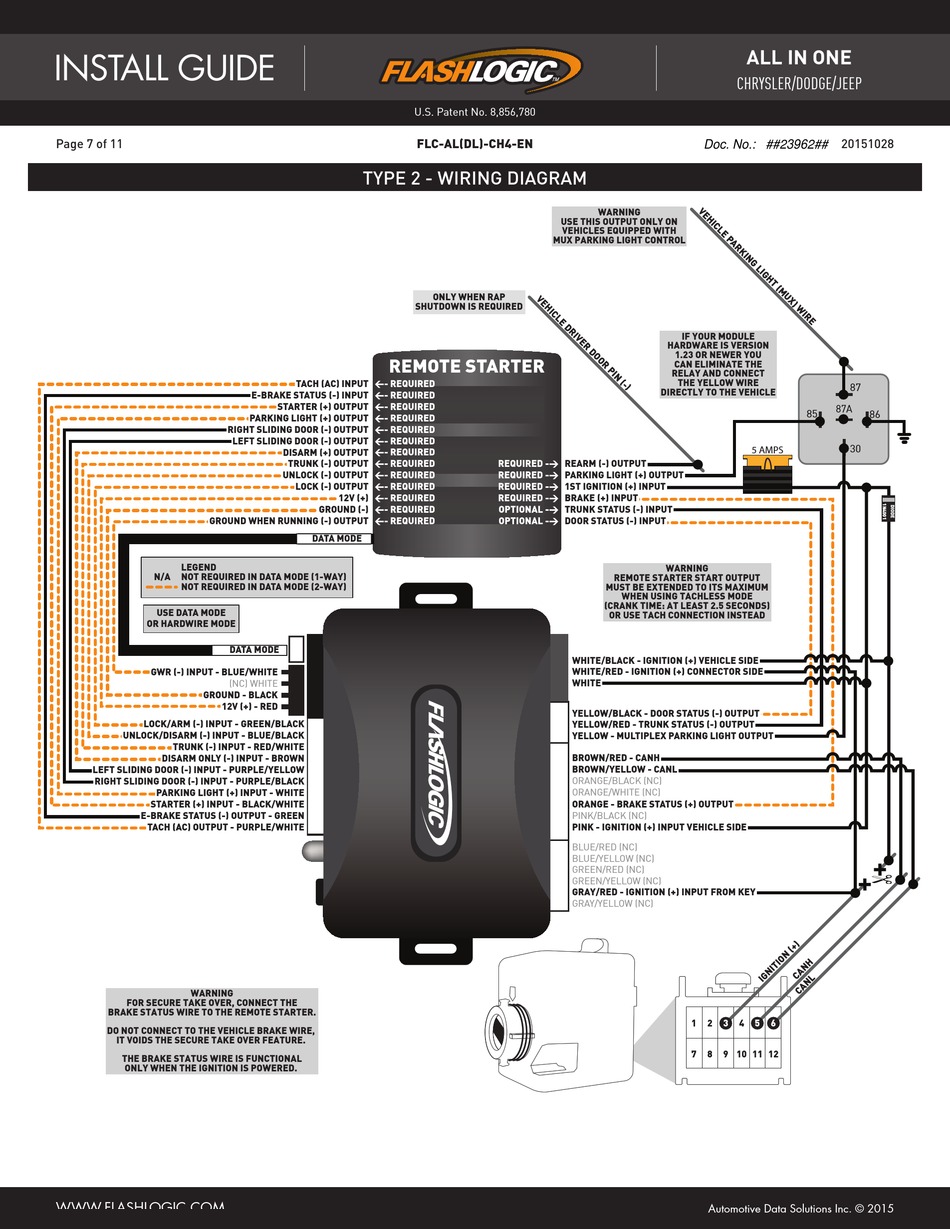

tyPe 2 - wiring diagram
SHUTDOWN IS REQUIRED SHUTDOWN IS REQUIRED
REMOTE STARTER
TACH (AC) INPUT TACH (AC) INPUT <- REQUIRED
E-BRAKE STATUS (-) INPUT E-BRAKE STATUS (-) INPUT <- REQUIRED
STARTER (+) OUTPUT STARTER (+) OUTPUT <- REQUIRED
<- REQUIRED
PARKING LIGHT (+) OUTPUT PARKING LIGHT (+) OUTPUT
<- REQUIRED
<- REQUIRED
DISARM (+) OUTPUT DISARM (+) OUTPUT <- REQUIRED
TRUNK (-) OUTPUT TRUNK (-) OUTPUT <- REQUIRED
UNLOCK (-) OUTPUT UNLOCK (-) OUTPUT <- REQUIRED
LOCK (-) OUTPUT LOCK (-) OUTPUT <- REQUIRED
12V (+) 12V (+) <- REQUIRED
GROUND (-) GROUND (-) <- REQUIRED
<- REQUIRED
DATA MODE
WARNING
USE THIS OUTPUT ONLY ON
VEHICLES EQUIPPED WITH
MUX PARKING LIGHT CONTROL
ONLY WHEN RAP ONLY WHEN RAP
REQUIRED -> REARM (-) OUTPUT REARM (-) OUTPUT
REQUIRED -> PARKING LIGHT (+) OUTPUT PARKING LIGHT (+) OUTPUT
REQUIRED -> 1ST IGNITION (+) INPUT 1ST IGNITION (+) INPUT
REQUIRED -> BRAKE (+) INPUT BRAKE (+) INPUT
OPTIONAL -> TRUNK STATUS (-) INPUT TRUNK STATUS (-) INPUT
OPTIONAL -> DOOR STATUS (-) INPUT DOOR STATUS (-) INPUT
MUST BE EXTENDED TO ITS MAXIMUM
(CRANK TIME: AT LEAST 2.5 SECONDS)
OR USE TACH CONNECTION INSTEAD
WHITE/BLACK - IGNITION (+) VEHICLE SIDE WHITE/BLACK - IGNITION (+) VEHICLE SIDE
WHITE/RED - IGNITION (+) CONNECTOR SIDE WHITE/RED - IGNITION (+) CONNECTOR SIDE
WHITE WHITE
YELLOW/BLACK - DOOR STATUS (-) OUTPUT YELLOW/BLACK - DOOR STATUS (-) OUTPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW - MULTIPLEX PARKING LIGHT OUTPUT YELLOW - MULTIPLEX PARKING LIGHT OUTPUT
BROWN/RED - CANH BROWN/RED - CANH
BROWN/YELLOW - CANL BROWN/YELLOW - CANL
ORANGE/BLACK (NC) ORANGE/BLACK (NC)
ORANGE/WHITE (NC) ORANGE/WHITE (NC)
ORANGE - BRAKE STATUS (+) OUTPUT ORANGE - BRAKE STATUS (+) OUTPUT
PINK/BLACK (NC) PINK/BLACK (NC)
PINK - IGNITION (+) INPUT VEHICLE SIDE PINK - IGNITION (+) INPUT
BLUE/RED (NC) BLUE/RED (NC)
BLUE/YELLOW (NC) BLUE/YELLOW (NC)
GREEN/RED (NC) GREEN/RED (NC)
GREEN/YELLOW (NC) GREEN/YELLOW (NC)
GRAY/RED - IGNITION (+) INPUT FROM KEY GRAY/RED - IGNITION (+) INPUT FROM KEY
GRAY/YELLOW (NC) GRAY/YELLOW (NC)
ALL IN ONE
Chrysler/DoDge/Jeep
Doc. No.: ##23962##
IF YOUR MODULE
HARDWARE IS VERSION
1.23 OR NEWER YOU
CAN ELIMINATE THE
RELAY AND CONNECT
THE YELLOW WIRE
DIRECTLY TO THE VEHICLE
5 AMPS
WARNING
REMOTE STARTER START OUTPUT
WHEN USING TACHLESS MODE
VEHICLE SIDE
1 2 3 3 4 5 5 6 6
7 8 9 10 11 12
automotive data Solutions inc. © 2015
20151028
87
87A
85 86
30
