- Page 1 POWERPOD 415RW User's Manual Manual del Usuario...
- Page 2 POWERPOD 415RW POWERED MIXER MEZCLADORA AMPLIFICADA ENGLISH.............I ESPAÑOL............II APPENDIX..........III V1.0 08/13/2015...
-
Page 3: Table Of Contents
CHANNEL STRIP DESCRIPTION..........1 MASTER SECTION DESCRIPTION..........1 BLUETOOTH SECTION............2 USB RECORDER DESCRIPTION..........2 REAR PANEL DESCRIPTION............2 USB RECORDER / BLUETOOTH.............4 SPECIFICATIONS...............5 APPENDIX APPLICATIONS..............1 DIMENSIONS..............3 BLOCK DIAGRAMS..............4 Phonic preserves the right to improve or alter any information within this document without prior notice... -
Page 4: Important Safety Instructions
POWERPOD 415RW... -
Page 5: Introduction

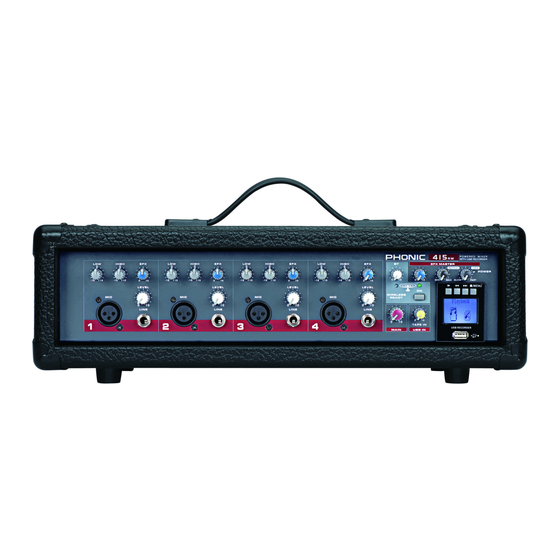

INTRODUCTION Congratulations on your purchase of the Phonic Powerpod 415RW Powered Mixer. The Powerpod 415RW is built into a rug- ged wooden cabinet for heavy-duty use. In order to get the best performance from your Powerpod 415RW, please read all of this safety and operation manual before operating the mixers and keep the manual for future reference. -
Page 6: Bluetooth Section
While the recordings are indeed in stereo, home audio equipment. The nominal output level and impedance they are also limited by the Powerpod 415RW’s circuitry, which is are -10dBV/600ohms. mono rather than stereo. When playing back a signal, the signal will pass through the USB In control and then is sent directly to 18. - Page 7 The main output signal appears on the TIP of the plug and the external signal is returned on the RING. A “Y” cable may be required to connect to equipment with separate send and return jacks as shown below: MIN. REQUIRED LOAD 4 Ohms=SPEAKER A+B MAX OUTPUT=100W/4 Ohms POWERPOD 415RW...
-
Page 8: Usb Recorder / Bluetooth
“R” Recording The Powerpod 415RW includes a flexible USB recorder that includes a USB port accompanied by a LCD and four function buttons. Please see the operating instructions below: Playback: Record: The USB player supports WMA and MP3 Users can record high definition WAV format playback through USB Power on the device. -
Page 9: Specifications
SPECIFICATIONS Powerpod 415RW POWER AMP, output power in watts Number of Power Channels 8Ω 4Ω Inputs Balanced Mono Mic/Line Channels 2T Input Outputs Main Out TRS, unbal. Channel Strips Volume Controls Rotary Master Section Rotary Fader Master Built-in Digital Effect... - Page 10 ’s manual. Phonic, at its option, shall repair or replace the defective unit covered by this warrant y. Please retain the dated sales receipt as evidence of the date of purchase.
-
Page 11: Applications
MIN. REQUIRED LOAD 4 Ohms=SPEAKER A+B MAX OUTPUT=100W/4 Ohms VOCAL MIC MIC DE VOCAL GUITAR GUITARRA KEYBOARD, SYNTHESIZER, SAMPLER TECLADO, SINTETIZADOR, SAMPLER MIC LEVEL SOURCES LINE LEVEL SOURCES FUENTES DE NIVEL DE MIC FUENTE DE NIVEL DE LINEA POWERPOD 415RW... -
Page 12: Line Level Sources
MIC DE VOCAL DRUM MACHINE GUITAR KEYBOARD, SYNTHESIZER, SAMPLER GUITARRA TECLADO, SINTETIZADOR, SAMPLER BASS AMP BASS GUITAR AMP DE BASS GUITARRA BASS MIC LEVEL SOURCES LINE LEVEL SOURCES FUENTES DE NIVEL DE MIC FUENTE DE NIVEL DE LINEA POWERPOD 415RW... - Page 13 DIMENSIONS DIMENSIONES 440/17.323 440/17.323 214/8.42 Measurements are shown in mm/inches Todas las medidas están mostradas en mm/pulgadas. POWERPOD 415RW...
- Page 14 BLOCK DIAGRAM DIAGRAMA DE BLOQUE POWERPOD 415RW...
- Page 15 NOTES POWERPOD 415RW...
