  • Page 1 CELEUS 600 User's Manual Manual del Usuario...
  • Page 2 CELEUS 600 ANALOG MIXERS MEZCLADORES ANALÓGICO ENGLISH .........I ESPAÑOL ........II APPENDIX .
  • Page 3: Table Of Contents

    BLUETOOTH SETUP..........2 USB PLAYBACK............2 USB RECORDING............2 AUDIO INTERFACE............2 MAKING CONNECTIONS............3 CONTROLS AND SETTINGS...........4 SPECIFICATIONS..............8 APPENDIX DIGITAL EFFECTS TABLE............1 APPLICATION.................2 DIMENSIONS................4 BLOCK DIAGRAMS..............5 Phonic reserves the right to improve or alter any information within this document without prior notice. CELEUS 600...
  • Page 4: Important Safety Instructions

    CELEUS 600...
  • Page 5: Introduction

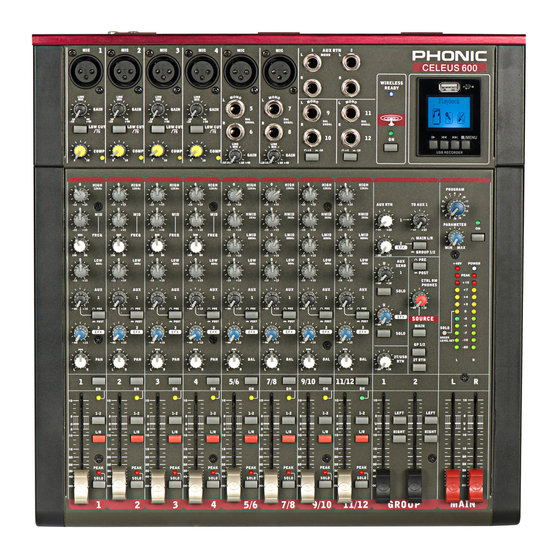

    Getting Started Thank you for choosing one of Phonic’s many quality compact mixers. The CELEUS 600 compact mixers – designed by the 1. Ensure all power is turned off on your mixer. To totally ensure ingenious engineers that have created a variety of mixers fantastic this, the power supply should not be connected to the unit.
  • Page 6: Bluetooth Setup

    DVD quality (16-bit stereo, with a 48 kHz these devices and you will not be able to use the CELEUS 600’s Bluetooth sampling rate) signal to and from your mixer. By doing this, you are function with these devices.
  • Page 7: Making Connections

    2. Stereo Channel Inputs As with the Tape In ports, these outputs will accommodate RCA The CELEUS 600 features 4 stereo input channels (channels cables, able to be fed to a variety of recording devices. This may 5 through to 12), the inputs of which differ slightly to the mono include cassette recorders or even laptop computers.
  • Page 8: Controls And Settings

    This switch is used to turn the mixer on and off. Ensure you turn in other words, a compander). The LED that accompanies this all level controls down before activating. This ensures no audio is control will light up when the compressor is triggered. inadvertently sent through your system. CELEUS 600...
  • Page 9 AUX mix between a post- and pre-fader feed. The you are unsure of the source’s operating CELEUS 600 features a second AUX send mix, and thus offers a level, leave the switch disengaged until you second AUX control.
  • Page 10: Digital Effects Table

    Main L/R fader provides 10 dB of gain to the signal, and when set all the way down, the signal is effectively muted. These faders also adjust the final output level of the signal sent through the USB interface to the computer. CELEUS 600...
  • Page 11: Usb Recorder Description

    Group outputs on the rear of the 54. Stop/Menu Button CELEUS 600. These can be used to feed external devices such as Push this button to stop playback or recording when applicable. effect processors and multi-track recorders. These faders can be Push and hold the button to access the USB recorder/player’s...
  • Page 12 SPECIFICATIONS Celeus 600 Total Channels Balanced Mono XLR Channels (Mic/Line) Balanced XLR / Stereo Line Channels Balanced Stereo Line Channels AUX/EFX Returns 2 Stereo 2T Input Stereo RCA Main L/R Stereo Output 2 x XLR; 2 x 1/4” AUX/EFX Sends 2 x 1/4”...
  • Page 13: Dimensions

    32/40-bit Digital Effect Processor 16 effects Power Requirement (depends on region) 100-240 VAC, 50/60 Hz Internal Dimensions (H x W x D) 104 x 340 x 345 mm (4.1" x 13.4" x 13.6") Weight 4.7 kg (10.3 lbs) CELEUS 600...
  • Page 14: Service And Repair

    Phonic, at its option, shall repair or replace the defective unit covered by this warranty. Please retain the dated sales receipt as evidence of the date of purchase.
  • Page 15 INTERFAZ DE AUDIO..............2 HACER CONEXIONES..............3 CONTROLES Y SETEOS.............4 ESPECIFICACIONES..............8 APÉNDICE TABLA DE EFECTOS DIGTALES..........1 APLICACIONES................2 DIMENSIONES................4 DIAGRAMAS DE BLOQUE............5 Phonic se reserva el derecho de mejorar o alterar cualquier información provista dentro de este documento sin previo aviso. CELEUS 600...
  • Page 16 CELEUS 600...
  • Page 17: Introduccion

    Al igual que los 2. Todos los faders y controles de nivel deben estar seteados en el productos anteriores de Phonic, el Celeus 600 muestra una gran nivel más bajo para asegurarse que no se envíe ningún sonido eficacia;...
  • Page 18: Configuración Bluetooth

    Bluetooth del CELEUS. muestreo de 48 kHz) desde su mesa de mezclas. Al hacer esto, en realidad se está convirtiendo su Celeus 600 en una tarjeta de REPRODUCTOR USB sonido plug'n'play de gran utilidad para su equipo.
  • Page 19: Haciendo Conexiones

    La señal usados en lugar de los conectores de entrada TRS estéreo. despues, puede ser devuelta a la CELEUS 600 a través del Retorno AUX (Aux Returns). 3. Retorno Estéreo Auxiliar (ESTÉREO AUX RETURN) Las entradas TRS 1/4"...
  • Page 20: Controles Y Ajustes

    ±15 dB a frecuencias altas de audio. (12kHz). Este mando ajustara el nivel de frecuencias altas que se incluyen en el audio del canal. Se aumentara así la potencia y la claridad de instrumentos como guitarra, címbalos y sintetizadores. CELEUS 600...
  • Page 21 Hará que el mezclador AUX; entre “un post-fader” y “pre- se adapte a los dispositivos externos fader”. El Celeus 600 cuenta con un (que pueden utilizar diferentes niveles de segundo envío AUX a la mezcla, y por lo tanto ofrece un segundo operación).
  • Page 22 36. Indicador de Energía Este indicador LED se iluminará cuando se enciende la Mezcladora CELEUS 600. 37. Level Meter Este medidor de nivel dual de 11 segmentos, dá una indicación precisa de los niveles que alcanza el audio de la señal L / R Principal en tiempo real.
  • Page 23 TAPE IN/USB y la señal será enviada de efector digital incluido. El botón SOLO correspondiente le directamente a la mezcla principal (Main Mix). El Celeus 600 permite enviar la señal a Control Room /Phones mix.
  • Page 24 SPECIFICATIONS Celeus 600 Canales Totales Canales Mono XLR Balanceados (micrófono / línea) Canales Mono XLR / TRS Balanceados Canales Líneares Estéreo Balanceados Retorno AUX / EFX 2 estéreo Entrada 2T estéreo RCA Salida Estéreo Principal L/ R 2 x XLR; 2 x 1/4 "...
  • Page 25: Dimensiones

    Compresor Procesador de Efectos Digitales 32/40-bit 16 efectos Requisitos de Energía 100-240 VAC, 50/60 Hz Interno Dimensiones (H x W x D) 104 x 340 x 345 mm (4.1" x 13.4" x 13.6") Peso 4.7 kg (10.3 lbs) CELEUS 600...
  • Page 26 Phonic, a su propia opinión, reparará o cambiará la unidad defectuosa que se encuentra dentro de esta garantía.
  • Page 27: Digital Effect Table

    Tiempo de Reverberación (S) 0,6 a 1,6 Doubler Proporción Feedback de 20% asta 90% Echo Retraso medio (S) 0,12 a 0,55 Chorus 0,66 a 9,6 0,8 a 8,8 Chorus + Rev Tiempo de Reverberación 0,4 a 0,8 Spring 0,16 a 1,33 CELEUS 600...
  • Page 28 APPLICATIONS APLICACIONES FOH MAIN SPEAKERS ALTAVOCES PRINCIPALES FOH DAT RECORDER GRABADORA DE DATO CD PLAYER REPRODUCTOR DE CD DRUM MACHINE CAJA DE RITMO VOCAL MICROPHONE MICRÓFONOS DE VOZ KEYBOARD TECLADO CELEUS 600...
  • Page 29 STUDIO MONITORS MONITORES DE ESTUDIO EFX PROCESSOR PROCESADOR DE EFECTO VOCAL MICROPHONE BASS MICRÓFONOS DE VOZ BAJO ELECTRIC GUITAR GUITARRA ELÉCTICA DRUM SET BATERIA CELEUS 600...
  • Page 30 DIMENSIONS DIMENSIONES 340 mm / 13.4” All measurements are shown in mm/inches. Todas las medidas están mostradas en mm/pulgadas. CELEUS 600...
  • Page 31: Block Diagrams

    BLOCK DIAGRAMS DIAGRAMAS DE BLOQUE CELEUS 600...
