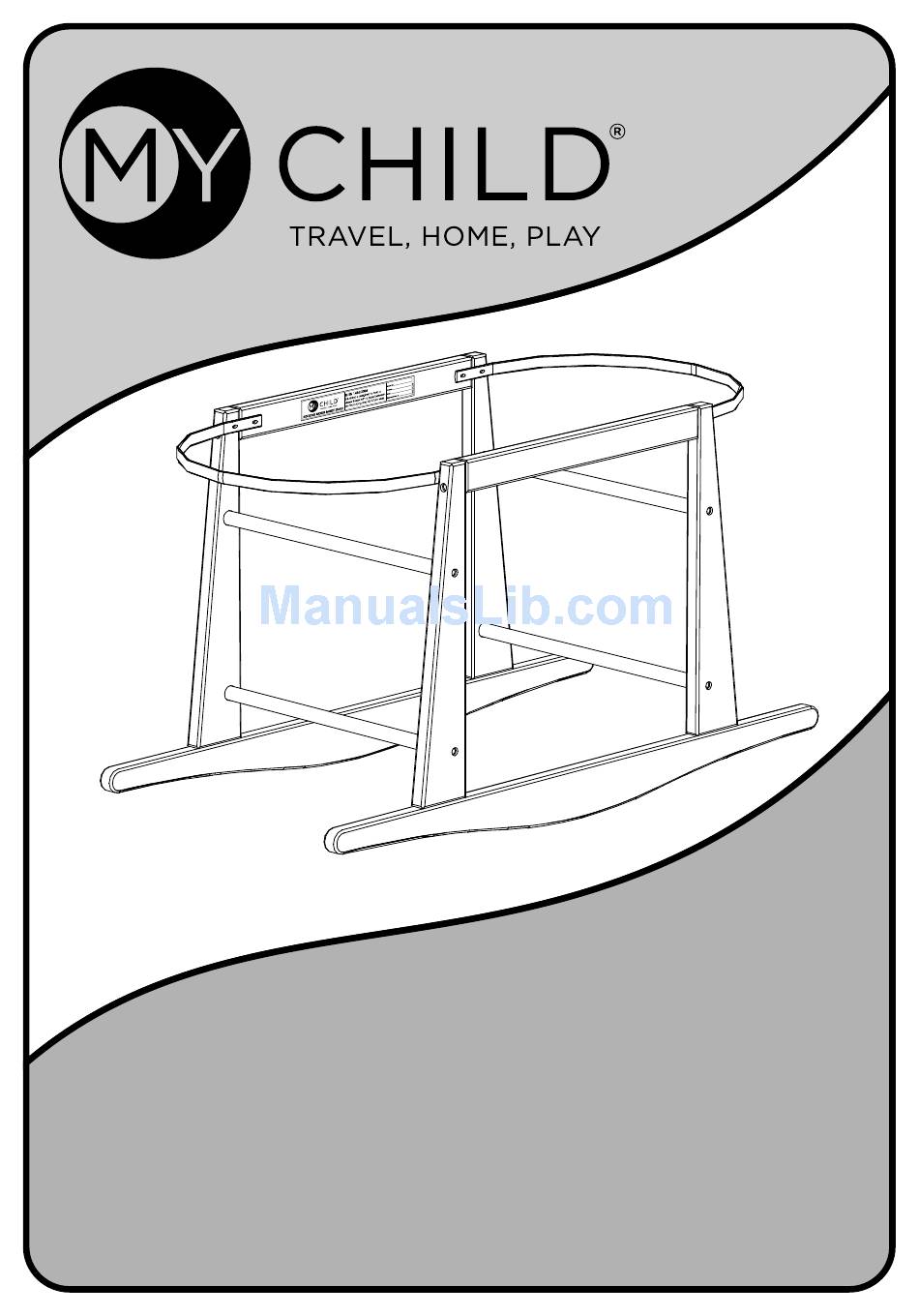

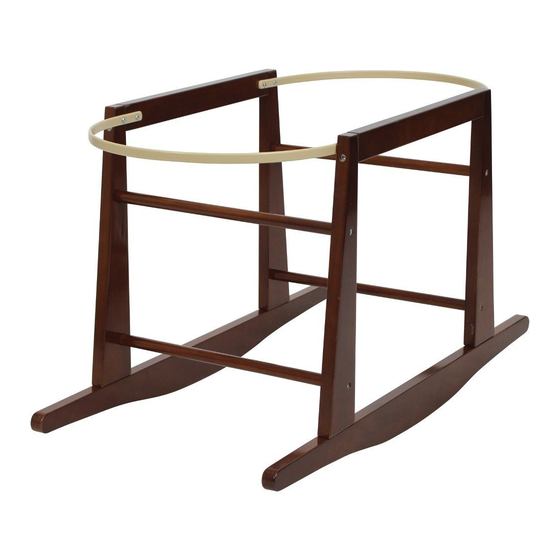

ROCKING MOSES BASKET STAND
Important Information:
Before you begin assembly, please read these directions. See next
page for important warning statements on this product. After product is
assembled make sure all bolts and screws are securely tightened.
PRN: AIM-50-0171-KOL [15.11.05]
Advertisement
Related Manuals for My Child ROCKING MOSES BASKET STAND
Summary of Contents for My Child ROCKING MOSES BASKET STAND
- Page 1 ROCKING MOSES BASKET STAND Important Information: Before you begin assembly, please read these directions. See next page for important warning statements on this product. After product is assembled make sure all bolts and screws are securely tightened. PRN: AIM-50-0171-KOL [15.11.05]...
- Page 2 WARNING: Do not let other children play unattended near the carry cot and stand. WARNING: Do not use if any part is broken, torn or missing. Only use My Child approved parts. When the stand is not in use, it must be put away.
-
Page 3: Part List
This stand is designed to hold a Colour: Moses Basket with a base between Date: 68-79cm long and 30-37cm wide ROCKING MOSES BASKET STAND Shipment Ref. #: (3) Side Rail (One with Warning Label attached) Part #: 07-35124 (2 pcs) - Page 4 ASSEMBLY INSTRUCTIONS Insert Wooden Pins (B) into the top hole on the Side Rails (3) on both ends. Repeat for other side rail. Note: Angled edge of legs face outwards as shown with the larger holes for the cross dowels on the same side facing in.
- Page 5 ASSEMBLY INSTRUCTIONS Insert one of the end of the Dowel Cross Rails (5) into the large hole on the side assembly. The dowel should go into the hole tightly as shown in 4a. Some gentle tapping may be required. Bolt the dowel into place with a 55mm Allen Head Bolt (A) and tighten in place.
- Page 6 Notes: Product Packaging Information Model #: Colour: Kooltrade Ltd. Date: 3 Orbital Way, Denton Shipment Ref. #: Manchester, M34 3QA MADE IN CHINA...
