Mitsubishi Electric FX3S-10M series Hardware Manual

Melsec-f fx3s series.
Hide thumbs


Advertisement

Side
B
Side
Side
A
B
JAPANESE
ENGLISH
FX
SERIES PROGRAMMABLE
3S
CONTROLLERS
HARDWARE MANUAL
Manual Number
JY997D48301
Revision
G
Date
December 2017
This manual describes the part names, dimensions, mounting, cabling and
specifications for the product. This manual is extracted from FX
Series User's
3S
Manual - Hardware Edition. Refer to FX
3S
Series User's Manual - Hardware
Edition for more details. Before use, read this manual and manuals of relevant
products fully to acquire proficiency in the handling and operating the product.
Make sure to learn all the product information, safety information, and
precautions.
And, store this manual in a safe place so that you can take it out and read it
whenever necessary. Always forward it to the end user.
Registration: Phillips is a registered trademark of Phillips Screw Company.
The company name and the product name to be described in this manual are
the registered trademarks or trademarks of each company.
Effective December 2017
Specifications are subject to change without notice.
©
2013 MITSUBISHI ELECTRIC CORPORATION
Safety Precaution
(Read these precautions before use.)
If the equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired.
This manual classifies the safety precautions into two categories:
and
.
Indicates that incorrect handling may cause hazardous
conditions, resulting in death or severe injury.
Indicates that incorrect handling may cause hazardous
conditions, resulting in medium or slight personal injury
or physical damage.
Depending on the circumstances, procedures indicated by
also cause severe injury.
It is important to follow all precautions for personal safety.
STARTUP AND
MAINTENANCE
PRECAUTIONS
• Do not touch any terminal while the PLC's power is on.
Doing so may cause electric shock or malfunctions.
• Before cleaning or retightening terminals, cut off all phases of the power
supply externally.
Failure to do so may cause electric shock.
• Before modifying or disrupting the program in operation or running the
PLC, carefully read through this manual and the associated manuals and
ensure the safety of the operation.
An operation error may damage the machinery or cause accidents.
JY997D48301G
STARTUP AND
MAINTENANCE
PRECAUTIONS
• Turn off the power to the PLC before attaching or detaching the memory
cassette. If the memory cassette is attached or detached while the PLC's
power is on, the data in the memory may be destroyed, or the memory
cassette may be damaged.
• Do not disassemble or modify the PLC.
Doing so may cause fire, equipment failures, or malfunctions.
For repair, contact your local Mitsubishi Electric representative.
• Turn off the power to the PLC before connecting or disconnecting any
connection cable.
Failure to do so may cause equipment failures or malfunctions.
• Turn off the power to the PLC before attaching or detaching the following
devices.
Failure to do so may cause equipment failures or malfunctions.
- Peripheral devices, display module, expansion boards, special adapters
and memory cassette
• Do not use the chemicals for cleaning.
• If there is the possibility of touching the PLC inside a control panel in
maintenance, make sure to discharge to avoid the influence of static
electricity.
DISPOSAL PRECAUTIONS
• Please contact a certified electronic waste disposal company for the
environmentally safe recycling and disposal of your device.
TRANSPORTATION AND
STORAGE PRECAUTIONS
• The PLC is a precision instrument. During transportation, avoid impacts
larger than those specified in section 2.1 by using dedicated packaging
boxes and shock-absorbing palettes. Failure to do so may cause failures
in the PLC. After transportation, verify operation of the PLC and check for
damage of the mounting part, etc.
Associated manuals
How to obtain manuals
For the necessary product manuals or documents, consult with your local
Mitsubishi Electric representative.
Associated manuals
FX
3S
Series PLC (main unit) comes with this document (hardware manual).
For a detailed explanation of the FX
3S
Series hardware and information on
instructions for PLC programming, refer to the relevant documents.
Manual name
Manual No.
FX
Series
JY997D48601
Explains FX
3S
User's Manual
MODEL CODE:
specification details for I/O, wiring,
- Hardware Edition
09R535
installation, and maintenance.
FX
/FX
/FX
/
3S
3G
3GC
FX
/FX
Series
JY997D16601
Describes PLC programming for
3U
3UC
Programming Manual
MODEL CODE:
basic/applied instructions STL/
- Basic & Applied
09R517
SFC programming and devices.
may
Instruction Edition
MELSEC-Q/L/F
Programming methods,
SH-080782
Structured
specifications, functions, etc.
MODEL CODE:
Programming Manual
required to create structured
13JW06
(Fundamentals)
programs.
FXCPU Structured
JY997D26001
Devices, parameters, etc.
Programming Manual
MODEL CODE:
provided in structured projects of
[Device & Common]
09R925
GX Works2.
FXCPU Structured
JY997D34701
Sequence instructions provided
Programming Manual
MODEL CODE:
in structured projects of GX
[Basic & Applied
09R926
Works2.
Instruction]
FXCPU Structured
JY997D34801
Application functions provided in
Programming Manual
MODEL CODE:
structured projects of GX Works2.
[Application Functions]
09R927
FX Series
Explains N:N link, parallel link,
JY997D16901
User's Manual
computer link, no protocol
MODEL CODE:
- Data Communication
communication by RS
09R715
Edition
instructions/FX
Manual name
Manual No.
FX
/FX
/FX
/
3S
3G
3GC
JY997D16701
FX
/FX
Series
3U
3UC
MODEL CODE:
User's Manual
09R619
- Analog Control Edition
FX
/FX
/FX
/
3S
3G
3GC
FX
/FX
Series
JY997D16801
3U
3UC
User's Manual
MODEL CODE:
- Positioning Control
09R620
Edition
Certification of UL, cUL standards
Please consult with Mitsubishi Electric for information on UL, cUL standard
practices and the corresponding types of equipment.
Compliance with EC directive (CE Marking)
This product complies with EC directive, however, this document does not
guarantee that a mechanical system including this product will comply with EC
directive.
Compliance to EMC directive and LVD directive of the entire mechanical
system should be checked by the user/manufacturer. For more details please
contact the local Mitsubishi Electric sales site.
Caution for compliance with EC Directive
• Please use the FX3S Series programmable controllers while installed in
conductive shielded control panels under a general industrial environment.
• Programmable controllers are open-type devices that must be installed and
used within conductive control panels. Please secure the control panel lid to
the control panel (for conduction). Installation within a control panel greatly
affects the safety of the system and aids in shielding noise from the
programmable controller.
• For the control panel, use the product having sufficient strength, fire
protectiveness and shielding property to an installation environment.
• 24 V DC of the power supply must be supplied from the circuit double/
reinforced insulated from the main power supply (MAINS).
Caution for compliance with the LVD directive (EN61010-2-201:2013)
• To an external connection port other than AC power supply terminal and AC
input/output terminal, connect the circuit separated from a dangerous
voltage by a double/reinforced insulation.
• Between the commons having the adjacent relay output terminals, if an
external power supply is higher than 120 V AC, the insulation is basic.
Therefore, when using 120 V AC or higher external power supply and 30 V
DC/AC or lower external power supply between the adjacent commons, do
not handle 30 V DC/AC or lower external power supply as a touchable part,
Description
(When handling 30 V DC/AC or lower external power supply as a touchable
Series PLC
3S
part, add a basic insulation.)
• Do not wire two or more crimp terminals to one terminal. (If the wiring with
two or more wires is needed, take an appropriate action such as adding an
external terminal.)
• For crimp terminals to be used for the wiring applied with 30 V AC or higher,
use the products with insulating sleeves.
• Cutoff device such as a breaker or a circuit protector should be installed in
accordance with the following precautions.
- Use EN60947-1 or EN60947-3 standards.
- Use CP30-BA 2P 1-MD 0.5A or the cutoff device having the cutoff
performance equivalent to CP30-BA 2P 1-MD 0.5A.
- Place the cutoff device so that it can be operated easily.
- Specify that the cutoff device is for this equipment.
*1 For the time of compliance with the LVD directive (EN61010-2-201:2013),
refer to FX
Series User's Manual - Hardware Edition.
3S
Incorporated Items
Check if the following product and items are included in the package:
Product
FX
3S
-10M
FX
3S
-14M
Dust proof protection sheet
FX
-20M
3S
FX
-30M
3S
Manuals [Japanese/English]
2N
-232IF.
Description
1. Outline
Describes specifications for
analog control and programming
methods for FX
/FX
/FX
/

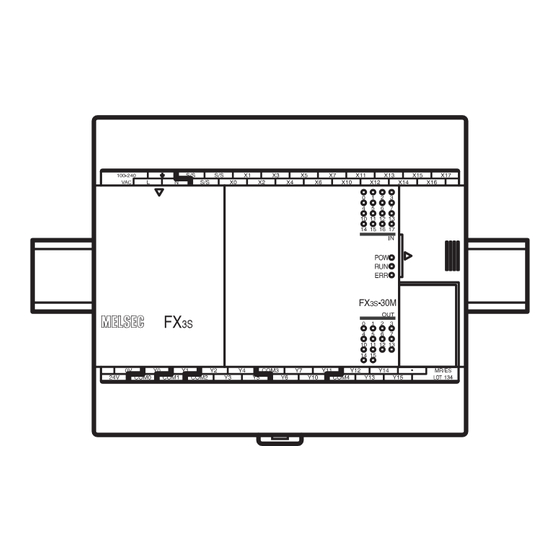

1.1 Part names
3S
3G
3GC
FX
/FX
Series PLC.
3U
3UC
[3]
Explains the specifications for
positioning control of FX
/FX
/
3S
3G
[2]
FX
/FX
/FX
Series and
3GC
3U
3UC
programming procedures.
[1]
No.
[1]
Top cover
Terminal names
[2]
shows a function grounding terminal.
[3]
Terminal block covers
[4]
Input display LEDs (red)
[5]
Peripheral device connecting connector cover
Operation status display LEDs
POW
[6]
RUN
ERR
[7]
Output display LEDs (red)
*1
[8]
The year and month of production
[9]
Model name (abbreviation)
[10]
DIN rail mounting hooks
When the top covers are open
[8]
[9]
No.
[1]
Optional equipment connector
[2]
Power supply terminal, Input (X) terminals
Variable analog potentiometers
[3]
Upper side: VR1, Lower side: VR2
[4]
RUN/STOP switch
[5]
Peripheral device connecting connector (USB)
[6]
Peripheral device connecting connector (RS-422)
Included Items
Service power supply terminal (AC power type only),
1 unit
[7]
Output (Y) terminals
1 sheet
[8]
Terminal cover
1 manual
[9]
Optional equipment connecting screw holes
[4]
[5]
[6]
[7]
[10]
[9]
[8]
Name
Green
On while power is on the PLC.
Green
On while the PLC is running.
Red
Flashing when a program error occurs.
Red
Lights when a CPU error occurs.
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
Name

Advertisement

   Also See for Mitsubishi Electric FX3S-10M series

   Summary of Contents for Mitsubishi Electric FX3S-10M series

  • Page 1

    • Turn off the power to the PLC before attaching or detaching the following CONTROLLERS devices. Please consult with Mitsubishi Electric for information on UL, cUL standard Failure to do so may cause equipment failures or malfunctions. practices and the corresponding types of equipment.

  • Page 2

    Right side 2.2.1 Affixing the dust proof sheet INSTALLATION Dielectric Insulation Terminal The dust proof sheet should be affixed to the ventilation port before beginning PRECAUTIONS strength resistance the installation and wiring work. • Turn off the power to the PLC before attaching or detaching the following ...

  • Page 3

    3.2 Power supply specifications and example of external 3.2.3 Example of external wiring [DC power type] WIRING 3. Power supply/input/output specifications and wiring 24 V DC power is supplied to the main unit. PRECAUTIONS examples of external wiring For details, refer to the following manual. •...

  • Page 4

    DC power This manual confers no industrial property rights or any rights of any other kind, Fuse 3-wire type 3-wire type AC power nor does it confer any patent licenses. Mitsubishi Electric Corporation cannot be supply Fuse sensor sensor supply held responsible for any problems involving industrial property rights which may occur as a result of using the contents noted in this manual.

This manual also for:

Fx3s-14m series, Fx3s-20m series, Fx3s-30m series

Comments to this Manuals

Symbols: 0
Latest comments:
