MEA2100-Mini Interface Board: Lemo Connectors for Analog IN
Two of the eight analog channels are additionally separate available via Lemo Connectors
Analog IN 1, Channel 1, Pin 3
Analog IN 2, Channel 2, Pin 4
The gain factor for amplification of all analog channels is 2.

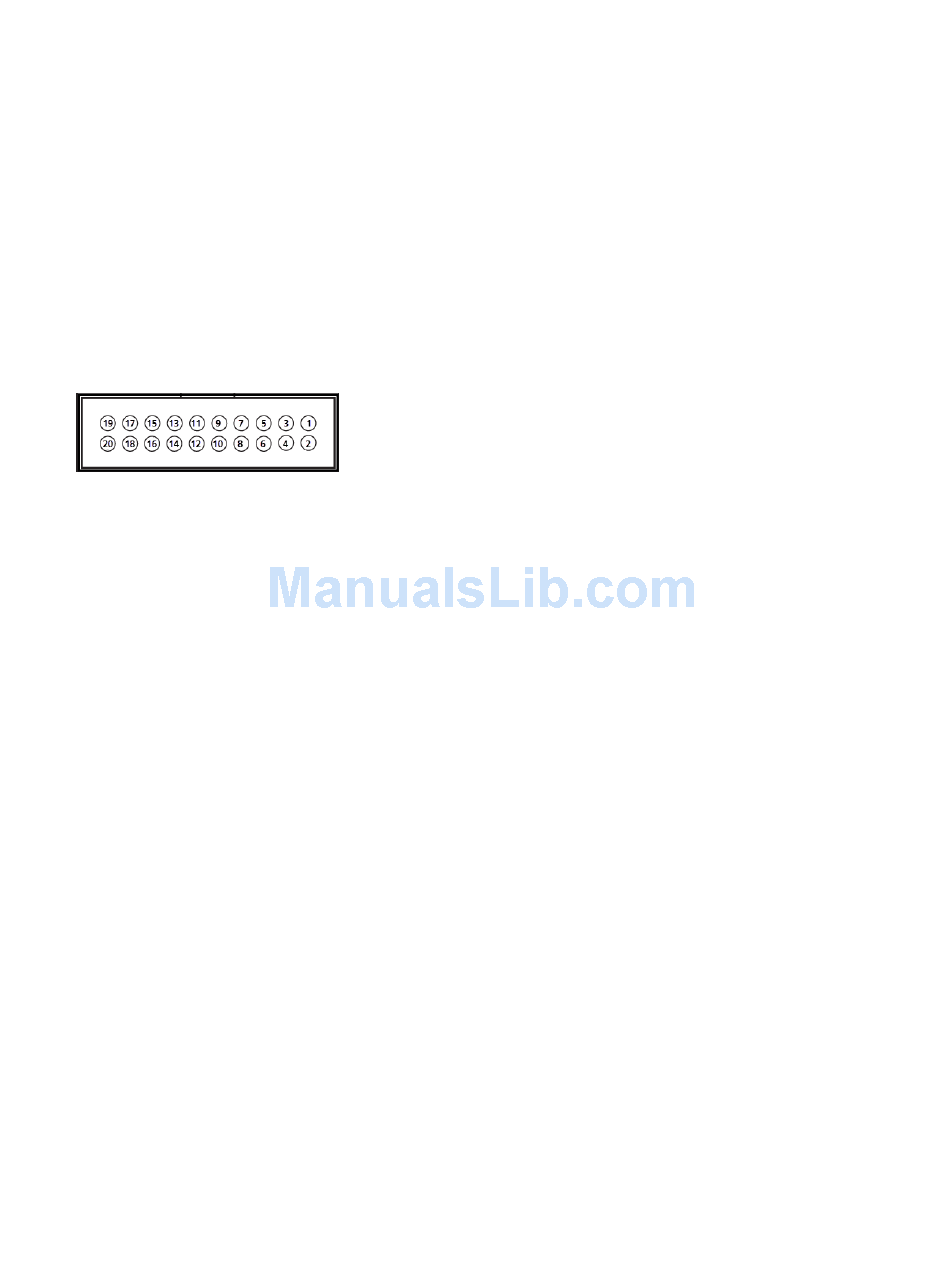

ME2100 Interface Board: 20-Pin Connector (JTAG) for Digital Signal Processor

Pin 1 2
Number
Assign- TMS TRST
ment
Pin 11 12
Number
Assign- TCK GND
ment
3 4 5
TDI GND 3V3
13 14 15
BM BM Analog
U 0 U 1 IN
Channel
3
33
6 7
KEY TDO
16 17
Analog Analog
IN IN
Channel Channel
4 5
8 9
GND RTCK
18 19
Analog Analog
IN IN
Channel Channel
6 7
10
GND
20
Analog
IN
Channel
8
