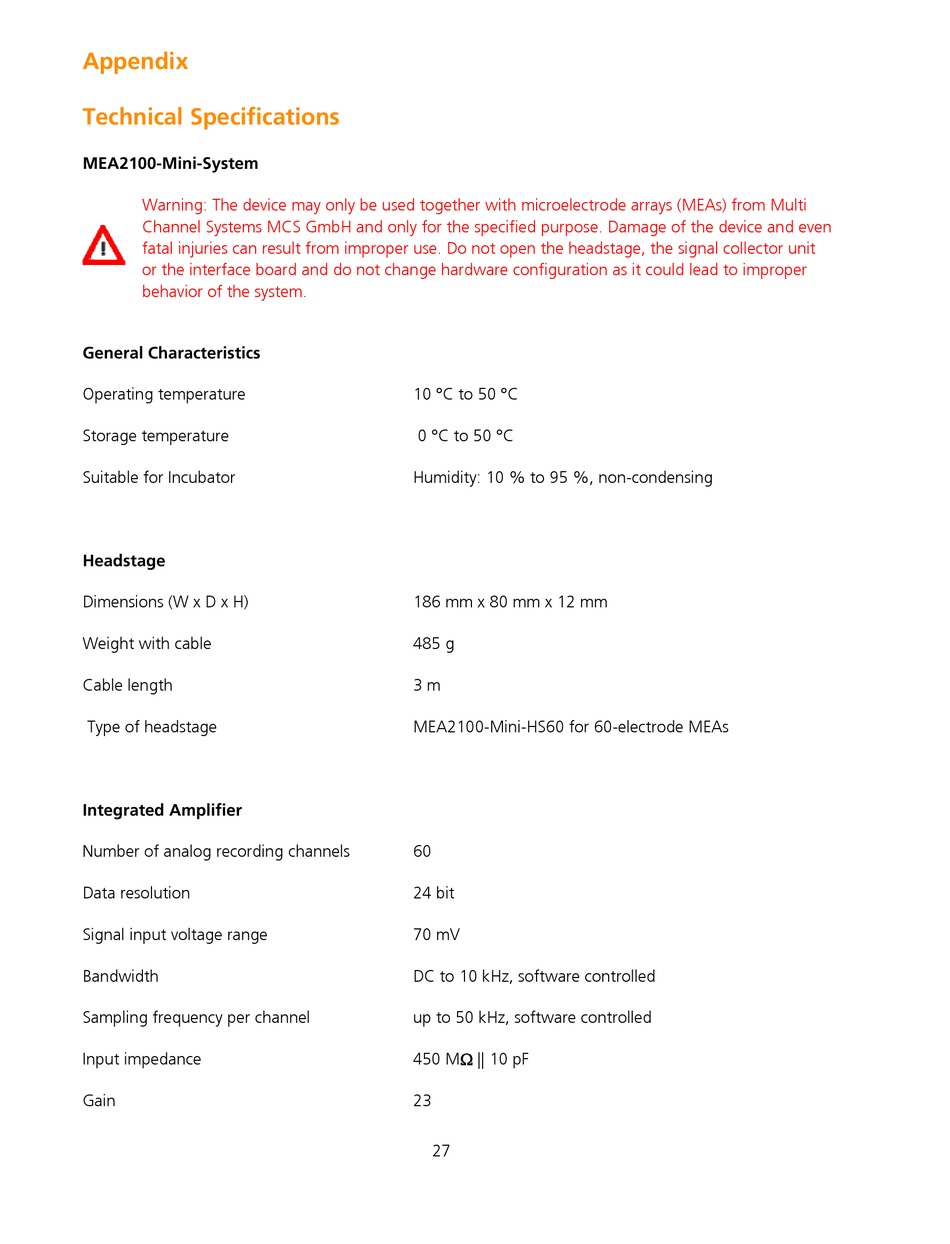

Appendix
Technical Specifications
MEA2100-Mini-System
Warning: The device may only be used together with microelectrode arrays (MEAs) from Multi
Channel Systems MCS GmbH and only for the specified purpose. Damage of the device and even
fatal injuries can result from improper use. Do not open the headstage, the signal collector unit
or the interface board and do not change hardware configuration as it could lead to improper
behavior of the system.
General Characteristics
Operating temperature
Storage temperature
Suitable for Incubator
Headstage
Dimensions (W x D x H)
Weight with cable
Cable length
Type of headstage
Integrated Amplifier
Number of analog recording channels
Data resolution
Signal input voltage range
Bandwidth
Sampling frequency per channel
Input impedance
Gain
10 °C to 50 °C
0 °C to 50 °C
Humidity: 10 % to 95 %, non-condensing
186 mm x 80 mm x 12 mm
485 g
3 m
MEA2100-Mini-HS60 for 60-electrode MEAs
60
24 bit
70 mV
DC to 10 kHz, software controlled
up to 50 kHz, software controlled
450 M || 10 pF
23
27
