MCS Filter Configuration

The MCS Filter Configuration software is an add on program for changing the hardware filter
settings by the software. No firmware update is necessary. You can operate the MCS Filter
Config software with MEA2100-Systems, MEA2100-Mini-Systems and ME2100-Systems.
Please install the MCS Filter Configuration software by clicking the "McsFilterConfig.exe" file.
Follow the installation guide as usual.

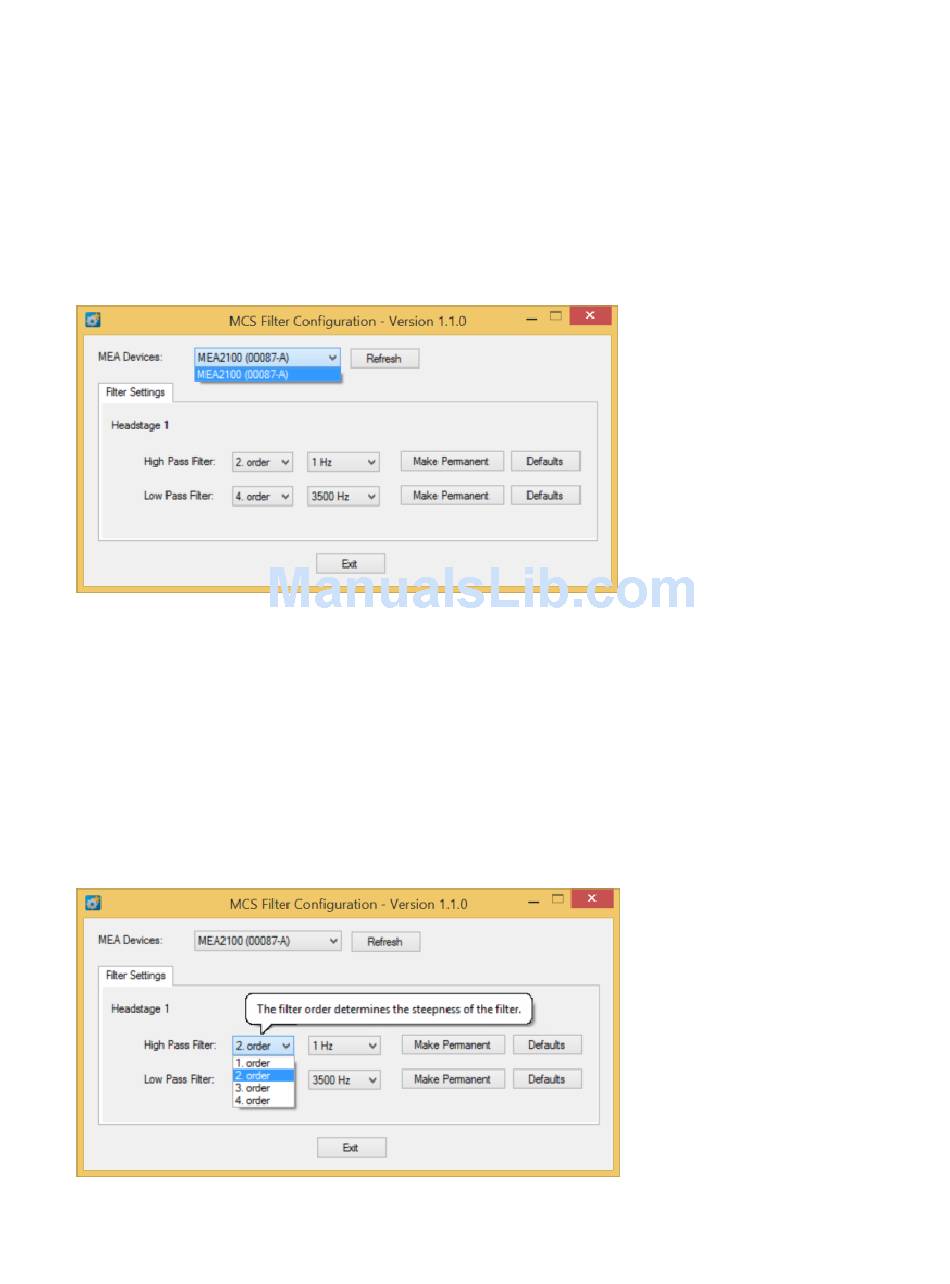

Main window of the MCS Filter Configuration program, Version 1.1.0
The MCS Filter Configuration program for changing the hardware filter setting of the ME2100-
or MEA2100(-Mini)-System is self-explanatory via tool tips. It is possible to control each headstage
connected separately.
Define the "MEA Devices" from the drop-down box if more than one headstages or headstages with
two MEA slots are available. Press "Refresh" button to update the settings. The actual settings for
"High and Low Pass Filter" for the selected headstage are displayed. If the actual settings are not on
the drop-down list, "Custom" will be displayed.
Select the order of the filter from the first drop-down box. The message "The filter order determines
the steepness of the filter" is shown. The higher the order, the steeper the cut off.
