Front Panel

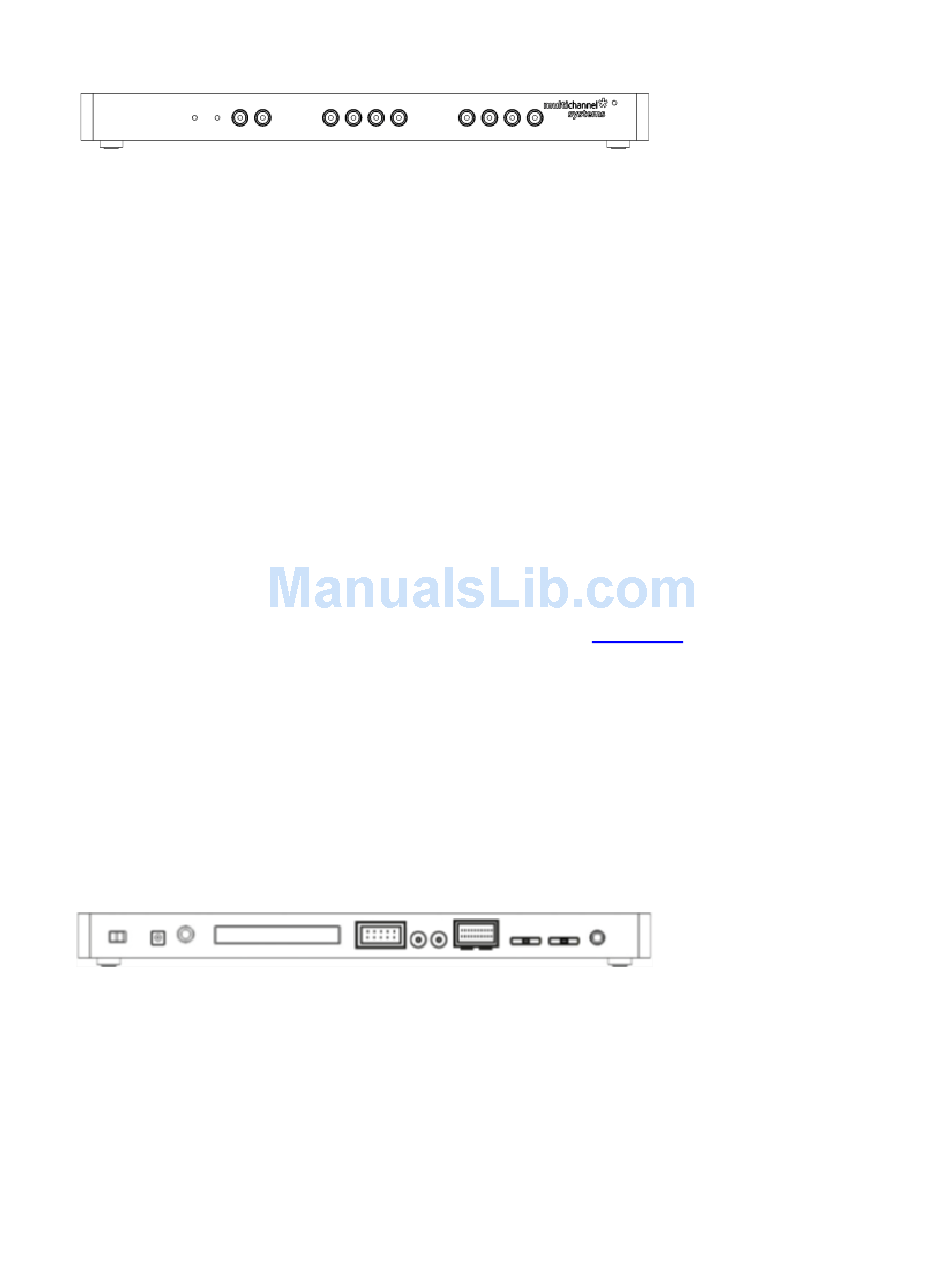

From left to the right:
Two Status LEDs
The status LEDs indicate the link status of MCS-SCU 1 and / or MCS-SCU 2. They light up when
one or both signal collector units are connected to the MCS-IFB 3.0 Multiboot interface board via
eSATAp cable.
Auxiliary Channels
Two reserved auxiliary channels are available for future use. They have no function at the moment.
Digital IN / OUT
A Digital IN / OUT for 16 digital in- and output bits is available (68-pin MCS standard connector)
on the rear panel of the interface board. On the front panel four Digital IN and four Digital OUT
bits are also accessible via Lemo connector (DIG IN bit 0 to bit 3 and DIG OUT bit 0 to bit 3).
The Digital OUT delivers TTL pulses with 3.3 V. If access to more bits of the DIG IN / OUT channel
is required, it is necessary to connect a Digital IN / OUT extension with a 68-pin standard
Di/o board
cable. This Di/o board is available as an optional accessory.
Power LED
The power LED near to the MCS logo on the front panel of the interface board should light up
when the MEA2100-Mini-System is "ON" and the device is connected to the power line. If not,
please check the power source and cabling.

Rear Panel

From left to right:
Toggle Switch On / Off
Toggle switch for turning the device on and off. The MEA2100-Mini-System is switched to status
"ON" when the toggle switch is switched to the left. The device is switched "OFF" when the toggle
switch is switched to the right. If the MEA2100-Mini-System is "ON", and the device is connected
to the power line, the Power LED on the front panel of the interface board should light up. If not,
please check the power source and cabling.
