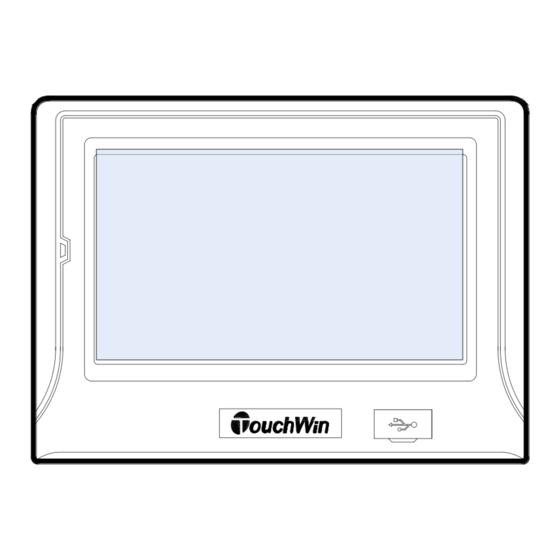

Xinje TH465-M User Manual

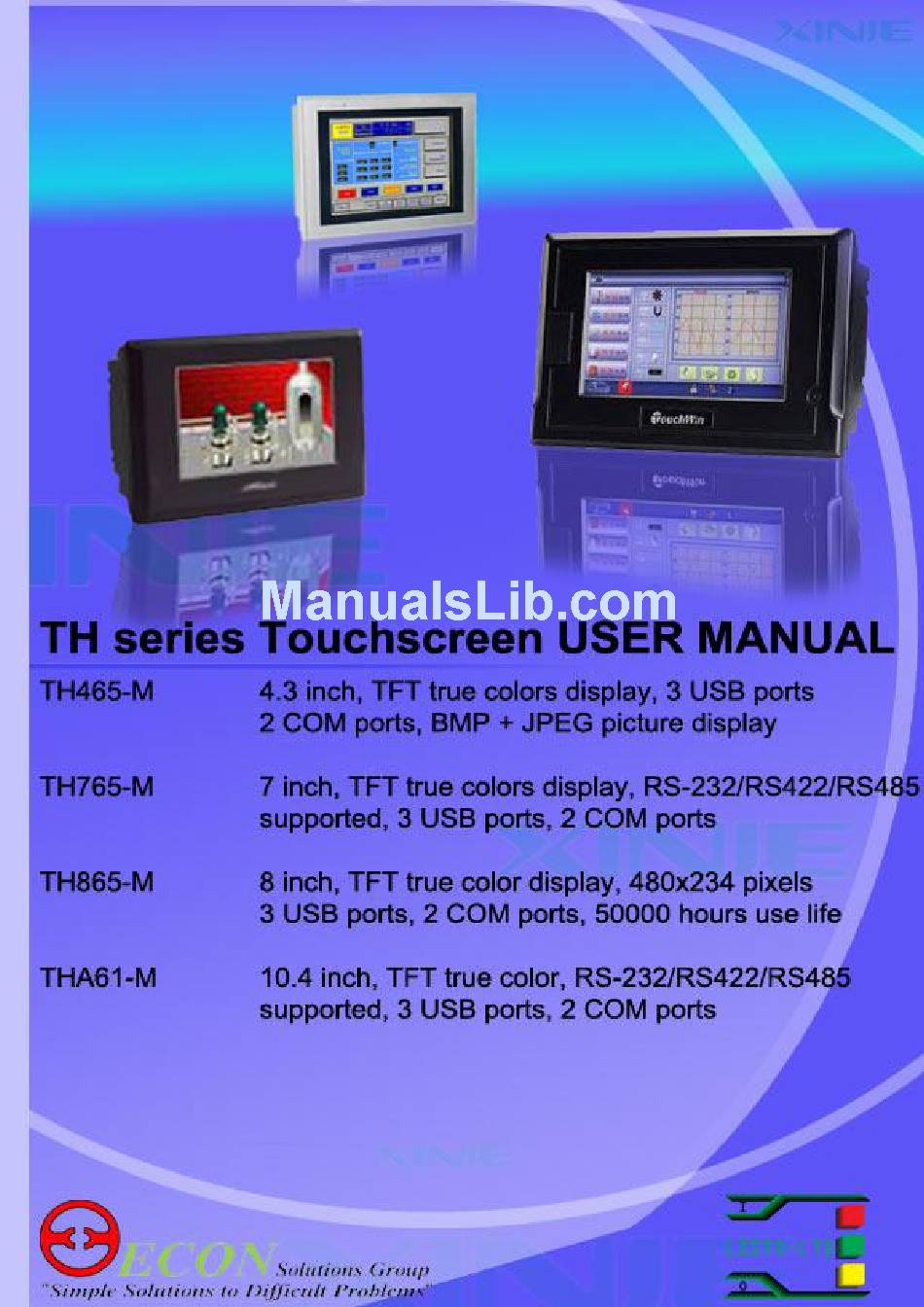

Tp/th series, 4.3/7/8/10.4 inch, tft true colors display, rs-232/rs422/rs485 supported, 3 usb ports 2 com ports, 50000 hours use life, bmp plus jpeg pucture display
Hide thumbs Also See for TH465-M:
Table of Contents

Advertisement

Quick Links

See also: Manual

Advertisement

Table of Contents
loading

Related Manuals for Xinje TH465-M

Summary of Contents for Xinje TH465-M

  • Page 2: Table Of Contents

    … USER MANUAL Index Page Chapter 1 Summarize Performance characteristics 1-1-1 Display 1-1-2 Control 1-1-3 Communication Work flow Chapter 2 General Specifications TH465-M TH475-M TH485-M THA61-M Chapter 3 Hardware Hardware structure Dimensions Installation and using environment Chapter 4 Interface and switch Introduction...
  • Page 3 Chapter 7 Application Adjust the touch area Photo application Debug and download Data backup 7-4-1 Data export 7-4-2 Import the CSV data Chapter 8 TH series touchscreen interior objects TH series Touchscreen User Manual Page 3 of 81 MANUL018R2V1...

  • Page 4: Display

    Summarize Xinje new touch screen TH series are based on TP series products. It not only has the language, characters editing, data display, monitor and alarm functions but also has 65536 true color LCD which can bring you brand-new vision enjoyment. It has the advantage of large capability for data duplication and friendly user interface.

  • Page 5: Control

    1-1-2 Control  Switch control, dynamic monitor and display data, bar map, real time trend map, time trend map, XY trend map, discrete/continue column map, real time alarm, history alarm record…  User-defined data collection and saving function  Set user‟s authority, 9 levels password protection ...

  • Page 6: General Specifications

    General specifications This chapter will introduce the specification of TH series touch screen. TH series touch screen contains TH465-M, TH765-M, TH856-M and THA61-M. Series Types TH465-M TH765-M TH865-M THA61-M 2-1 TH465-M 2-2 TH565-M 2-3 TH665-M 2-4 THA61-M TH series Touchscreen User Manual...

  • Page 7: Th465-M

    2-1 TH465-M TH465-M Item Input voltage DC20-DC28V Consumption 130mA current Momentary power Less than 10ms Electrical off allowance Withstand voltage AC1000V-10mA 1 minute ( signal and time ) DC500V- about 10MΩ ( signal and time ) Insulated impedance COM1 Support RS-232/RS-485...
  • Page 8 2-2 TH765-M TH765-M Item Input voltage DC20-DC28V Consumption current 250mA Momentary power off Less than 10ms Electrical allowance Withstand voltage AC1000V-10mA 1 minute ( signal and time ) DC500V- about 10MΩ ( signal and time ) Insulated impedance COM1 Support RS-232/RS-485 COM2 Support RS-232/RS422/RS485 Interface...
  • Page 9 2-3 TH865-M TH865-M Item Input voltage DC20-DC28V Consumption current 260mA Momentary power off Less than 10ms Electrical allowance Withstand voltage AC1000V-10mA 1 minute ( signal and time ) DC500V- about 10MΩ ( signal and time ) Insulated impedance COM1 Support RS-232/RS-485 COM2 Support RS-232/RS422/RS485 Interface...

  • Page 10: Tha61-M

    2-4 THA61-M THA61-M Item Input voltage DC20-DC28V Consumption current 630mA Momentary power off Less than 10ms Electrical allowance Withstand voltage AC1000V-10mA 1 minute ( signal and time ) DC500V- about 10MΩ ( signal and time ) Insulated impedance COM1 Support RS-232/RS-485 COM2 Support RS-232/RS422/RS485 Interface...
  • Page 11 Hardware 3-1 Hardware structure 3-2 Dimensions 3-2 Installation and using environment TH series Touchscreen User Manual Page 11 of 81 MANUL018R2V1...

  • Page 12: Hardware Structure

    3-1 Hardware structure The hardware structure of TH series touch screen includes front and back side. Take TH465-M as an example to explain the structure. USB-A port Touch area Power LED USB-A port Label USB-B port Power Plug COM1 COM2...

  • Page 13: Dimensions

    3-2 Dimensions TH465-M exterior dimension:150.0mm×100.0mm×41.0mm, mounting dimension: 144.0mm×94.0mm. 142.0 24V 0V FG 1 2 3 4 COM1 COM2 144.0 41.0 150.0 TH765-M exterior dimension:205.0mm×151.5mm×48.9mm, mounting dimension: 192.0mm×138.5mm. 48.9 12.0 190.0 24V 0V FG COM1 COM2 1 2 3 4 1 2 3 4 205.0...
  • Page 14 TH865-M exterior dimension: 224.4mm×170.8mm×45.5mm, mounting dimension: 211.4mm×157.8mm. 45.5 38.0 209.4 1 2 3 4 24V 0V FG 1 2 3 4 Download 211.4 224.4 THA61-M exterior dimension: 311.0mm×234.0mm×48.0mm, mounting dimension: 302.0mm×225.0mm. 311.0 302.0 48.0 300.0 43.1 COM1 COM2 +24V 0V FG TH series Touchscreen User Manual Page 14 of 81 MANUL018R2V1...

  • Page 15: Installation And Using Environment

    3-3 Installation and using environment Installation requirements: 1. TH has four ferric mounting racks when out of factory, there are two square holes on the up, down side of TH, use mounting rack to fix the TH with control cabinet. In order to avoid TH temperature too high after long time working, please keep 10cm space on the up/down and 5cm on the left/right side of the TH when installing.
  • Page 16 5. Maintenance and cleaning Maintenance: Caution  Please do not open the back cover by yourself.  Please do not analyse or change TH by yourself  Please cut off all the power supply while observing the TH.  Please do not touch terminals after power on, otherwise it may cause electric shock. ...

  • Page 17: Introduction

    Interface and switch 4-1 Introduction 4-2 Dip switch 4-3 COM1 port 4-4 COM2 port 4-5 USB-A port 4-6 USB-B port 4-1 Introduction TH series touch screen has 1 group of DIP switch and 5 communication ports. 1: DIP switch 4: USB-A port1 2: COM1 port 5: USB-A port2 3:COM2 port...

  • Page 18: Dip Switch

    The following terms should be done when using download function: 1. Turn on switch 2 in DIP switch group to make the COM1 in download mode. 2. Please use the cable provided by Xinje company. TH series Touchscreen User Manual...
  • Page 19 1. Turn on switch2 when TH power supply is cut off 2. Power on TH, connect TH with PC via Xinje download cable to download project 3. After the download process is over, cut off the power of TH, then turn off the switch2 4.

  • Page 20: Forced Download

    4-3-2 Forced download After the download is completed. if the TH cannot display the screen normally, you can try the forced download mode to update the system. 1 2 3 4 Step: Cut the power of TH, turn on switch2 Power on the TH, connect the cable then download the project After the download is completed, turn off switch2 then...
  • Page 21 COM1 port communication parameter COM1 port communication device TH series Touchscreen User Manual Page 21 of 81 MANUL018R2V1...

  • Page 22: Com2 Port

    4-4 COM2 port COM2 port has below functions: 1. Communicate with industry devices, such as PLC, inverter, meters… COM2 port pins definition Pins Name Meaning RS422 send + RS232 receive RS232 send RS485 + Signal ground RS422 send - RS485 - RDD- RS422 receive - RDD+...
  • Page 23 Note: Please refer to “TP connect with PLC” for the details of TH communicate with PLC. 3. Communicate with frequency inverter TH can communicate with various brands of frequency inverters. For the brands which are not in the list, user can select Modbus protocol or user-defined protocol. Mitsubishi FR series inverter Inovance MD series inverter Bosch Rexroth Indracontrol...

  • Page 24: Usb-A Port

    4-5 USB-A port TH has two USB-A ports ( accord with USB2.0 ). The functions are show as below: 1. Duplicate data, data import and export, transmission speed can be 480Mbps. USB-A port definition Pins Name Meaning +5V voltage signal DATA+ Data signal + DATA-...

  • Page 25: Usb-B Port

    4-6 USB-B port TH has one USB-B port ( accord with USB2.0 ), located in the back side of TH, the functions are shown as below: To download the data, the speed can up to 480Mbps. USB-B port definition: Pins Name Meaning +5V voltage signal...

  • Page 26: Preparation

    Touchwin software 5-1 Preparation 5-2 The construction of Touchwin 5-2 Tool Bar TH series Touchscreen User Manual Page 26 of 81 MANUL018R2V1...
  • Page 27 5-1 Title 1. Software version: V2.C and later versions. 2. Software source: visit Xinje website www.xinje.com to obtain the software or get from the products 3. OS requirements: Windows98/2000/XP/ME 4. Install steps: Open setup.exe Click “next” until show below window Enter the information in the space: serial number is ThingetTouchWin.

  • Page 28: The Construction Of Touchwin

    5-2 The construction of Touchwin 5-2-1 Screen Double click the Touchwin software, build a new project, then you can see the following screen: Status bar Project bar Screen edit area Menu Tool bar  Project bar: build, delete, copy, cut operation of the screen and window ...

  • Page 29: Screen

    5-2-2 Project bar Project bar contains the operation of screen and window. 1. Screen operation  Build a new screen Method 1: click in the element bar. Method 2: right click the screen in the project bar, then click insert. It shows the following window: ...

  • Page 30: File

    window cut, copy, delete select the window in the project bar, right click to select cut, copy or delete window. 5-2-2-1 File The file menu is shown as the following: 1. New: Build a new file 2. Open: Open a file 3.
  • Page 31  PFW set: Step1: Set the PFW register range, click “Add” to add the register in the list. Change the range then click “Modify”, it will show below message, click „Yes” to confirm the modify. Step2: Set the value in the range Double click the PFW range, it will show data setting window: 1.
  • Page 32 Setting:  Para tab:  Screen: Select the start screen number when TH is power on. Password: there are 9 levels password, the level 9 password has the highest priority. The higher level password can used to all the elements of lower level password. The password is used to protect the element or screen, when input the correct password, the button or screen can be used.
  • Page 33  Clock tab: 1. Export the current time to the register. 2. For example, object D0, so the real time will save in D0~D5. D0=year, D1=month, D2=day, D3=hour, D4=minute, D5=second. Please note the export time is hex number.  Panel tab: 1.
  • Page 34  Font: Set the font of the letter in the screen.  Project tab: Record the project name, author and remark.  Build SCADA It realizes the SCADA function in windows. Build the SCADA file, and double click it to simulate online.

  • Page 35: Edit

    5-2-2-2 Edit 1. Cut, copy, paste, undo These operations are used to the elements in the screen. Cut, copy, paste, undo Public unit, private unit 2. Replace 1. Replace register or coil 2. Find what: the object you want to replace 3.

  • Page 36: Part

    5-2-2-4 Part The “part” is used to edit the TH project, it is the same as the tool bar in the software. 5-2-2-5 Tool Tool menu is the same as the following tool bar. Option: Grid size: 1. Move Grid: set the min pixel when moving the element.

  • Page 37: Window

    5-2-2-6 Window 1. New: build a new window 2. Cascade: show all of the window in cascade mode. 3. Tile: show all the window in tiled mode. 4. Arrange icon: arrange all the icons again. 5-2-2-7 Help Show the Touchwin software version and copyright.

  • Page 38: Tool Bar

    5-2-3 Tool bar Icon Name Function Build a new project Open Open the file Save Save the file Cut the element Copy Copy the element Paste Paste the element Undo Undo the operation Help Check the software version information Text Input static text Display the text according to the value of register, Dynamic text...
  • Page 39 Draw arc Rectangle Draw rectangle Ellipse Draw ellipse Fold/polygon Draw fold and polygon Polygon block Similar to container Frame Draw 3D rectangle Add jpg or bmp format pictures Move animation make the movement animation of object Rotate animation Switch the picture Material library The picture library Date...
  • Page 40 Align left Align left the objects Align centre Align centre the objects Align right Align right the objects Align top Align top the objects Align middle Align middle the objects Align bottom Align bottom the objects Zoom out Zoom out the screen Zoom percent Zoom percent Zoom in...
  • Page 41 Create a simple project In this chapter, make a switch to control the PLC output, in order to explain how to make TH project. Note: Please make sure of the TH type and communication device type. It is important for the project download and device communication.

  • Page 42: Build A New Project

    6-1 Build a new Project 1. Open the Touchwin version 2.C.2 or above software. 2. Click File/New or to build a new project. 3. Select the correct TH type and com port device type TH type COM port device type 4.
  • Page 43 6. Finish the building process. 7. Click to save the project in the PC. TH series Touchscreen User Manual Page 43 of 81 MANUL018R2V1...

  • Page 44: Make A Simple Project

    6-2 Make a simple project Make a button on the screen, to control the Y0 output of Xinje XC series PLC. PLC output Y0 is ON output Y0 is OFF PLC COM port 1. Make a button:  Click , put the button on the screen. Change the object to Y0.
  • Page 45  Select button tab, change the text to reverse  Select the colour tab, change the button colours 2. Make the lamp  Click , put it on the screen, change the object to Y0.  Select the lamp tab, change the aspect of the lamp. TH series Touchscreen User Manual Page 45 of 81 MANUL018R2V1...

  • Page 46: Simulate Offline

     Select the twinkle tab, change the lamp state to stop twinkle.  Colour and position tab are similar to the button. 6-3 Simulate offline Do not have to download the project into the TH, you can simulate the project in the touchwin software.

  • Page 47: Simulate Online

    This means that the simulate online is not registered, you can only use it for 2 hours. If you want to use it for longer, please contact Xinje company to get register number. 3. Click ok to enter simulate online screen. Right click the screen to show below menu: ...

  • Page 48: Downloading The Project

    Connect TH USB-B port and PC with USB cable, power on the TH, click to download the project. 2. COM1 port and Xinje special cable  COM1 port downloading Change COM1 to download mode, please refer to chapter 4.3, power on the TH, click download the project.
  • Page 49 Application 7-1 Adjust the touch area 7-2 Photo application 7-3 Debug and download 7-4 Data backup (based on Touchwin V2.C.3) TH series Touchscreen User Manual Page 49 of 81 MANUL018R2V1...
  • Page 50 7-1 Adjust the touch screen The touch area adjustment function can make the component touch more precise. The adjustment steps: Step 1: Turn on the DIP switch 3, then power on the TH again, it will show the following screen: Turn on switch 3 Click the centre of the adjust cross Calibrate the touch panel...
  • Page 51 Step 3: Please see the detailed motion: Calibrate the touch panel Calibrate the touch panel Repeat as the target moves around the screen Repeat as the target moves around the screen 1. Click the centre of the cross 2. Click the centre of the cross on the top left Calibrate the touch panel Calibrate the touch panel...
  • Page 52 7-2 Photo application TH series LCD are 65536 true colours, it can make your photo display more vividly. This example will make the photo moving in parallel. Step1: Select the photo Click button in the tool bar to open the material library: Select the photo you want, and click “open”.
  • Page 53 Step3: Combine the photo with the motion track Drag your mouse to select the photo and the motion track, then right click the mouse, select “group”. Step4: Simulate offline Click to simulate offline your project. You can see the photo motion track. Step5: ...
  • Page 54 The animation property includes coordinate and control. 1. Coordinate  X: the position on X axis  Y: the position on Y axis  Escape time: the time that the photo moves from (X1,Y1) to (X2,Y2)  Key point X,Y: the coordinate of every motion position You can click the X, Y position and the escape time in the list and modify them.
  • Page 55 7-3 Debug and download TH series touch screen support debug download function. This function can be used when you are debugging your project in order to save your time. Compared with normal download function, this function has the following advantages: 1.
  • Page 56 7-4 Data backup Data backup includes the following contents: 1. Data collection and export, store the data of TH series HMI into USB device or SD card, produce CSV data base file. 2. Import CSV data, transfer the data of USB device or SD card to TH series HMI. ...
  • Page 57 7-4-1 Data export Export the data from TH to other device. Step1: , select “export CSV data” and add it. Click function button or function field When using function button, please select “pressing” or “releasing” as the trigger condition. When using function field, please select the trigger condition as you need. TH series Touchscreen User Manual Page 57 of 81 MANUL018R2V1...
  • Page 58 Step 2: Double click “export CSV data”, it shows the following window: This window includes destination, import, save and date time tab. 1. Destination tab Device ID: set the object device number which you want to export data, “dynamic set” can connect the D register with the device ID.
  • Page 59 When “add number after name” and “dynamic set” are both selected, “dynamic set” has priority. Named by date: the file name is added the date. When exporting the data several times at the same day, it will add the data title in the file automatically. For example: Export the data the first time on 8/18/2009...
  • Page 60 4. Control tab This tab is used to control the export. Execute status: To show if it is in exporting state via bit state. If the bit is ON, TH is exporting data. Execute result: Show the export result state via the register state. ...
  • Page 61 History data map Function filed 1. Data change every 1 second 1. Collect data in loop PSW300=PSW300+10 mode Value 2. Data source: 2. PSW data change process: PSW300 1 second：PSW300=0； 3. Save object: 2 second: PSW300=10； registers start from 3 second：PSW300=20； PSW400 ；...
  • Page 62 Add the arithmetic PSW300=PSW300+10 Note: Please see the TP touch screen manual for this content. 2. Data collect: use history data map to collect the data every 1 second, use PSB300 to control if it is need to collect. ,add it in the screen, change the “trend source” tab. Click Next, change the display tab: page data is 5, control is PSB300.
  • Page 63 Page data:5, show 5 numbers each screen Total data:10, it can collect 2 screens data Pick period: 1 second, collect the data every 1 second. Control:PSB300, control the ON/OFF of the data collection by PSB300 Change the save tab: save the data in the registers start from PSW400. Add a button, to control the stop and start of the collection process.
  • Page 64 Double click the “export CSV file” to continue the setting: Device ID: 1, there is one U disk device. Path/File: name the file to SJDC.csv, re- export the title. Data tab Register capacity: 10 Register mode: loop, to correspond to the history trend map Format: decimal TH series Touchscreen User Manual...
  • Page 65 Save tab Save the data in PSW400 Date time tab Date time: export the date and time to the .csv file. Now the data export has been done. Via the simulate offline, you can monitor the data change and operate the button. Turn on the button to start the history data map...
  • Page 66 <B> Data export in line mode In industry system, HMI is seemed as control and monitor terminal. It can be used to set all kinds of parameters directly. In order to check the history data, use data export function to complete the data management.
  • Page 67 Double click the export CSV data to change the parameters: Destination tab: Device ID: 1 is the U disk number Change the file name to SJDX.csv, export the data to this file. Data tab: Each group of parameters includes 5 values, export 1 group parameter each time, so the register capacity is 1.
  • Page 68 Save tab: Set the export object to PSW500, make it the same as the data input button address. Example: It has not referred to date and time, so do not have to set them. The screen has been done, please see the following picture: Data input Data export Run the project, and you will see the following result:...
  • Page 69 7-4-2 Import the C SV data The purpose is to import the data from the SD card or U disk to TH register. Step1: Use function button or function field , select import CSV data function. Step2: Double click import CSV data, change the parameters as the following: 1.
  • Page 70 When start ID is 5, import these data. When start ID is 10, import these data. When the start ID is 0 or 1, the import data is the first group. 2. Data tab Register capacity: the import data group quantity Register mode: Loop: the data will be stored in the object...
  • Page 71 3. Save tab: The import registers address. 4. Control tab: Execute status: to show if it is in importing state via bit state. If the bit is ON, TH is importing data. Execute result: show the import result state via the register state. 0- import failed 0- import target device does not exist 1- the memory is not enough...
  • Page 72 In TH touch screen, the data store address starts from PSW400. The realize steps: Step1: use function button or function field . Set as the following: Step2: build the import data group selection button. Put a data input button on the screen----- , change the parameters: Change the object to PSW500 and be constant with the...
  • Page 73 Step3: double click “import CSV data”. Device ID: 1 Path/File: SJDR.csv, must be the same as the object import file. Fix name means importing from the same file. Start ID: dynamic appoint PSW500. Import tab: Register capacity: 10, it means 10 groups of data Register mode: line Add the title: there are 4 rows of data.
  • Page 74 Date/time tab: Because the import data has time and date, select this item. Step4: show the import data start from PSW400 in “data table” Change the parameters: Object tab: The object is PSW400, the same to the data import address. TH series Touchscreen User Manual Page 74 of 81 MANUL018R2V1...
  • Page 75 Common tab: Set the all records, page records as the left window. Column tab: Add the text as the left window. Set the date time item to time format. The data table is finished, please see the following screen: TH series Touchscreen User Manual Page 75 of 81 MANUL018R2V1...
  • Page 76 Step5: Connect the mobile device and TH, click the import data button, monitor the data in “data table”. Name Length Width Height Date time Group 1 2009-08-10 12：10：10 Group 2 2009-08-10 13：10：10 Group 3 2009-08-10 14：10：10 Group 4 2009-08-10 15：10：10 Group 5 2009-08-10 16：10：10 Group 6...
  • Page 77 TH series interior objects This chapter will introduce the interior objects of the TH. The interior objects contain PSB(bit register), PSW(word register), PFW(word register). Note: 1. Only when the advanced function is opened, the special interior objects can be used. 2.
  • Page 78 Word register PSW Register Function Remark PSW0 Start screen No. PSW1 Current screen No. PSW20 Screen width ( read only ) PSW21 Screen height ( read only ) PSW26 PSB amounts ( read only ) PSW27 PSW amounts ( read only ) PSW28 PFW amounts Occupy PSW28、PSW29 ( read only )
  • Page 79 Word register PFW Register Function Remark PFW1 The screen No. after power on PFW2 Background colour setting PFW10 Screen saver start time PFW11 The screen number of screen saver PFW20 COM1 baud rate 4800、9600、19200、38400、115200、187500 PFW21 COM1 data bit 7、8 PFW22 COM1 stop bit 0-1 bit, 1-1.5 bits, 2-2 bits PFW23...
  • Page 80 Documentation Reference Document Number Revision Date MANU L018 22/08/2011 XINJE IS A REGISTERED TRADEMARK OF XINJE ELECTRICAL CO.LTD. REPLICATION OF THE INFORMATION CONTAINED WITHIN THIS DOCUMENT WITHOUT PRIOR NOTIFICATION AND AGREEMENT IS PROHIBITED. Engineered and supplied by: International partners with: Web: www.listo-ltd.com...
  • Page 81 TH series Touchscreen User Manual Page 81 of 81 MANUL018R2V1...
