Dynojet POWER COMMANDER V Installation Instructions page 4

FIG.D
FIG.E
22-059 www.powercommander.com
PCV Harness
Ground

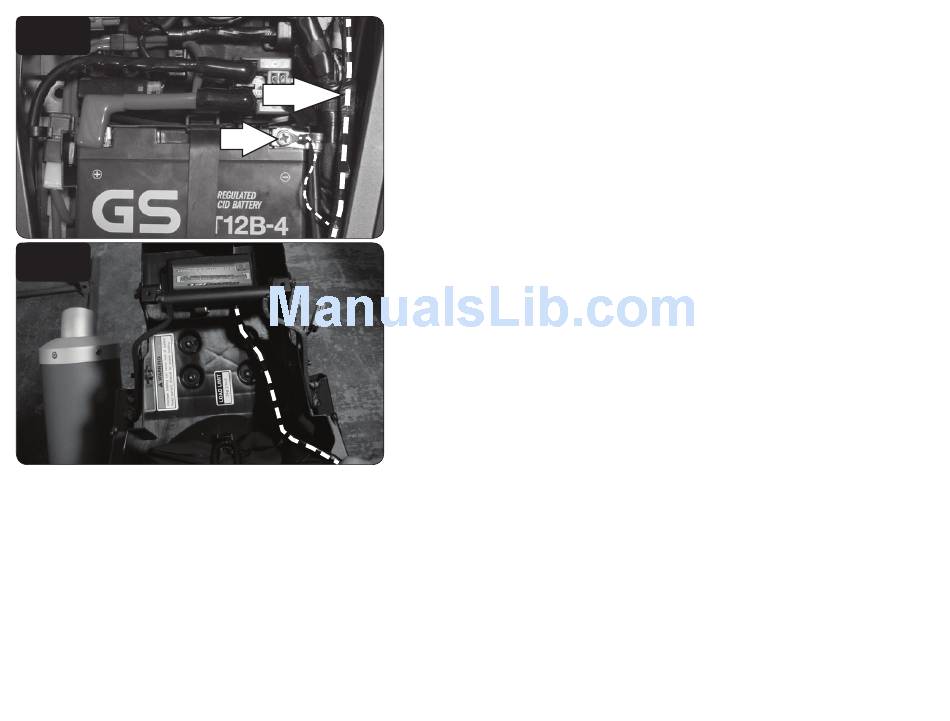

6 Route the PCV wiring harness to the tail section following just inside the left
side frame rail.
7 Secure the PCV ground wire with the ring lug to the negative (-) side of the
bike's battery (Fig. D).
8 Secure the PCV module inside the tail section, using the supplied Velcro
(Fig. E).
Clean the surface with the supplied alcohol swab prior to applying the Velcro.
9 Lower and secure the fuel tank.
10 Reinstall the seats.
Optional inputs:
Speed - PINK wire from speed sensor. Connector is located under the fuel
tank on the right hand side. Connector has PINK, ORANGE/RED, and BLACK/
WHITE wires.
Temperature - GREEN/WHITE wire on pin #31 of the ECU
12v source for Auto-tune - BLUE wire of taillight connector. Connector is
located by the ECU. It is a WHITE 3-pin connector with BLACK, BLUE, and
YELLOW wires.
2002-2003 Yamaha R1 - PCV - 4
