Dynojet POWER COMMANDER V Installation Instructions page 3

FIG.A
Unplug
FIG.B
FIG.C
22-059 www.powercommander.com
1 Remove the rider's and passenger's seat (or solo cover).
2 Lift the front of the fuel tank and prop it up with a prop rod.
Unplug

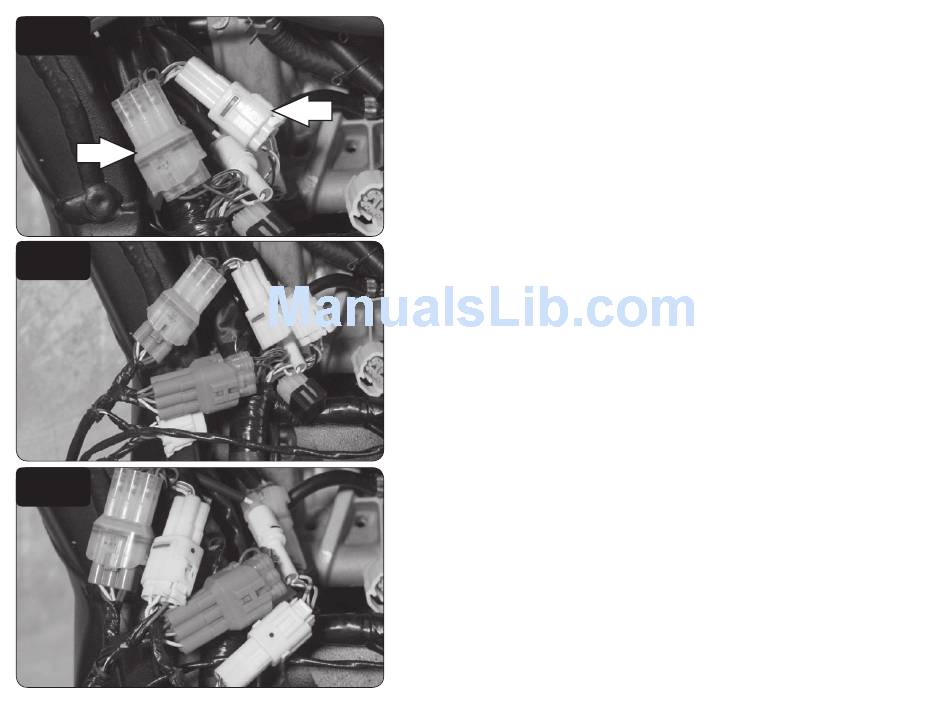

3 Locate and unplug the stock 6-pin and 4-pin connectors for the bike's fuel
injector sub-harness and throttle position sensor (Fig. A).
These connectors are located behind the throttle bodies under the fuel tank on
the left hand side of the bike.
4 Plug the pair of 6-pin connectors on the PCV wiring harness in-line of the
stock 6-pin connectors (Fig. B).
5 Plug the pair of 4-pin connectors on the PCV wiring harness in-line of the
stock 4-pin connectors (Fig. C).
2002-2003 Yamaha R1 - PCV - 3
