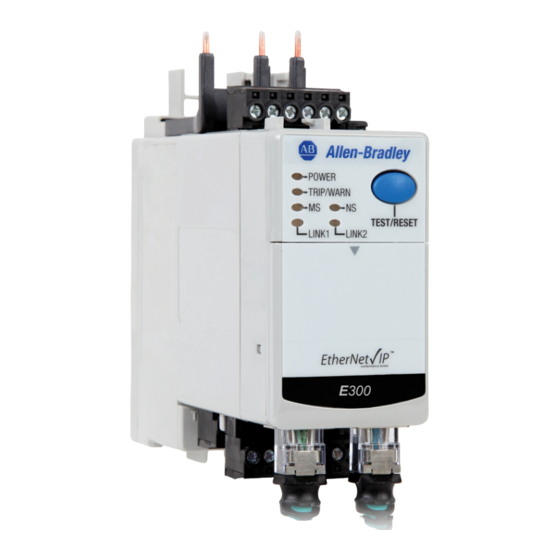

Allen-Bradley E300 Installation Instructions

Installation Instructions
E300 / E200 Sensing Module
(Cat 193-ESM-_ _ _-200A-_ _ _; 592-ESM-_ _ _-200A-S4)
WARNING: To prevent electrical shock, disconnect from power source before installing or servicing. Follow NFPA 70E requirements. Install in suitable enclosure. Keep free from contaminants.
Installation, adjustments, putting into service, use, assembly, disassembly, and maintenance shall be carried out by suitably trained personnel in accordance with applicable code of practice. In case of
malfunction or damage, no attempts at repair should be made. The product should be returned to the manufacturer for repair. Do not dismantle the product.
Additional Resources:
1) Go to http://www.literature.rockwellautomation.com;
Features
193-ESM-_ _ _-200A-D180
100-D Contactor
Power Terminals
592-ESM-_ _ _-200A-S4
Contactor
Power
Terminals
Contactor
Mounting
Bracket
193-ESM-_ _ _-200A-T
Power Terminals
For 193-ESM-_ _ _-200A-T:
Power wires are to be fastened
to the mounting surface at a
maximum of 14 inches from
the end of the power terminals
on both the line and load side.
L3
L2
L1
2) Go to Search. Type in publication number: 193-UM015
T1
Mounting Holes
for M5 Screw
T1
T1
Mounting Holes
for M5 Screw
T2
T3
T2
T3
T2
T3
