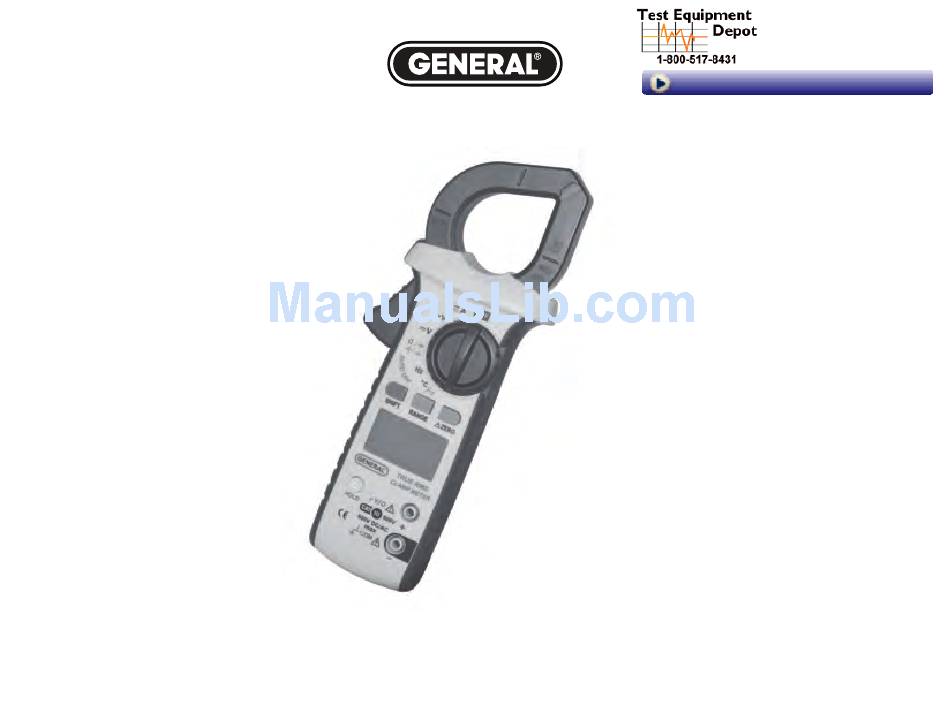

- Page 1 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com DAMP60/DAMP68 USER’S MANUAL DAMP60 AUTO RANGING AMP CLAMP METER/ DAMP68 AUTO RANGING TRUE RMS AMP CLAMP METER...
- Page 2 TABLE OF CONTENTS TITLE PAGE FEATURES..................3 FUNCTIONS DESCRIPTION............4-6 SAFETY INFORMATION..............7-11 OPERATING INSTRUCTIONS............12-22 MAINTENANCE................22 SPECIFICATIONS................23-27 SAFETY COMPLIANCE..............27...
-
Page 3: Features
FEATURES DAMP60 DAMP68 • Ergonomic Design • Ergonomic Design • Rugged Over-mold Housing • Rugged Over-mold Housing • Easy to use • Ideal for HVAC/R Applications • Data Hold, Max Hold • True RMS • Auto Ranging • Analog Bar Graph •... -
Page 4: Functions Description
DAMP60 is a 3-1/2 digit auto ranging digital display clamp meter. It measures DC/ACV; AC Current; Resistance; Diode Test; Continuity Buzzer and Frequency. DAMP68 is a 3-3/4 digit auto/manual ranging digital display clamp meter with true RMS measurement. - Page 5 ● INSTRUMENTS OVERVIEW 1. LCD Display 2. Clamp Jaw 3. Function Switch 4. Backlight (DAMP60) (DAMP68) Data Hold /Backlight 5. Max Hold (DAMP60) ZERO (DAMP68) 6.SHIFT 7.Hold (DAMP60) Range (DAMP68) 8. Jaw Release 9. Input Terminal...
- Page 6 LCD Display DAMP60 DAMP68...
-
Page 7: Safety Information
◆Read “Safety Information” before using this meter. ◆These multimeters are battery operated, with a digital display. ◆These Meters comply with IEC61010-1， 2001 CAT Ⅲ 600V. Refer to “GENERAL SPECIFICATIONS” for more information. ◆In this manual, a Warning identifies conditions and actions that pose hazards to the user. - Page 8 Warning To avoid possible electric shock or personal injury, and to avoid possible damage to the Meter or to the equipment under test, comply with the following practices: 1. Do not use the Meter in a manner not specified by this manual or the safety features of the Meter may be impaired.
- Page 9 Do not measure voltage when the function/range switch is set on the resistance (ohms), current, capacitance or temperature settings. Never measure current when the meter is set on the resistance (ohms), capacitance or temperature settings. Never measure AC voltage when the meter is set on DC voltage or DC current settings. Setting the meter on the incorrect function may burn out some of the internal circuitry and may pose a safety hazard.
- Page 10 Do not operate the Meter with the case (or part of the case) removed. . Use only two “AAA” 1.5V batteries (DAMP60), or three “AAA” 1.5V batteries (DAMP68), properly installed in the Meter case, to power the Meter. Do not use rechargeable batteries.
- Page 11 Table 1．Electrical Symbols Symbol Description Symbol Description AC (Alternating Fuse Current) DC (Direct Current) Double Insulated Caution, risk of Risk of danger. Important electric shock. Information. Refer to the Hazardous voltage. manual. Battery (Low battery) Earth ground when shown on display Diode Continuity/Beeper AC or DC...
-
Page 12: Operating Instructions
OPERATING INSTRUCTIONS Button Description • Data Hold (DAMP60) Press the “H” (Hold) button to toggle in and out of the data hold mode. Use the data hold feature to lock the measurement reading on the display. • Max button (DAMP60) Press the “Max”... - Page 13 DAMP68: Ω range, press SHIFT button to select resistance or diode or continuity or capacitance function. °C °F °C °F range, press SHIFT button to select temperature measurement function. range, press SHIFT button to select ACA or DCA function. • RANGE button (DAMP68) The meter defaults to auto-ranging mode when powered on.
- Page 14 (1) Set the rotary switch at (DAMP60) or (DAMP68) position. For DAMP68, AC Current is default setting, press SHIFT button to select DC Current function. Before DC Current ZERO button to clear last reading from the display.
- Page 15 Notes: • Clamp the jaw around one conductor only; • Close the jaw completely; • Center the wire in the jaw for highest accuracy.
- Page 16 • DC Voltage Measurement Warning Do not measure voltage higher than 600V. It may cause damage to internal circuit. If the voltage is over 1000 VDC, the beeper will sound for warning continuously, designating an over-range measurement. (1) Set the function/range switch to position.
- Page 17 • AC Voltage Measurement Warning Do not measure voltage higher than 600V. It may cause damage to internal circuit. If the voltage is over 750 VAC, the beeper will sound for warning continuously, designating an over-range measurement. Set the function/range switch to position.
- Page 18 Ω (1) Turn the rotary switch to (DAMP60) or (DAMP68). Make sure power Ω is disconnected from the circuit to be measured. Resistance function is the default setting.
- Page 19 • Diode Check Ω Ω (1) Turn the rotary switch to (DAMP60) or (DAMP68) position. Press SHIFT button to select diode function. (2) Insert the black and red test leads into the COM and V/Ω input terminals respectively. (3) Connect the red probe to the anode side and the black probe to the cathode side of the diode being tested.
- Page 20 • Continuity Measurement Ω Ω (1) Turn the rotary switch to (DAMP60) or (DAMP68) position. Press SHIFT button to select continuity function. (2) Insert the black and red test leads into the COM and V/Ω input terminals respectively. If the resistance is ≤ 50 Ω, the beeper will sound continuously.
- Page 21 To measure temperature, do the following: °C °F °C (1) Turn the rotary switch to position. The feature is default setting. Press SHIFT °F butto n to select feature. Connect a K-Type thermocouple to the Meter’s COM and V/Ω terminals, making sure the thermocouple plug marked with “+”...
-
Page 22: Maintenance
• Frequency Measurement (1) Turn the rotary switch to Hz position. (2) Insert the black and red test leads into the COM and V/Ω input terminals respectively. (3) Measure the frequency by touching the probes to the desired test points of the circuit. (4) Read the measured frequency on the display. -
Page 23: Specifications
GENERAL SPECIFICATIONS ITEM NO. FUNCTIONS DAMP60 DAMP68 Count 2000 4000 Analog Bar graph Digital Backlight Display Low battery indicator Overload indication True RMS measurement Auto/Manual Auto Auto/Manual Auto power off 15 minutes 15 minutes ZERO... - Page 24 ITEM NO. FUNCTIONS DAMP60 DAMP68 Over-molding rubber case 400.0mV/ 1.999V/19.99V/ 4.000V/ Range 199.9V/600V 40.00V/ 400.0V/600V ±(1.0%+5) Accuracy ±(1.0%+5) ±(2.0%+10) for 400.0 mV only 199.9mV/1.999V / 400.0mV/ Range 19.99V/199.9V / 4.000V/40.00V/ 600V 400.0V/600V Accuracy ±(0.8%+5) ±(0.8%+5) Range 199.9/600A 400.0A Accuracy ±(3.0%+5) ±(3.0%+10)
- Page 25 ITEM NO. FUNCTIONS DAMP60 DAMP68 199.9Ω/1.999KΩ/ 19.99KΩ/ 400.0Ω/4.000KΩ/ Range 199.9KΩ/ 40.00KΩ/400.0KΩ/ 1.999MΩ/ 4.000MΩ/40.00MΩ 19.99MΩ Resistance (Ω) <1MΩ±(1.0%+5) <1MΩ±(1.0%+5) Accuracy ≥1MΩ±(2.0%+5) ≥1MΩ±(2.0%+5) Continuity (audible) ≤ 50Ω ≤ 50Ω Open Diode test circuit 1.5V 2.7V voltage 40.00nF/ 400.0nF/ 4.000µF/ Capacitance Range 40.00µF/ 400.0µF/...
- Page 26 ITEM NO. FUNCTIONS DAMP60 DAMP68 99.99Hz/ 999.9Hz/ 10Hz～1999Hz 9.999KHz/ 99.99KHz/ Range Input Voltage 999.9KHz/ Frequency counter range: 9.999MHz 0.2~30Vrms Input Voltage range: 0.2~600Vrms Accuracy ±2.0% ±(3%+10) -40° to 752°F Range (-40° to 400°C) Temperature Accuracy -40° to 4°F ±(8%+8) 4° to 32°F ±(1.2%+7) 32°...
-
Page 27: Safety Compliance
ITEM NO. FUNCTIONS DAMP60 DAMP68 32° to 104°F 32° to 104°F Operating Temperature (0° to 40°C) (0° to 40°C) ≤ 75RH ≤ 75RH Power source 2 –AAA 1.5V 3-AAA 1.5V Manual 20AWG 20AWG Test Lead Ⅲ Ⅲ 600V 600V Carrying Case... -
Page 28: Specifications
99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com DAMP60/DAMP68 User’s Manual NOTICE - WE ARE NOT RESPONSIBLE Specifications subject to change without notice FOR TYPOGRAPHICAL ERRORS. ©2009 GENERAL TOOLS & INSTRUMENTS MAN#DAMP60/DAMP68 7/09 ™...
