DM8252/8252RS
HIGH RESOLUTION

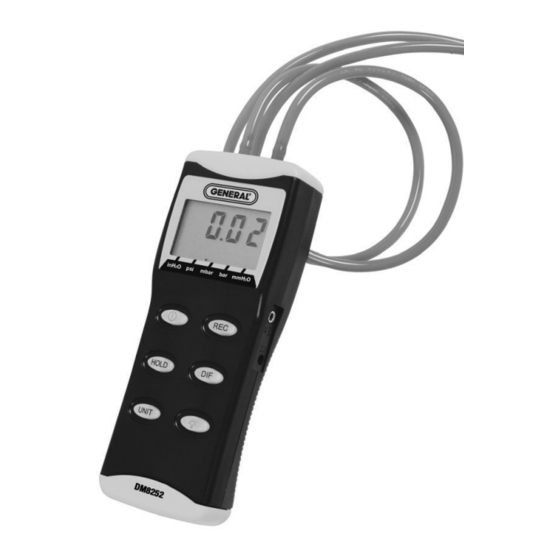

DIGITAL MANOMETER
Visit us at www.TestEquipmentDepot.com
DM8252
USER'S MANUAL
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
DM8252RS
INCLUDES 4 RUBBER
STOPPERS FOR DUCT
SMOKE DETECTORS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DM8252 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for General DM8252

Summary of Contents for General DM8252

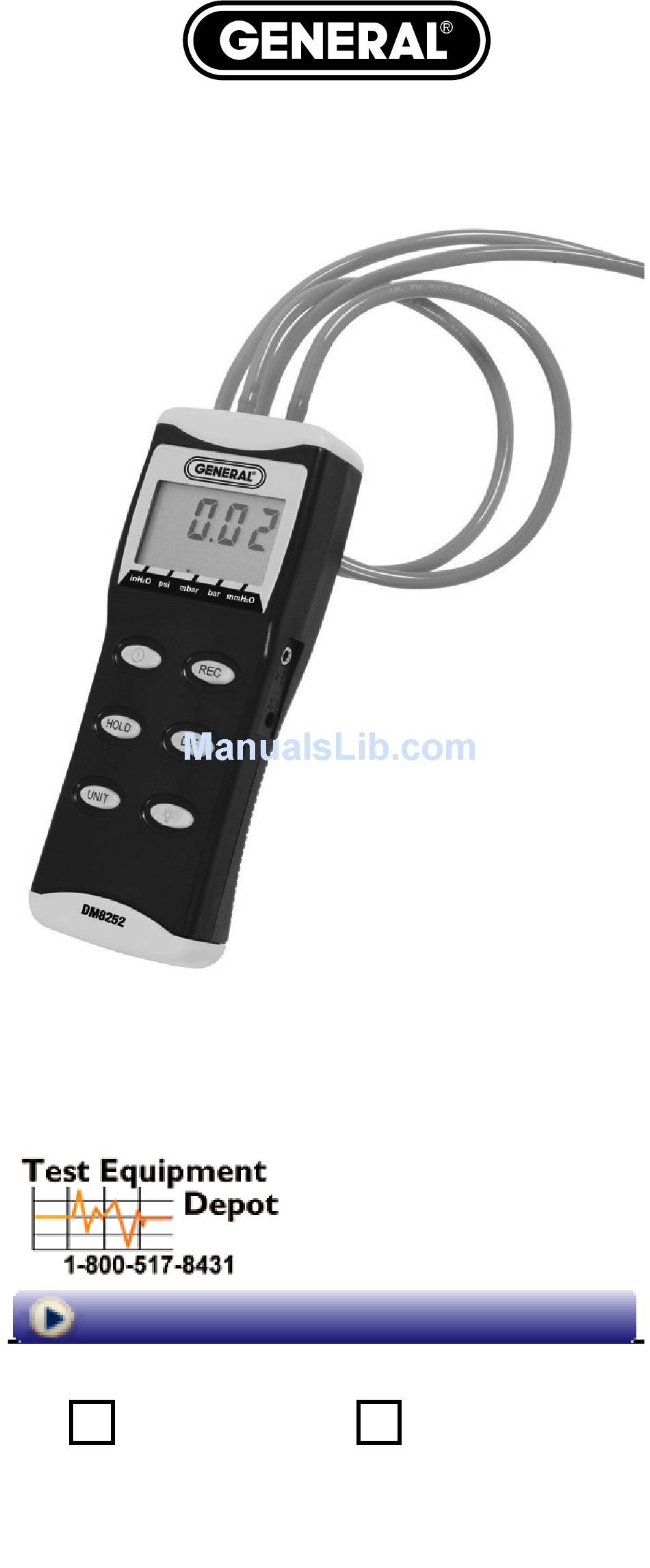

  • Page 1 DM8252/8252RS USER’S MANUAL HIGH RESOLUTION DIGITAL MANOMETER 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com DM8252 DM8252RS INCLUDES 4 RUBBER STOPPERS FOR DUCT SMOKE DETECTORS...
  • Page 2 INTRODUCTION...
  • Page 3 Meter has 5 selectable units of measure: InH O, psi, mbar, bar, Please check tubing is not leaking or damaged before using. CONVERSION & RESOLUTION 1mbar= 1mbar= Resolution Inch of H2O 0.01 0.401 0.004 0.0145 mbar 0.001 0.001 mm of H2O 10.2 MANOMETER QUICK START Unscrew battery compartment on...
  • Page 4 HOLD HOLD Note:...

  • Page 5: Controls And Indicators

    CONTROLS AND INDICATORS HOLD DATALOGGER REC AVG MAX MIN BAT mbar Primary Data Screen displays pressure value. 2. "-" Minus pressure display. 3. MAX MIN pressure recorded. 4. REC starts recording mode and displays max./min. pressure recorded. 5. AVG Average records (N/A).

  • Page 6: Auto Power Off

    "-" Negative "+" Positive pressure pressure AUTO POWER OFF (SLEEP FUNCTION) HOLD "n" HOLD Fig. A MODE OPTIONS...
  • Page 7 HOLD UNIT HOLD DISABLE SLEEP MODE ZERO SETTING Hold 2 sec. HOLD SELECT UNIT / SKIP CAL. Power, Unit and Backlight. Fig. B mbar...
  • Page 8 Fig. C mbar Fig. D mbar HOLD Fig. E mbar "0.0" Fig. F mbar...
  • Page 9 UNIT " InH O","psi", "mbar", " bar", "mmH O" Fig. G mbar Fig. H mbar...

  • Page 10: Maintenance

    MAINTENANCE Cleaning: CALIBRATION MODE...
  • Page 11 "CA" "psi" Fig. I ps i "SA" "CA" Fig. ps i...
  • Page 12 "-1.600" "CA" Fig. K ps i "SA" "CA" UNIT , "End" "CA" Fig. L ps i UNIT "SA" UNIT...

  • Page 13: Troubleshooting

    Calibration point reference MANUAL ZERO SETTING HO LD "- 0 .000" Fig. M mbar TROUBLESHOOTING • Power on but no display. • BAT indication. • No Display.
  • Page 14 • Err.1. " Err.1" Fig.O • Err.2. "Err. 2" Fig. P • Err.3 Err.3" Fig. Q • Err.4. Err.4"...

  • Page 15: Replacing The Battery

    P.S. Err.4 Fig.R • E1OL or E2UL. REPLACING THE BATTERY Replace your “9V” battery when: To replace the battery:...

  • Page 16: Operating Conditions

    OPERATING CONDITIONS MATERIALS SUPPLIED This package contains: OPTIONAL ACCESSORIES...

  • Page 17: Specifications

    SPECIFICATIONS Pressure 138 mbar = 0 ~ 55.4 inH2O Range = 0 ~ 1410 mmH2O = 0 ~ 0.138 bar = 0 ~ 2 psi See Page 2 data sheet Resolution Accuracy 0.3% of full scale at 25°C 7.2" x 2.8" x 1.2" Dimensions 182 x 72 x 30mm Approx.

  • Page 18: Warranty

    WARRANTY...

  • Page 19: Return Authorization

    RETURN AUTHORIZATION...
  • Page 20 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com NOTICE - WE ARE NOT RESPONSIBLE DM8252/DM8252RS User’s Manual Specifications subject to change without notice FOR TYPOGRAPHICAL ERRORS. ©2009 GENERAL TOOLS & INSTRUMENTS MAN#DM8252/DM8252RS 08/09 ™...
