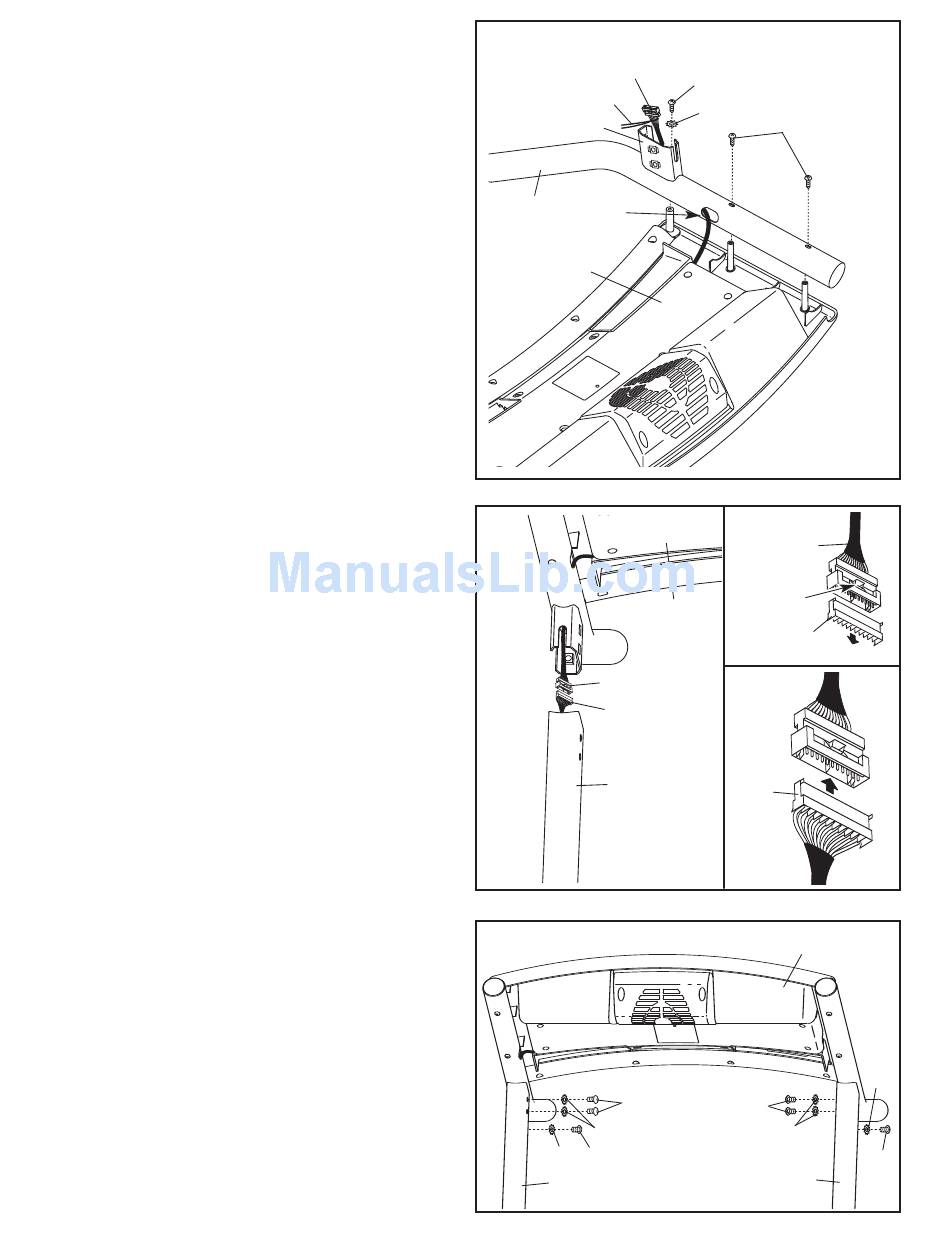

7. Set the Console (91) face-down on a soft sur-
face to avoid scratching the Console. Hold the
Right Handrail (33), which has a large hole in
the indicated location, near the Console.
Next, insert the console wire into the hole in the
side of the Right Handrail (33). Using
needlenose pliers, pull the console wire out of
the hole near the bracket on the Right Handrail.
Next, set the Right Handrail (33) on the Console
(91). Make sure that no wires are pinched.
Start a Crossbar Screw (85) with a Crossbar
Star Washer (7) into the Right Handrail, and
then start two Console Screws (10) into the
Right Handrail. Tighten the Crossbar Screw
and then tighten the two Console Screws; do
not overtighten the Screws.
Attach the Left Handrail (not shown) to the
Console (91) in the same way. Note: There are
no wires on the left side.
8. See drawing 8a. If there is a guard on the end of
the Console Wire, press the indicated tab and re-
move the guard with needlenose pliers. Discard
the guard.
With the help of a second person, hold the Console
(91) near the Right Upright (54).
Remove the strap from the Wire Harness (39).
Connect the Wire Harness to the console wire.
Make sure to connect the connectors prop-
erly (see drawing 8b). The connectors should
slide together easily and snap into place. If
they do not, turn one connector and try again. IF
THE CONNECTORS ARE NOT CONNECTED
PROPERLY, THE CONSOLE MAY BE DAM-
AGED WHEN THE POWER IS TURNED ON.
Insert the connectors and the excess wire into
the Right Upright (54).
9. Attach the Console (91) to the Right Upright (54)
and the Left Upright (53) with six Handrail Bolts
(8) and six Handrail Star Washers (5). Make sure
that no wires are pinched. Start all six
Handrail Bolts and then tighten them.
With the help of a second person, carefully lower
the Uprights (53, 54) to the floor.
7
Console
Wire
Tie
Bracket
Large
33
Hole
91
8
Console Wire
39
54
9
8
5
8
5
54
9
85
7
10
8a
Console
Wire
Tab
91
Guard
8b
39
91
8
5
53
5
8
