Inlet Valve Assembly - LG WM2801H Series Training Manual

Front-loader washer
Hide thumbs

Advertisement

Table of Contents
TRAINING MANUAL
The valve assemblies introduce water to the tub and cause dispensing of the various
laundry products. Hot water enters only through the main wash compartment. Cold
water is directed by the four solenoids to the various laundry products.
(See the dispenser section on pages 35 ~ 36.)
The solenoids can be checked in TEST MODE. (See page 54.) Use a multimeter to verify
that each solenoid is receiving 120 V
proper valve is dispensing water to the appropriate dispenser compartment. This
procedure can also be used to determine that the valves are connected correctly and the
hoses are routed to the appropriate compartments after a repair.
WM2801H*A

INLET VALVE ASSEMBLY

during the TEST MODE. Also verify that the
AC

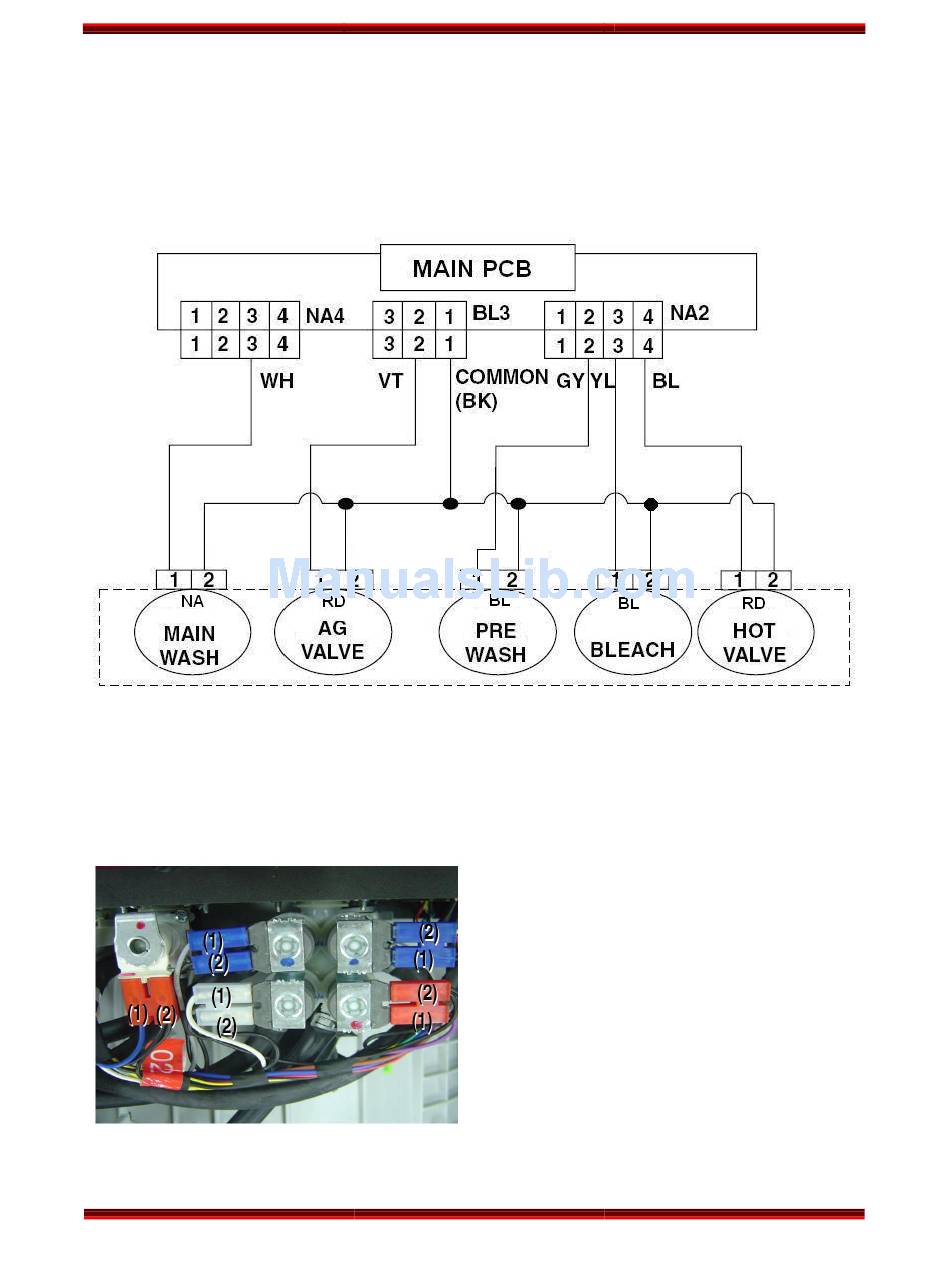

For all solenoids:
With the solenoid connected and
energized, the voltage should be 120 V
With the connector removed from the
solenoid, the resistance should be
1.0 Ω ± 20%.
Page 81
WM2801H*A
.
AC
Washing Machine
