Instruction No
Instruction No
Version
Version
30732986
30732986
1.2
1.2

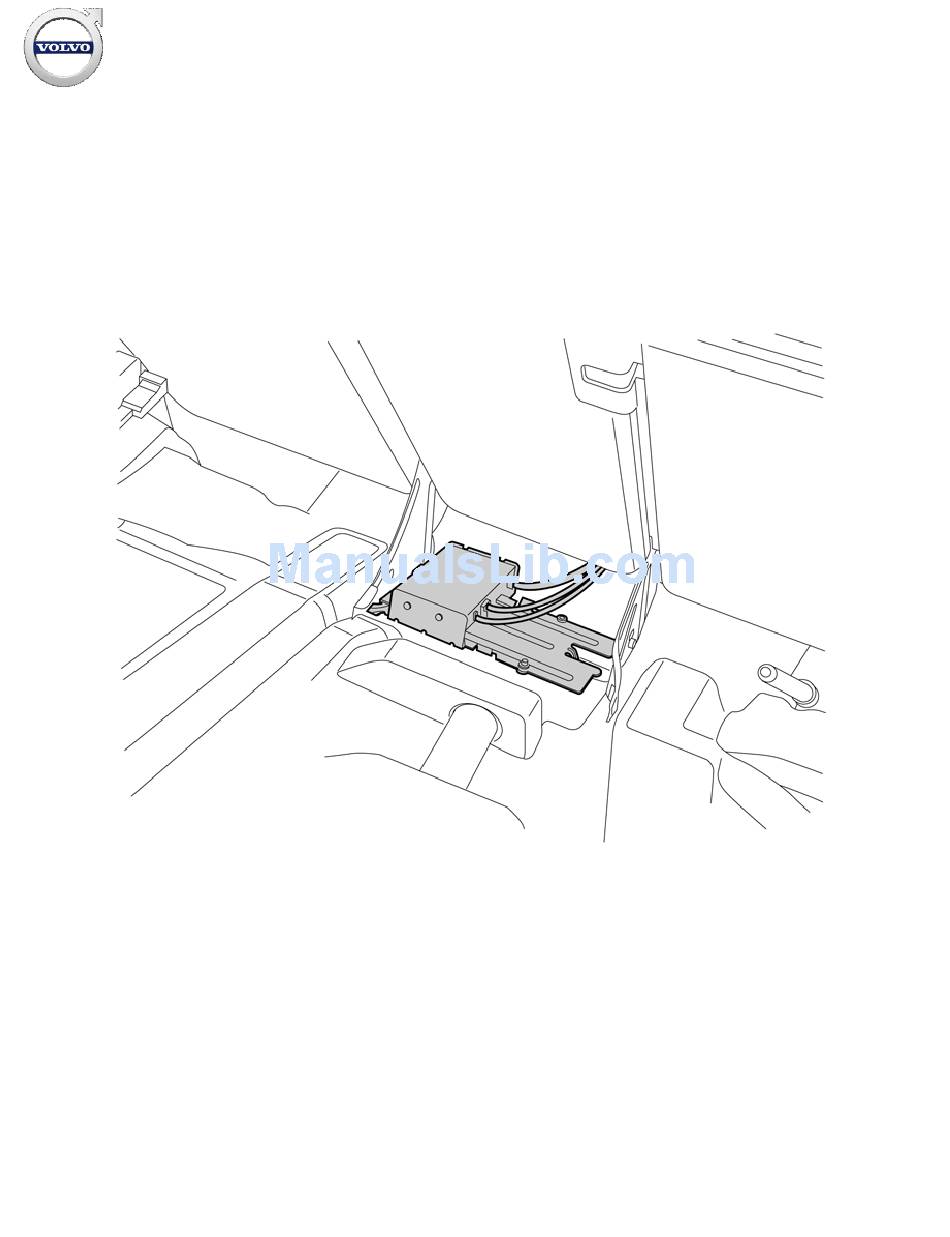

IMG-261923
IMG-261923
© Volvo Car Corporation
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
Part. No.
Part. No.
30732863
30732863
Satellite radio, Sirius
Satellite radio, Sirius
Satellite radio, Sirius- 30732986 - V1.2
Page 1 / 13
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Volvo 30732863
Summary of Contents for Volvo 30732863
- Page 1 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Instruction No Instruction No Version Version Part. No. Part. No. 30732986 30732986 30732863 30732863 Satellite radio, Sirius Satellite radio, Sirius IMG-261923 IMG-261923 © Volvo Car Corporation Satellite radio, Sirius- 30732986 - V1.2...
- Page 2 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Equipment IMG-275777 A0000162 IMG-239664 IMG-261924 © Volvo Car Corporation Satellite radio, Sirius- 30732986 - V1.2 Page 2 / 13...
- Page 3 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-276205 © Volvo Car Corporation Satellite radio, Sirius- 30732986 - V1.2 Page 3 / 13...
- Page 4 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-213320 © Volvo Car Corporation Satellite radio, Sirius- 30732986 - V1.2 Page 4 / 13...
- Page 5 Explanatory text is also given for more complicated steps. In the event of any problems with the instructions or the accessory, contact your local Volvo dealer. Note! Some steps in these installation instructions are presented with illustration only.
- Page 6 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-291603 IMG-291604 Applies to cars with subwoofer © Volvo Car Corporation Satellite radio, Sirius- 30732986 - V1.2 Page 6 / 13...
- Page 7 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to cars with subwoofer Remove the subwoofer's rear plastic nuts. Fold the backrest forward. IMG-276161 Disconnect the connectors from the subwoofer. Remove the screw from the right-hand mounting. IMG-261927 © Volvo Car Corporation Satellite radio, Sirius- 30732986 - V1.2...
- Page 8 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the screw from the left-hand mounting. IMG-261928 IMG-276183 Applies to all models © Volvo Car Corporation Satellite radio, Sirius- 30732986 - V1.2 Page 8 / 13...
- Page 9 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to all models IMG-261930 Install the satellite unit with bracket on the reverse of the rear backrest. Install the screw and torque tighten to 10 Nm (7.5 lbf.ft.). Connect routed wiring to the device. In the connection where the device is to be positioned.
- Page 10 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to cars with subwoofer IMG-276203 IMG-261934 © Volvo Car Corporation Satellite radio, Sirius- 30732986 - V1.2 Page 10 / 13...
- Page 11 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-261935 Take the fiber optic adapter cable from the kit and connect the male connector to the fibre optic cable (1), which was disconnected from the subwoofer, to the female connector (2) on the adapter cable.
- Page 12 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-276204 Applies to all models Applies to all models IMG-291605 © Volvo Car Corporation Satellite radio, Sirius- 30732986 - V1.2 Page 12 / 13...
- Page 13 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-291606 Download software for RDAR (Remote Digital Audio Receiver) according to the service information in VIDA. IMG-242268 © Volvo Car Corporation Satellite radio, Sirius- 30732986 - V1.2 Page 13 / 13...
