Apricorn Aegis Padlock DT User Manual

Usb 3.0 desktop drive
Hide thumbs Also See for Aegis Padlock DT:
Table of Contents

Advertisement

Quick Links

Download this manual
Padlock DT
Aegis
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aegis Padlock DT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Apricorn Aegis Padlock DT

Summary of Contents for Apricorn Aegis Padlock DT

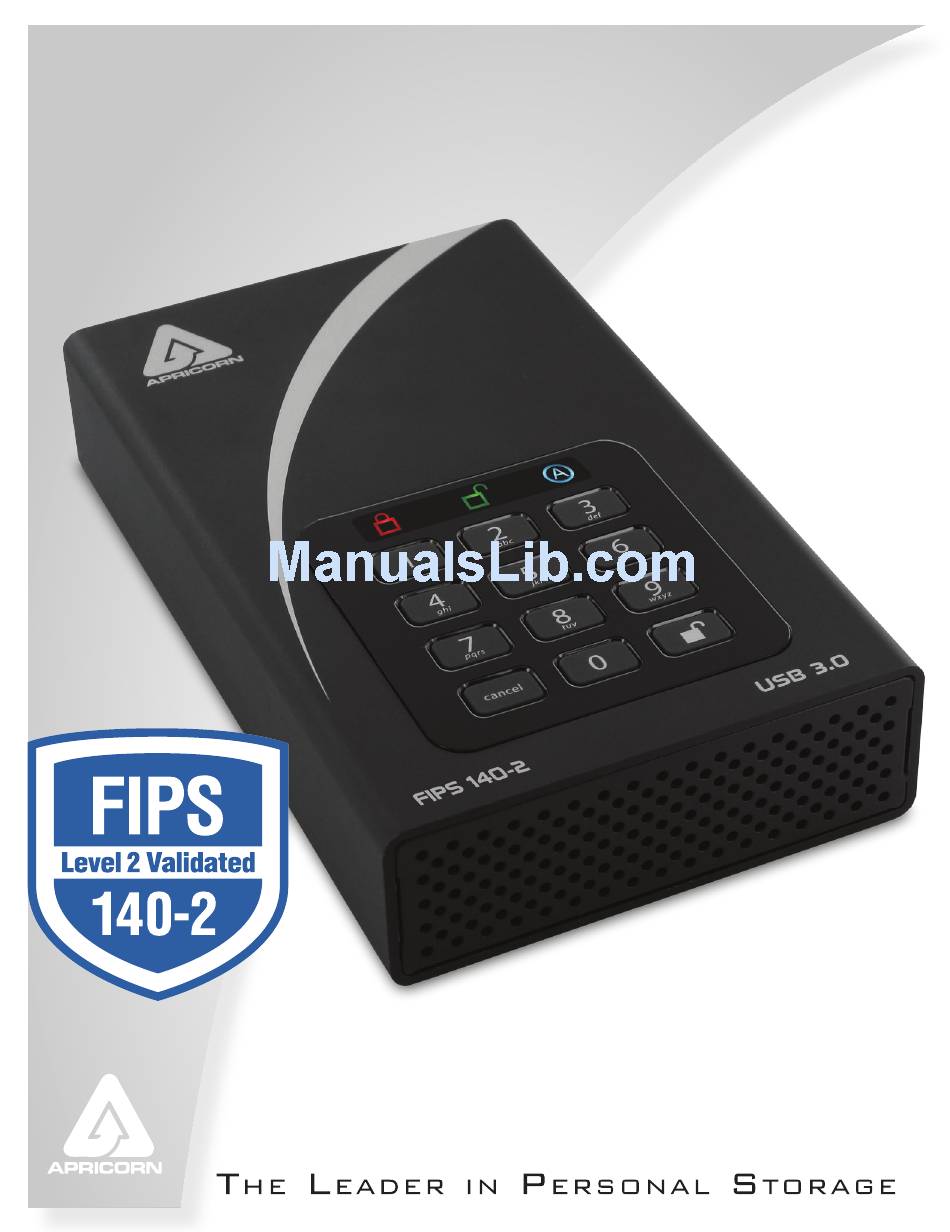

  • Page 1 Padlock DT Aegis User’s Manual...
  • Page 2 Aegis Padlock DT - Getting Started Before you begin Connecting the Aegis Padlock DT How do I use the Aegis Padlock DT the first time? What if I forget the User PIN? Using the Aegis Padlock DT Entering the Standby Mode...

  • Page 3: Completely Resetting The Aegis Padlock Dt

    Completely resetting the Aegis Padlock DT Initializing and formatting the Aegis Padlock DT after a complete reset Hibernating or Logging off from the OS Aegis Padlock DT Setup for Mac OS Diagnostic Mode Troubleshooting Technical Support Warranty and RMA information Copyright ©...

  • Page 4: About The Aegis Padlock Desktop Drive

    OS please refer to the directions on the reverse to reformat your drive to a compatible format.To access the Aegis Padlock DT connect the drive to a power outlet via the AC Adapter and a USB port using the USB 3.0 cable (this cable is also compatible with USB 2.0).

  • Page 5: Aegis Padlock Dt Button Panel

    Return to the previous step when you knowingly entered a wrong PIN • Exit the Admin Mode The UNLOCK button can be used to access the Aegis Padlock DT and it can also be used as an OK acknowledgement in the following operations: •...

  • Page 6: Led States And Their Meaning

    User or the Data on the drive (depending on the mode chosen). Also used when setting Auto-lock feature One second Self-test mode to ensure all components are followed by one ready and working properly second GREEN followed by one second BLUE www.apricorn.com...

  • Page 7: Aegis Padlock Dt - Getting Started

    Aegis Padlock DT. Connecting the Aegis Padlock DT Ensure that the power switch on the back of the Aegis Padlock DT is in the OFF position. Connect the Aegis Padlock DT to a power outlet using the included AC Adapter.

  • Page 8: How Do I Use The Aegis Padlock Dt The First Time

    NOTE: If you forget or lose your ADMIN PIN there is no way to access the drive. Even an Apricorn employee will be unable to help you access your data. In the event that this happens, the only way to use the drive is to do a complete reset, which will reset the encryption key making all data on the drive unrecoverable.

  • Page 9: Using The Aegis Padlock Dt

    (see Connecting the Aegis Padlock DT) before going into Standby Mode turning the LED RED. In this mode, the Aegis Padlock DT is locked. It cannot be recognized by My Computer and it does not provide either the regular functions or the encryption function.

  • Page 10: Entering The Admin Mode

    Alternately, you can turn your Aegis Padlock DT OFF at the power switch on the back of the unit. Once you turn the Aegis Padlock DT ON again, the Padlock DT will go through its self test verification process before turning the LED RED, indicating that you are in the Standby Mode.

  • Page 11: Pin Management

    You waited longer than ten seconds before entering a PIN. • The new PIN was entered incorrectly. If no activity is detected within two minutes in the Admin Mode, the Aegis Padlock DT will return to the Standby Mode. www.apricorn.com...

  • Page 12: Adding A New User Pin

    16 digits). The LED will flash three times, then returns to Solid BLUE and Blinking GREEN. 5. Re-enter the new User PIN and press UNLOCK. The LED stays solid GREEN indicating that the User PIN has been changed successfully. www.apricorn.com...

  • Page 13: Setting The Unattended Auto Lock Feature

    To protect against unauthorized access if the drive is unlocked and unattended, the Aegis Padlock DT can be set to automatically lock after a pre-set amount of time. In its default state, the Aegis Padlock Unattended Auto Lock feature is turned off.

  • Page 14: Aegis Padlock Dt Brute Force Protection

    Accordingly, one definition of “breaking” a cryptographic scheme is to find a method faster than a brute force attack. How does the Aegis Padlock DT protect against brute force attack? With the drive locked and in the standby state the LED will be solid RED.

  • Page 15: Setting A Self Destruct Pin

    Setting a Self Destruct PIN The Aegis Padlock DT has the ability to set a PIN that will reset the encryption key if needed. By resetting the encryption key all data on the drive will be lost and cannot be recovered.

  • Page 16: After A Complete Reset

    Padlock DT with disk management applications. To perform a complete reset of the drive, do the following: Connect the Aegis Padlock DT to an available USB port. Turn on the power switch on the back of the drive while holding the Cancel button. The LED...
  • Page 17 If you need only one partition, accept the default partition size and click Next. Click Next. Create a volume label, select Perform a quick format, and then click Next. Click Finish. Wait until the format process is complete. The Aegis Padlock will be recognized and it is available for use. www.apricorn.com...
  • Page 18 Hibernating, Suspending, or Logging off from the Operating System Be sure to save and close all the files on your Aegis Padlock DT before hibernating, suspending, or logging off from the Windows operating system. It is recommended that you log off the Aegis Padlock DT manually before hibernating, suspending, or logging off from your system.
  • Page 19 Unlock = 11 flashes, Cancel = 12 flashes. To Exit the Diagnostic Mode, a power re-set is required. Using the Power switch on the back of the drive, turn the drive OFF then ON to return to normal operation. www.apricorn.com...

  • Page 20: Troubleshooting

    A: There is no other way to retrieve the Admin PIN except a complete reset of the Aegis Padlock DT. After a complete reset, all data will be lost and you will need to initialize, allocate and format the Aegis Padlock DT manually.
  • Page 21 Q: What encryption algorithm is used in this product? A: The Aegis Padlock DT uses AES XTS 256-bit algorithm. Q: Why could I not initialize, partition or format the Aegis Padlock DT? A: Ensure that your user account has administrator privileges. Only accounts with Administrator privileges have access to Disk Management and the permissions to format and partition drives.

  • Page 22: Warranty And Rma Information

    Warranty and RMA information One Year Limited Warranty: Apricorn offers a 1-year limited warranty on the Aegis Padlock DT against defects in materials and workmanship under normal use. The warranty period is effective from the date of purchase either directly from Apricorn or an authorized reseller.
  • Page 23 © Apricorn, Inc. 2014. All rights reserved. 12191 Kirkham Road Poway, CA, U.S.A. 92064 1-858-513-2000 www.apricorn.com...
