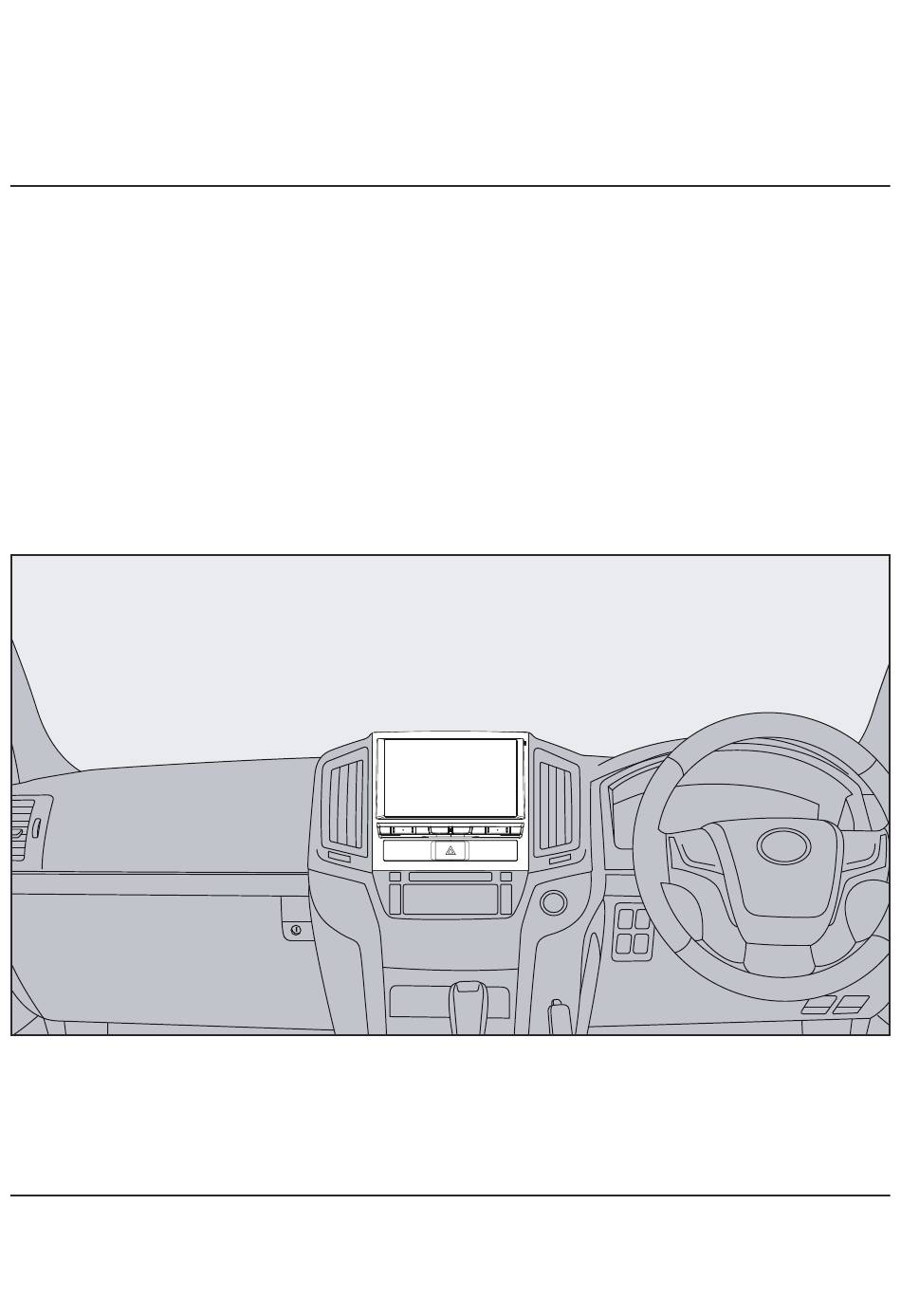

Alpine i905-LC16
Infotainment System
Installation Guide
Toyota
Landcruiser 200 Series
2016 > 2021 (Post-facelift)
GX, GXL Models Only
This install manual will give you a clear understanding about the installation of this kit.
To ensure correct installation, please read this manual carefully before starting the
installation.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Alpine i905-LC16
Summary of Contents for Alpine i905-LC16
- Page 1 Alpine i905-LC16 Infotainment System Installation Guide Toyota Landcruiser 200 Series 2016 > 2021 (Post-facelift) GX, GXL Models Only This install manual will give you a clear understanding about the installation of this kit. To ensure correct installation, please read this manual carefully before starting the...
- Page 3 WARNING Before installing or connecting the unit, please read the following thoroughly for proper use. WARNING CAUTION MAKE THE CORRECT CONNECTIONS. USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM SECURELY. Failure to make the proper connections may result in fire or product damage. Be sure to use only the specified accessory parts.
-
Page 4: Tools & Hardware
Tools & Hardware Trim Removal Tool 10mm Socket and Ratchet PH2 Phillips-Head Screwdriver PZ2 Pozi-Drive Screwdriver... - Page 5 Parts Alpine LC16 Fascia Mounting Brackets, LHS and RHS Wiring Harness i905 Head Unit Black Box i905 Screen Key Harness...
- Page 6 Parts Microphone DAB+ Antenna GPS Antenna USB/HDMI Panel 4x i905 Screen Screws 4x Fascia Screws 40x12z...
- Page 7 Parts i905 Keys LC16 i905 Screen Bracket 6x Head Unit Bracket Screws 2x Key Screws 4G x 3/8 PAN...
- Page 8 Disconnection of Battery WARNING It is recommended to disconnect the cable from the negative battery terminal before proceeding with the installation.
- Page 9 Factory Head Unit Removal Apply masking tape to the trim in the locations indicated above on both sides of the centre console. Use a wide trim removal tool to dislodge the top panel above the fascia. Uncouple the connector and set aside.
- Page 10 Factory Head Unit Removal and Bracket Install Pull each of the vent assemblies out from the top edge adjacent to the fascia. Use a trim removal tool to pry from the top edge previously masked if necessary. Grasp tightly in the vent locations and pull outwards to remove the factory fascia. Disconnect the hazard key and instrument panel plug and unscrew the assembly from the back of the factory fascia.
- Page 11 Factory Head Unit Removal and Bracket Install Using a 10mm socket and ratchet, undo the 4 bolts securing the factory head unit in place. Remove the head unit from the infotainment cavity and unseat connectors from the factory head unit. Retain these 4 bolts. Secure the provided brackets to the i905 chassis with M5x8 CS philips screws ensuring they are tight and there is no play between the bracket and the unit.
- Page 12 GPS and DAB+ Antenna Installation Route the GPS wire behind the dashboard, place the GPS antenna on the metal backplate and mount the antenna faced upwards and as close to the top of the dashboard as possible. Remove the passenger side grab handle and A-pillar trim, route the DAB antenna wire and mount the antenna to the windscreen.
- Page 13 AMPLIFIER WHEN ADDING EXTERNAL AMPLIFIER REAR OUT DISPLAY POWER HARNESS TO LCD SCREEN EXTERNAL KEYS TO KEYS (12 PIN) ALPINE TO TOYOTA CONNECTORS TO TOYOTA CONNECTORS Connect all supplied wiring to the vehicle connectors and the Alpine head unit black box.
- Page 14 Install Black Box and Assemble Fascia Mount the head unit black box assembly to the dash using the 4 factory head unit bracket bolts. Ensure that the display cable, display power harness and external key harnesses are routed in front of the head unit black box. 4x i905 LCD SCREWS (SUPPLIED) 2x 4G 3/8 PAN SCREWS...
- Page 15 Assemble Fascia With the fascia placed face down, fit the microphone into the fascia. Place the LC16 bracket with screen and keys into position. Ensure that the microphone cable remains clear of the bracket assembly. 4x 40 x 12z SCREWS (SUPPLIED) CAUTION Be extremely careful with...
- Page 16 If any adjustment is needed, loosen the screws on the rear of the bracket and reposition accordingly. The factory hazard key panel can then be fixed to the rear of the Alpine fascia using the retained screws.
- Page 17 Install Black Box and Assemble Fascia Install the fascia assembly into the dash and connect the display data and power cable, key cable as well as the factory hazard key and instrument panel plug. Refit the HVAC vents and the top center cover panel, completing steps 1-3 in reverse. Test all functions and clean worked surfaces with a microfibre towel.
-
Page 18: Installation Complete
Installation Complete Installation is complete. - Page 19 Notes...
- Page 20 ALPINE ELECTRONICS OF AUSTRALIA PTY. LIMITED 161-165 Princes Highway Hallam, Victoria 3803 Australia http://www.alpine.com.au...
