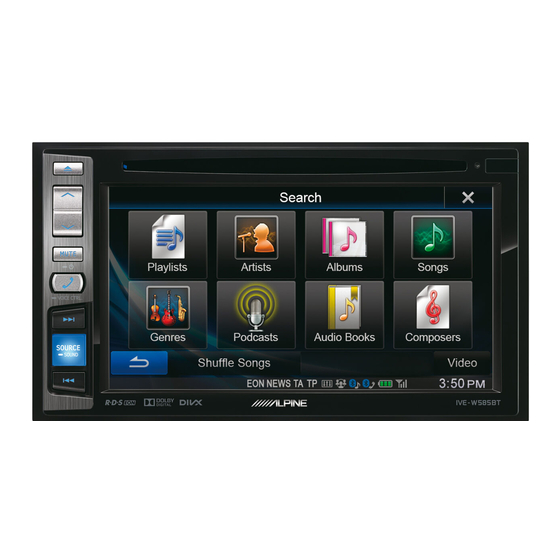

Alpine IVE-W585BT Owner's Manual

Mobile media station

Hide thumbs Also See for IVE-W585BT:

Quick reference manual (148 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the IVE-W585BT and is the answer not in the manual?

Questions and answers

Summary of Contents for Alpine IVE-W585BT

Page 1 • MANUAL DE OPERACIÓN • INSTRUKCJA OBSŁUGI Léalo antes de utilizar este equipo. Prosimy zapoznać się z tą instrukcją przed przystąpieniem do użytkowania urządzenia. • ISTRUZIONI PER L ’USO Si prega di leggere prima di utilizzare il attrezzatura. Designed by ALPINE Japan 68-25285Z87-A...
Page 2 01013 Vitoria (Alava)-APDO 133, Spain Phone 1-800-ALPINE-1 (1-800-257-4631) Phone 945-283588 ALPINE ELECTRONICS FRANCE S.A.R.L. ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD. (RCS PONTOISE B 338 101 280) 161-165 Princes Highway, Hallam 98, Rue de la Belle Etoile, Z.I. Paris Nord Il, Victoria 3803, Australia B.P.
Page 3: Table Of Contents
ENGLISH Contents Priority News ..........19 Displaying Radio Text ........19 Operating Instructions CD/MP3/WMA/AAC Playback ............20 Repeat Play .............20 WARNING M.I.X. (Random Play) ........20 WARNING ..........7 M.I.X. ALL (Shuffle Songs) (Concerning MP3/WMA/AAC) ....20 CAUTION ..........7 Selecting Folders NOTICE ............. 8 (Concerning MP3/WMA/AAC) ....21 Discs Playable on This Unit ....
Page 4 Receiving RDS Regional (Local) Adjusting Colour of Picture ......31 Stations ............ 43 Adjusting Image Contrast ......31 Switching the Display Language of PTY About IVE-W585BT ........32 (Programme Type) ........43 Displaying the Product Information .... 32 Setting PTY31 (Emergency Broadcast) ®...
Page 5 Registering the BLUETOOTH Device ... 45 Searching in the Phone Book ...... 54 Deleting the Phone Book Entries ....55 Setting the Passcode ........46 Assigning as a Short Cut Dialling Number ..55 Selecting the Output Speaker ......46 Call Waiting Function ........
Page 6 Searching for a Desired Song ......66 Tag Search ........... 66 File/Folder Name Search ......67 Direct Up/Down Function ......67 Select the Desired Folder (Folder up/down) ... 67 iPod/iPhone (Optional) Playback ............69 Searching for a Music File ......69 Searching for a Desired Video File ....
Page 7: Operating Instructions
Failure to do so may cause personal injury or damage to the DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR product. Return it to your authorized Alpine dealer or the nearest ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE. Alpine Service Centre for repairing.
Page 8: Notice
Installation Location Damaged Disc Make sure the IVE-W585BT will not be installed in a location Do not attempt to play cracked, warped, or damaged discs. Playing subjected to: a bad disc could severely damage the playback mechanism.
Page 9: Discs Playable On This Unit
This will restrict operation of these functions to times when the vehicle is parked. This ensures the focus of the driver’s attention will be on the road and not on the IVE-W585BT. This has been done for the safety of the driver and passengers.
Page 10 Discs that cannot be played Tips for making your own discs ® DVD-ROMs, DVD-RAMs, CD-ROMs (excluding MP3/WMA/ The IVE-W585BT plays DVD Video, DivX , Audio CD and has a AAC files), photo CDs, etc. built in MP3/WMA/AAC decoder. The following information is designed to help you create your own...
Page 11 • This unit is compatible with discs recorded in the standard DVD-Video format. Alpine accepts no responsibility for lost data, etc., even if data, etc., • Note that discs not finalised (processed to enable to play on is lost while using this product.
Page 12 Bluetooth SIG, Inc. and any use of such marks by Alpine Electronics, Inc. is under licence. Other trademarks and trade names are those of their respective owners. • “MPEG Layer-3 audio coding technology licenced from Fraunhofer IIS and Thomson.”...
Page 13: Getting Started
• The unit can be turned on by pressing any button. • The IVE-W585BT is a precision device. Careful handling of the unit should provide you with years of trouble-free operation. c (Eject) button Ejects a disc.
Page 14: Turning The System On
Turning the System On Inserting/Ejecting a Disc With the Alpine system, when the ignition key is turned to ACC or ON, the opening screen will be automatically displayed. Inserting the Disc When the system is used for the first time, the Insert the disc with the label side facing up.
Page 15: Top Banner And Bottom Banner Fade Out Setting
Top banner and Bottom banner Fade Out Source button Setting Top banner When “Top/Bottom Banner Fade Out” is set to [ON], the Top banner and Bottom banner on the Audio/Visual Playback screen fade out after 5 seconds if no operation is performed. To display the keys again, touch the middle of the screen.
Page 16: Touch Operation
Touch Operation About the Indicator Display You can operate the system by using the touch panel on the screen. The Indicator Bar at the bottom of the screen displays various types of information, like the current time. • Be sure to touch the onscreen button lightly with the pad of your finger to protect the display.
Page 17: Radio
Radio Presetting Stations Manually Tune in a desired radio station you wish to store in the preset memory by manual or automatic seek Display example for Radio main screen tuning. Touch and hold any one of the preset buttons for at least 2 seconds.
Page 18: Rds
Touch [AF] of Bottom banner to select the AF (Alternative Frequency) ON or OFF mode. In AF ON mode, the “AF” Indicator lights up. If [AF] is not displayed, touch [<<] in the bottom banner to display [AF]. Display example for RDS Information •...
Page 19: Receiving Traffic Information Manually
Receiving Traffic Information Manually Touch [TA] of Bottom banner to turn on the Traffic Information mode. The TA indicator lights up. Touch [ ] or [ ]. Seeks the broadcast station which is broadcasting the traffic information. • You can seek the traffic information in DX Seek mode or Local Seek mode.
Page 20: Cd/Mp3/Wma/Aac
Touch [ (Search)] of Bottom banner during • The IVE-W585BT can play back MP3/WMA/AAC files saved to CD playback. or DVD. Use a format compliant with this unit. For further information about playing or storing MP3/WMA/AAC Touch [Shuffle Songs].
Page 21: Selecting Folders (Concerning Mp3/Wma/Aac)
Selecting Folders (Concerning MP3/ About MP3/WMA/AAC WMA/AAC) CAUTION Touch [ ] or [ ] of Bottom banner to select the Except for private use, duplicating audio data (including MP3/ folder. WMA/AAC data) or distributing, transferring, or copying it, whether for free or for a fee, without permission of the copyright holder is strictly prohibited by the Copyright Act and by Searching from CD Text international treaty.
Page 22 Supported playback sampling rates and bit rates Order of files Files are played back in the order that the writing software writes them to the disc. Therefore, the playback order may not be Sampling rates: 8 kHz - 48 kHz (Disc/USB) what’s expected.
Page 23: Dvd
Touch [<<], [>>] cannot watch DVD/TV/Video unless the vehicle is stopped and the emergency brake is applied. Information display-1 If the IVE-W585BT is not installed correctly, the driver DVD-Video: will be able to watch the DVD/TV/Video while driving Title name/Chapter No.
Page 24: If A Menu Screen Appears
Select a desired menu item by touching [ ], [ ] or [ • Play Position Memory Function Even if you turn power off or switch the Ignition key to OFF during playback or change the source, playback will continue from the point where playback stopped when the power is turned ON again.
Page 25: Stopping Playback (Pre Stop)
Stopping Playback (PRE STOP) Finding the Beginnings of Chapters/ Tracks/Files During playback, touch [ ] or [ ]. Touch the stop button during playback to stop playback. That position is stored in the memory. The chapter/track/file switches each time the button is touched, and playback of the selected chapter/track/file starts.
Page 26: Selecting Folders
Selecting Folders Searching Directly by Chapter Number Touch [ ] or [ ] of Bottom banner to select the folder. Use this function to easily move to the beginnings of the chapters on the • Touch [ ] to play from the first file of the previous folder. disc.
Page 27: Switching The Angle
® Switching the Angle About DivX ® On DVDs in which scenes have been filmed from multiple angles, the DivX is a codec (software) to compress moving images while angle can be switched during playback. maintaining image quality using a highly advanced compression ratio and operating speed.
Page 28: Setup Operation
Setting items: Language / Time / Security Code / Setup Top/Bottom Banner Fade Out / Screen/LED Customize / Visual / About / Demo mode • Depending on the item, repeat step 3. Setup Operation Touch [ ] or [ ] etc., to change its setting. •...
Page 29: Time Setting
Time Setting Security Code Setting [Time] is selected on the General setup menu in step 3. Refer to [Security Code] is selected on the General setup menu in step 3. Refer “General Setup Operation” (page 28). to “General Setup Operation” (page 28). Clock Display Setting Setting Security code The clock indication on the monitor display is turned on or off...
Page 30: Setting Top Banner And Bottom Banner Display
The illumination control adjusts the brightness of the backlighting based Wallpaper File List in USB memory on the car ambient lighting for easier viewing. • Built in Wallpaper Image File is “Alpine BG.” Setting item: Dimmer Preview of selected file...
Page 31: Visual Setting
Switching Display Modes Visual Setting Setting item: Display Mode [Visual] is selected on the General setup menu in step 3. Refer to Setting contents: FULL (Initial setting) / NORMAL “General Setup Operation” (page 28). Touch the desired item. In FULL mode, the monitor displays a normal picture wider to fit in a wide-screen monitor.
Page 32: About Ive-W585Bt
You can view the version information of this product. Make note of this This unit has a Demonstration feature for the display. When you install information and refer to it whenever you contact Alpine Tech Support or and use the unit for the first time, the unit will enter demo mode an Alpine-authorised dealer.
Page 33: Sound Setup
Sound Setup Car Specific Sound Setup [Car Specific Sound Setup] is selected in the Sound setup menu in step 3. Refer to “Sound Setup Operation” (page 33). Sound Setup Operation You can set and reproduce the best audio environment for the environment in your car.
Page 34: Setting The Mx (Media Xpander)
MX AUX Setting the MX (Media Xpander) Choose the MX mode (CMPM, Movie, or Music) that corresponds to the media connected. [Media Xpander] is selected on the Sound setup menu in step 3. Refer • To cancel MX mode for all music source, set MX to “Off” in step 1. •...
Page 35: Setting The Mx (Media Xpander)
Setting the MX (Media Xpander) Adjusting the BASS ENGINE Level For details on Setting the MX (Media Xpander), refer to page 34. You can adjust the BASS ENGINE Level. • When “ALL MX OFF” is set, you cannot adjust MX level on the Setting item: Level Setting contents: 0 to 6 (Initial setting: 3) Quick Sound screen.
Page 36: Adjusting The Time Correction (Tcr)
Adjusting the Time Correction (TCR) Adjusting the Crossover Settings (X- OVER) [TCR] is selected on the Sound setup menu in step 3. Refer to “Sound Setup Operation” (page 33). [X-OVER] is selected on the Sound setup menu in step 3. Refer to Before performing the following procedures, refer to “About Time “Sound Setup Operation”...
Page 37: Adjusting The Parametric Equalizer Curve (Parametric Eq)
Calling the X-OVER adjusted value Adjusting the Level Calling the pre-set X-OVER adjusted value. Touch [ ] or [ ] of “Level” to adjust the level of selected band. Touch [Preset1], [Preset2], or [Preset3] on the X- OVER screen. Setting contents: -7 to +7 (Initial setting: 0) The setting stored in the Preset will be recalled.
Page 38: Other Setting
Other Setting About Time Correction [Other] is selected on the Sound setup menu in step 3. Refer to “Sound The distance between the listener and the speakers in a car vary widely due to the complex speaker placement. This difference in the distances Setup Operation”...
Page 39 Time Correction Value List Example 2. Listening Position: All Seats Time Time Distance Distance Distance Distance Difference Difference Adjust the time correction level of each speaker to almost the same level. (cm) (inch) (cm) (inch) (msec) (msec) 173.4 68.3 Sit in the listening position (driver’s seat, etc.) and 176.8 69.7 measure the distance (in meters) between your head...
Page 40: About The Crossover
Adjusting to a frequency range outside that recommended may cause damage to the speakers. Crossover (X-OVER): For the recommended crossover frequencies of Alpine speakers, refer This unit is equipped with an active crossover. The crossover limits the to the respective Owner’s Manual.
Page 41: Source Setup
Source Setup Disc Setting [Disc] is selected on the Source setup menu in step 3. Refer to “Source Setup Operation” (page 41). Source Setup Operation • You can perform DVD setup in DVD video mode. • Touch [Stop] before performing Disc setup. The parking brake must be engaged to access the Source mode Setting of the DVD Menu Language screen.
Page 42: Changing The Country Code Setting
To play in a language other than those displayed Set the rating level of PARENTAL 1 Touch [DVD Menu Language Code], [Audio Language 4 Touch [Parental Control]. Code] or [Subtitle Language Code]. 5 Touch “ ” on “ ” to turn “On". The numeric keypad screen is displayed.
Page 43: Radio Setting
4:3 PAN-SCAN: Switching the Display Language of PTY Select this when connected to a conventional 4:3 size monitor. The picture will fill the entire TV screen. However, due to the (Programme Type) mismatch in aspect ratio, parts of the movie at the extreme left and right sides will not be visible (when playing a 16:9 size Setting item: PTY Language movie).
Page 44: Aux Setting
[App connection method] is selected on the Source setup menu in Audio R (Red) step3. Refer to “Source Setup Operation” (page 41). Ground Set ALPINE APP to USB when an iPhone is connected, or set to Video (Yellow) BLUETOOTH when an Android Smartphone is paired. Setting item: App Connection Method...
Page 45: Bluetooth Setup
BLUETOOTH Setup Registering the BLUETOOTH Device [Set Bluetooth Device] is selected on the BLUETOOTH setup menu in The BLUETOOTH function is always available on this unit. step 3. You can, therefore, search for a BLUETOOTH device for pairing at any Refer to “BLUETOOTH Setup Operation”...
Page 46: Setting The Passcode
Setting the Passcode Adjusting the Caller Volume [Pass code Change] is selected on the BLUETOOTH setup menu in [Caller Volume] is selected on the BLUETOOTH setup menu in step 3. step 3. Refer to “BLUETOOTH Setup Operation” (page 45). Refer to “BLUETOOTH Setup Operation” (page 45). You can adjust the receive volume, during the call.
Page 47: Deleting All The Histories
Deleting All the Histories Camera Setup [Delete Call History] is selected on the BLUETOOTH setup menu in step 3. Camera Setup Operation Refer to “BLUETOOTH Setup Operation” (page 45). Dialled/Received/Missed Incoming histories are all deleted. With an optional camera connected, its video is output to the monitor. Setting item: Delete Call History When the camera is connected, set this item.
Page 48: Aux Camera Setting
Adjusting guides simultaneously AUX Camera Setting Touch [Link]. The 3 vertical guides of the currently-selected guide link [Camera] is selected on the Camera setup menu in step 3. together, allowing them to be adjusted simultaneously. Refer to “Camera Setup Operation” (page 47). Setting the Camera Input Setting item: Camera Select / Camera Signal*/Guide Adjustment*...
Page 49: About The Rear Camera Guide
<Screen> About the Rear Camera Guide To display the guide, set “Guide Display ON/OFF Setting” (page 48) to On. Also, to adjust the guide, refer to “Adjusting the Rear Camera Guide” (page 48). You can also turn off the guide in the Rear camera display screen.
Page 50 The distance guidance mark represents the distance to a flat road surface. Therefore in the case of an upward slope behind the car, the distance guides are displayed closer to the rear bumper than the actual distance. For example, if there is an obstacle on the upward slope, it may appear farther away than its actual position.
Page 51: Bluetooth Operation
BLUETOOTH compatible device to this unit. Setup Before Using The device name of this unit is “IVE-W585BT” and the initial number of the passcode is “0000.” Also refer to the Owner’s Manual of the connected device(s).
Page 52: Changing The Connecting Bluetooth Device
Changing the connecting BLUETOOTH Calling Device Use the Phone menu screen to make a phone call. If multiple BLUETOOTH devices are registered in this device, you can Using Short Cut Dialling to Make a Call change the connection among the registered devices. You can assign up to 4 phone numbers for one-touch dialing to make a Press the (Phone) button.
Page 53: Dialing A Number In The Phone Book
Say the telephone number* or name* you want to Dialing a Number In the Phone Book call, into the microphone. * The number and name depend on the voice dial information You can use the phone book of the mobile phone to make a phone call. stored in the mobile phone.
Page 54: Dtmf (Touch-Tone) Function
DTMF (Touch-Tone) Function Adding the Phone Book Transmits a DTMF (Touch-Tone) during a call. Press the (Phone) button. The phone menu screen is displayed. Touch [Keypad]. The number input screen appears. Touch [ Input number. Touch [Download]. • You can transmit a Touch-Tone signal during a call. Touch [Add].
Page 55: Deleting The Phone Book Entries
Deleting the Phone Book Entries Assigning as a Short Cut Dialling Number Deleting One Entry from the Phone Book Press the (Phone) button. Assigning from Call History The Phone menu screen is displayed. Press the (Phone) button. Touch [ The Phone menu screen is displayed. The Phone Book screen is displayed.
Page 56: Call Waiting Function
Call Waiting Function BLUETOOTH Audio If a call comes in from another phone during a call, a notice is displayed If a BLUETOOTH compatible mobile phone, portable player, etc. is on the screen. This function can only be used if the connected mobile connected by wireless, you can play back a song (operation is phone has a call waiting function service included.
Page 57: Playback
Playback M.I.X. (Random Play) Available for AVRCP Ver. 1.3 and 1.4 only. Touch [Bluetooth-Audio] of Top banner. Touch [ ] during playback. The M.I.X. mode switches every time [ ] is touched. Touch [ ] or [ ] to select the desired track (file). Returning to the beginning of the current file: Touch [ ].
Page 58: Auxiliary Device (Optional)
Example for AUX, AUX2, DVD, Game mode display Operating Auxiliary Devices (Optional) To operate devices connected to the AUX terminals of IVE-W585BT, follow the procedure described below. • Set AUX In to “AUX.” Refer to “Setting the AUX Mode” (page 44).
Page 59: Operating An External Dvd Player
[Subtitle] Operating an External DVD Player Switches sub titles. * The buttons provide the same functions above. To operate an External DVD player (Optional), set “Setting the Primary AUX Name (AUX Setup)” (page 44) or “Setting the Secondary AUX Menu operation mode screen display example Name”...
Page 60: Operating An External Dvd Changer
Operating an External DVD Changer Operating the Mobile Digital TV Receiver (DVB-T) To operate an External DVD changer (Optional), set “Setting the Primary AUX Name (AUX Setup)” (page 44) or “Setting the Secondary To operate the Mobile Digital TV Receiver (DVB-T) (Optional), set AUX Name”...
Page 61: Operating A Tv
Operating a TV Operating a USB Player or DAB/DAB+ TUNER To operate a TV Receiver (TV) (Optional), set “Setting the Primary AUX Name (AUX Setup)” (page 44) or “Setting the Secondary AUX To operate a USB Player or DAB/DAB+ TUNER (Optional), set Name”...
Page 62: Applying Tuneit
TuneIt, is downloadable from Apple’s App Store; the Android user can download it from Google Play. For details, consult your Alpine dealer. • The application program and related specifications and data may be deleted or terminated without notice.
Page 63 Displaying the Notification List Touch the Notification List icon on the Top banner, or (List) of the notification display. Example of the Notification List display • If there are no notifications in the Notification List, “No Notifications. ” is displayed. Other operations TTS (Text To Speech) Start/Stop switch Like switch:...
Page 64: Camera Operation (Optional)
Camera Operation (Optional) When an optional camera is connected, the view video of camera can be output to the monitor. Depending on your camera, please choose the camera type first. For details, refer to “Camera Setup” (page 47). Rear camera: If an HCE-C305R*/HCE-C300R*/HCE-C200R/HCE-C115/HCE- C105 camera is connected, when the vehicle is reversed, the rear camera view (guide marks for vehicle width and available...
Page 65: Usb Memory (Optional)
USB Memory Playback (Optional) Touch [USB] of Top banner. The USB mode is activated and the display changes to the USB screen. You can play back music files (MP3/WMA/AAC) and video files Touch [ ] or [ ] or to select the desired track (file). ®...
Page 66: Random Play (M.i.x.)
Searching for a Desired Song Operation differs depending on whether the most recent song search IVE-W585BT can carry out 2 kinds of searches. was a Tag Search or a Folder Search. • For details on Video file search, refer to “Searching for a Desired Touch [ ] during playback.
Page 67: File/Folder Name Search
To Search for a Song in the Album of the Artist Select the Desired Folder (Folder up/ 1 Touch the desired artist’s name. All albums of the selected artist are displayed. down) Touch the desired album’s name. This operation is available only if the most recent song search was a All songs of the selected album are displayed.
Page 68: Ipod/Iphone (Optional
461iV (sold separately). You can connect a video-capable iPod to enjoy video as well as music. When the IVE-W585BT is connected by the above cable, the controls on the iPod are disabled. • Internet or telephone functions, etc., of the iPhone or iPod touch are not controllable from the unit, but these functions can be controlled using the iPhone or iPod touch itself.
Page 69: Playback
/ ]. To Play Back the Artist Directly • If a song is playing on the iPod/iPhone when it is connected to the IVE-W585BT, it will continue playing after the connection. 1 Touch [ ] of the artist’s name. • If the artist, album or song name, created in iTunes, has too many All songs of the selected artist are played back.
Page 70: Searching For A Desired Video File
Searching for a Desired Video File Direct Up/Down Function You can select a movie, music video, etc., from the list screen. If you touch [ ] of the album name in the search mode, this album will be played back repeatedly. To go to the previous or next Album, use the •...
Page 71: Random Play (Shuffle)
Random Play (Shuffle) Touch [ ] during playback. The files will be played back in a random sequence. The Shuffle mode switches every time [ ] is touched. Shuffle Songs Shuffle Albums (OFF) Shuffle Songs Shuffle Albums: The songs on each album are played back in proper order.
Page 72: Product Software Update
* These functions differ from disc to disc. For details, refer to the disc’s This product use software that can be updated through a USB memory instructions. device. Download the software from the Alpine website and update the product using the USB memory device. Updating this product Check the Alpine website for details on updating.
Page 73: List Of Language Codes
List of Language Codes (For details, see page 41.) Language Abbreviation Langua g e Abbre viation Code Abbre viation Code Language Code 6565 Af ar 7369 Inter lingue 8278 Kirundi 6566 Abkhazian 7375 Inupiak 8279 Romanian 6570 Afr ikaans 7378 Indonesian 8285 Russian...
Page 74: List Of Country Codes
List of Country Codes (For details, see page 42.) Abbreviation Code Country Abbreviation Code Country Abbreviation Code Country 6568 Andorra 6877 Dominica 7573 Kiribati 6569 United Arab Emirates 6879 Dominican Republic 7577 Comoros Afghanistan 6890 Algeria 7578 Saint Kitts and Nevis 6570 6571 Antigua and Barbuda...
Page 75 Abbreviation Code Country Abbreviation Code Country Abbreviation Code Country 8069 Peru 8374 Svalbard and Jan Mayen 8487 Taiwan, Province of China 8070 French Polynesia 8375 Slovakia 8490 Tanzania, United Republic of 8071 Papua New Guinea 8376 Sierra Leone 8565 Ukraine 8072 Philippines 8377...
Page 76: In Case Of Difficulty
This guide will help you isolate the problem if the unit is at fault. Otherwise, make sure the rest of your system is Disc properly connected, or then consult your authorised Alpine dealer. Disc playback sound is wavering. • Moisture condensation in the disc Module.
Page 77: If This Message Appears
• An access error to DVD drive occurred for some reasons. Please check mobile device. - Please ask Service Centre for help. • The mobile phone was not connected correctly. - Check the settings for IVE-W585BT and the mobile phone and reconnect. Audio/Visual Read error.
Page 78 Playing back a DRM protected DivX File Some operations cannot be performed while displaying the following message. Authorization Error. This player is not authorised to play this video. ® • The version of the DRM protected DivX File is not supported by this unit.
Page 79: Specifications
PICKUP Specifications Wave length DVD: 666 nm CD: 785 nm MONITOR SECTION Laser power CLASS II Screen Size 6.1" LCD Type Transparent type TN LCD BLUETOOTH SECTION Operation System TFT active matrix BLUETOOTH Specification Bluetooth V2.1+EDR Number of Picture Elements 1,152,000 pcs. (800 × 3 × 480) Output Power +4 dBm Max.
Page 80: End User License Agreement (Microsoft)
NOT FAULT TOLERANT. THE SOFTWARE IS NOT FAULT TOLERANT. ALPINE HAS INDEPENDENTLY DETERMINED HOW TO USE THE SOFTWARE IN THE DEVICE, AND MS HAS RELIED UPON ALPINE TO CONDUCT SUFFICIENT TESTING TO DETERMINE THAT THE SOFTWARE IS SUITABLE FOR SUCH USE.
Page 81 Should you have any questions concerning this EULA, or if you • ALPINE, MS, Microsoft Corporation and their affiliates desire to contact ALPINE for any other reason, please refer to reserve the right to discontinue any Internet-based the address provided in the documentation for the DEVICE.
Page 82: Installation And Connections
When connecting the IVE-W585BT to the fuse box, make installations or ground connections. Using such parts could disable sure the fuse for the intended circuit of the IVE-W585BT has the control of the vehicle and cause fire etc. appropriate amperage. Failure to do so may result in damage to KEEP SMALL OBJECTS SUCH AS SCREWS OUT OF THE the unit and/or the vehicle.
Page 83: Installation
When your vehicle has the Bracket, mount the long result in a loss of performance and possibly hex bolt onto the rear panel of the IVE-W585BT and damage. put the Rubber Cap on the hex bolt. If your vehicle...
Page 84 Slide the IVE-W585BT into the dashboard until it clicks. This ensures that the unit is properly locked and will not accidentally come out from the dashboard. Removal 1. Insert the bracket keys into the unit, along the guides on either side. The unit can now be removed from the mounting sleeve.
Page 85 • The diagram and the fuse amperage shown above are in the case when IVE-W585BT is used individually. • If the switched power (ignition) lead of the IVE-W585BT is connected directly to the positive (+) post of the vehicle’s battery, the IVE-W585BT draws some current (several hundred milliamperes) even when its switch is placed in the OFF position, and the battery may be discharged.
Page 86: Connections
Connections Antenna ISO Antenna Plug Microphone (Included) AUX OUTPUT To Rear Monitor Input terminal (Yellow) Rear Left Amplifier Rear Right Front Left Amplifier Front Right Amplifier Subwoofers To Camera with RCA Output CAMERA (Yellow) terminal REMOTE OUT To remote input lead (Brown) REMOTE TURN-ON To amplifier or equalizer...
Page 87 Vehicle Display Interface box. This lead should be used only for controlling the vehicle’s For details about connections, consult your nearest Alpine power antenna. Do not use this lead to turn on an amplifier dealer.
Page 88: System Example
System Example Connection of an iPod/iPhone or USB memory USB connector iPod/iPhone (Sold separately) iPod VIDEO input connector iPod VIDEO AV extension cable (Sold separately) (KCU-461iV) Connection kit KCU-461iV (Sold separately) USB extension cable (Included) USB Memory (Sold separately) • Do not leave a iPod/iPhone/USB memory in a vehicle for a long time. Heat and humidity may damage the iPod/iPhone/USB memory and you may not be able to play it again.
Page 89 Connection of an External device iPod VIDEO input connector CAMERA/AUX/PRE OUT Connector To Audio Output terminal To Video Output terminal CAMERA/AUX/PRE OUT cable DVD Changer (Sold separately) REMOTE OUT REMOTE IN (Brown) (White/Brown) AV/RCA interface cable (4-pole mini AV plug to 3- RCA Extension Cable (Sold Separately) RCA) (sold separately) Remote Control Output Lead (Brown)
Page 90 Connection of a DVD Player To Video Output terminal DVD Player (sold separately) To Audio Output terminal iPod VIDEO input connector AV/RCA interface cable (4-pole mini AV plug to 3- RCA Extension Cable (Sold Separately) RCA) (sold separately) Video/Audio Input Connectors YELLOW is for input video, RED is right and WHITE is left input the audio.
Page 91 Connection of a Mobile Digital TV Receiver/USB Player and DVD Changer iPod VIDEO input connector CAMERA/AUX/PRE OUT Connector To Audio Output Terminal To Video Output terminal CAMERA/AUX/PRE OUT cable To Video Input Terminal To Video Output terminal Mobile Digital TV Receiver (Sold separately) DVD Changer (Sold...
Page 92 Connection of a DAB/ DAB+ TUNER iPod VIDEO input connector DAB/DAB+ TUNER (TUE-DAB1U) (sold separately) CAMERA/AUX/PRE OUT Connector REMOTE OUT IR (TOUCH) CAMERA/AUX/PRE OUT cable (Brown) AV/RCA interface cable (4-pole mini AV plug to 3- Remote Control Output Lead (Brown) RCA) (sold separately) Connect this lead to the remote control input lead.
Page 93 Connection of an External Amplifier Power Supply Connector CAMERA/AUX/PRE OUT Connector CAMERA/AUX/PRE OUT cable Amplifier 4 ch (Sold separately) (Red) Input (White) Front speaker (Red) Input Rear speaker (White) Amplifier for subwoofer (Sold separately) (Red) Input Subwoofer (White) REMOTE TURN-ON REMOTE ON (Blue/White) (Blue/White)
Page 94 Connection of camera CAMERA/AUX/PRE OUT Connector CAMERA/AUX/PRE OUT cable To Video Output terminal (Yellow) Camera with RCA video output (sold separately) Power Supply Connector HCE-C105, etc. Reverse Lead Connect to the plus side of the (Orange/White) car’s reverse lamp. CAMERA Input RCA Connector (CAMERA) RCA Extension Cable (sold separately)
