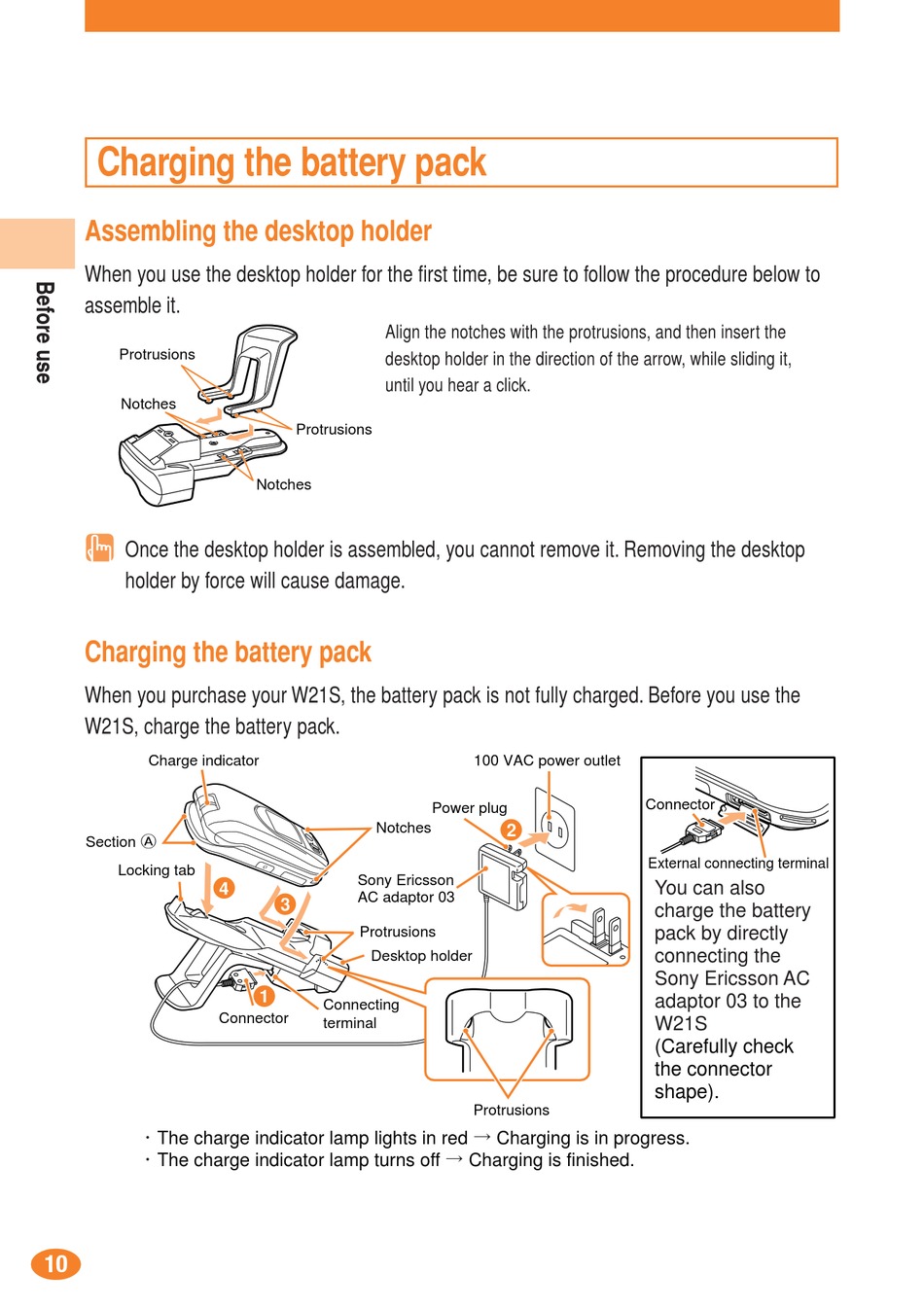

Charging the battery pack

Assembling the desktop holder
When you use the desktop holder for the first time, be sure to follow the procedure below to
assemble it.
Protrusions
Notches
Once the desktop holder is assembled, you cannot remove it. Removing the desktop
holder by force will cause damage.
Charging the battery pack
When you purchase your W21S, the battery pack is not fully charged. Before you use the
W21S, charge the battery pack.
Charge indicator
Section A
Locking tab
4
・The charge indicator lamp lights in red
・The charge indicator lamp turns off
10
Align the notches with the protrusions, and then insert the
desktop holder in the direction of the arrow, while sliding it,
until you hear a click.
Protrusions
Notches
Notches
Sony Ericsson
AC adaptor 03
3
Protrusions
Desktop holder
1
Connecting
Connector
terminal
100 VAC power outlet
Power plug
2
Protrusions
→
Charging is in progress.
→
Charging is finished.
Connector
External connecting terminal
You can also
charge the battery
pack by directly
connecting the
Sony Ericsson AC
adaptor 03 to the
W21S
(Carefully check
the connector
shape).
