V2.1

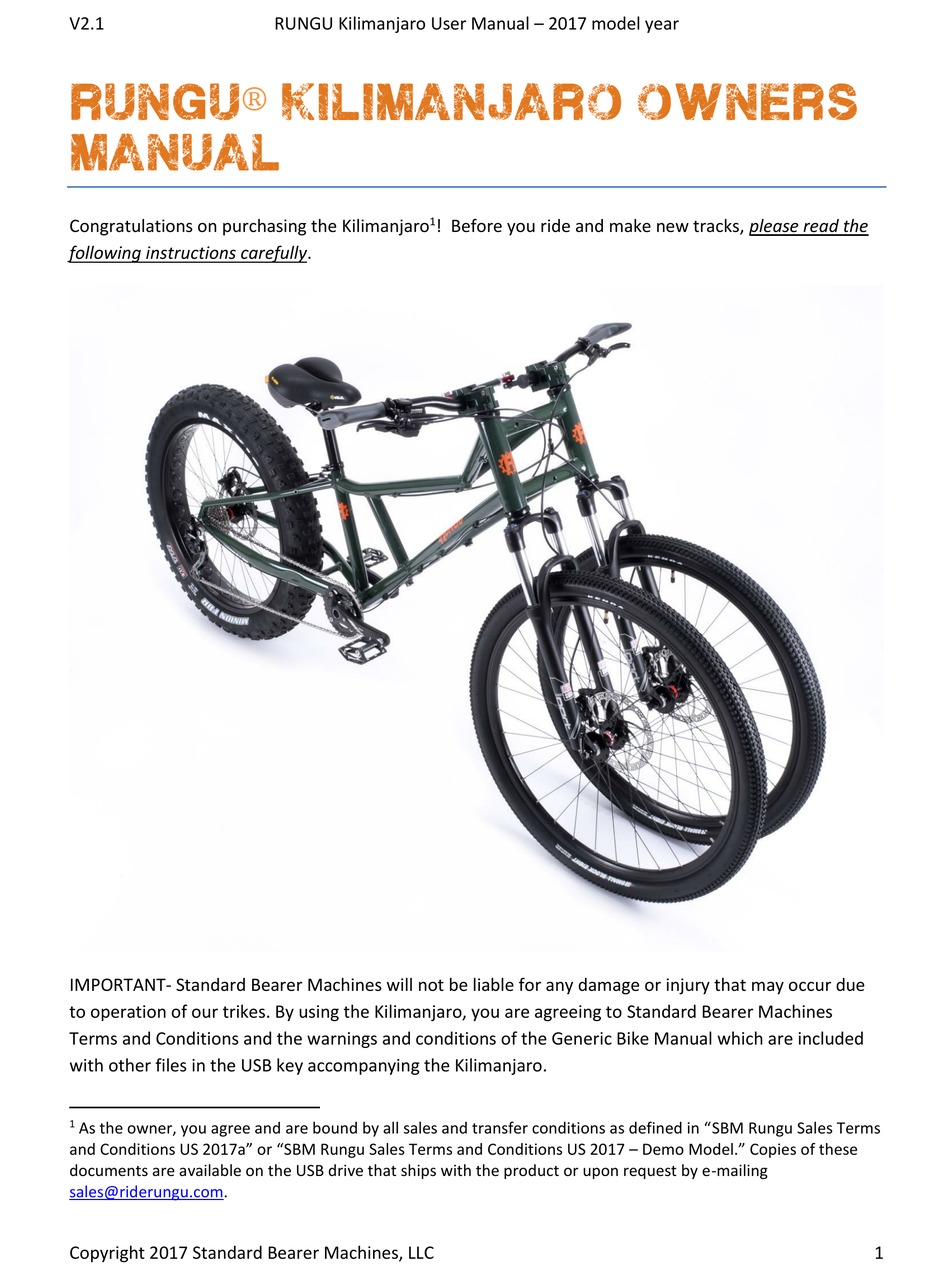

RUNGU Kilimanjaro User Manual – 2017 model year
®
rungu
kilimanjaro owners
manual
1
Congratulations on purchasing the Kilimanjaro
! Before you ride and make new tracks, please read the
following instructions carefully.
IMPORTANT- Standard Bearer Machines will not be liable for any damage or injury that may occur due
to operation of our trikes. By using the Kilimanjaro, you are agreeing to Standard Bearer Machines
Terms and Conditions and the warnings and conditions of the Generic Bike Manual which are included
with other files in the USB key accompanying the Kilimanjaro.
1
As the owner, you agree and are bound by all sales and transfer conditions as defined in "SBM Rungu Sales Terms
and Conditions US 2017a" or "SBM Rungu Sales Terms and Conditions US 2017 – Demo Model." Copies of these
documents are available on the USB drive that ships with the product or upon request by e-mailing
sales@riderungu.com.
Copyright 2017 Standard Bearer Machines, LLC
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rungu Kilimanjaro
Summary of Contents for Rungu Kilimanjaro
- Page 1 USB key accompanying the Kilimanjaro. As the owner, you agree and are bound by all sales and transfer conditions as defined in “SBM Rungu Sales Terms and Conditions US 2017a” or “SBM Rungu Sales Terms and Conditions US 2017 – Demo Model.” Copies of these documents are available on the USB drive that ships with the product or upon request by e-mailing sales@riderungu.com.
- Page 2 V2.1 RUNGU Kilimanjaro User Manual – 2017 model year Contents Parts identification ............................3 Unpacking and Assembly Instructions ......................5 Tools required ............................5 Unpacking and Assembly Instructions ...................... 6 Cautions and Safety ............................ 13 General Cautions and Warnings ......................13 Riding the Kilimanjaro ..........................
-
Page 3: Parts Identification
V2.1 RUNGU Kilimanjaro User Manual – 2017 model year Parts identification The following images show the names of various components on the Kilimanjaro Copyright 2017 Standard Bearer Machines, LLC... - Page 4 V2.1 RUNGU Kilimanjaro User Manual – 2017 model year Copyright 2017 Standard Bearer Machines, LLC...
-
Page 5: Unpacking And Assembly Instructions
V2.1 RUNGU Kilimanjaro User Manual – 2017 model year Unpacking and Assembly Instructions Warning: Failure to follow instructions may lead to incomplete or faulty assembly that can result in accidental rider injury or death. Before you ride and make new tracks, please follow the assembly instructions carefully. The team at Standard Bearer Machines recommends that you have the assembly performed by a qualified bike mechanic. -
Page 6: Unpacking And Assembly Instructions
3. Lift the frame and attached components from the carton. CAUTION: THE KILIMANJARO WEIGHS 50 LBS (23 KG) USE TWO (2) PEOPLE TO REMOVE THE TRIKE FROM THE PACKAGING TO AVOID INJURY Copyright 2017 Standard Bearer Machines, LLC... - Page 7 V2.1 RUNGU Kilimanjaro User Manual – 2017 model year 4. Disconnect the front wheels from the frame packaging and remove the protective packaging from the forks. 5. Open the accessory box to remove the two quick release skewers from the packaging.
- Page 8 V2.1 RUNGU Kilimanjaro User Manual – 2017 model year 9. Mount the wheel to the left fork. 10. Tighten and close the quick-release once the wheel is mounted in the fork. Warning: make sure to tighten the quick-release in the fork so that it cannot fall out of the fork;...
- Page 9 V2.1 RUNGU Kilimanjaro User Manual – 2017 model year 14. Mount the wheel to the right fork. 15. Tighten and close the quick-release once the wheel is mounted in the fork. Warning: make sure to tighten the quick-release in the fork so that it cannot fall out of the fork;...
- Page 10 RUNGU Kilimanjaro User Manual – 2017 model year Warning: Be careful to set the handlebar length to 30mm or more. Setting the handlebar end to less than 30 mm can cause the Kilimanjaro steering to lock making the trike difficult to control.
- Page 11 V2.1 RUNGU Kilimanjaro User Manual – 2017 model year 23. Install the left pedal first – the left pedal is marked with an “L” as shown below. 24. The left pedal is threaded backwards, so thread the shaft into the crank arm in a counterclockwise motion as depicted below.
- Page 12 29. Inflate the Fat Tires between 10 and 15 PSI (69 to 104 KPa); inflate the 29 in. (700c) tires between 35 and 55 PSI (241 KPa to 379 KPa) before riding (KILIMANJARO ONLY). Copyright 2017 Standard Bearer Machines, LLC...
-
Page 13: Cautions And Safety
Cautions and Safety General Cautions and Warnings The Kilimanjaro is a tricycle that you can ride like a bicycle with the added benefit of more stability on soft ground. Refer to the All Purpose Bicycle Manual available on the Rungu USB drive that ships with the... -
Page 14: Riding The Kilimanjaro
2. Ride the trike at a level and speed you are comfortable with. Do not push the boundaries of your skill level or the trike! 3. NEVER jump with the Kilimanjaro. The Kilimanjaro is designed for moderate bumps but jumping your trike can lead to severe injury and/or damage! -
Page 15: Using The Front Suspension
Under some circumstances such as when the rear wheel drifts sideways in very soft sand, the suspension may make it difficult to stay upright. Under these circumstances, Rungu recommends disabling the front suspension by turning the switch from the Open position to the Lock position. -
Page 16: Riding Safety
NOTE: Standard Bearer Machines are NOT RESPONSIBLE FOR FLAT TIRES! Getting more information Thank you again for purchasing a Rungu Trike. For further questions, please consult the Technical Documentation page on the riderungu.com website.
