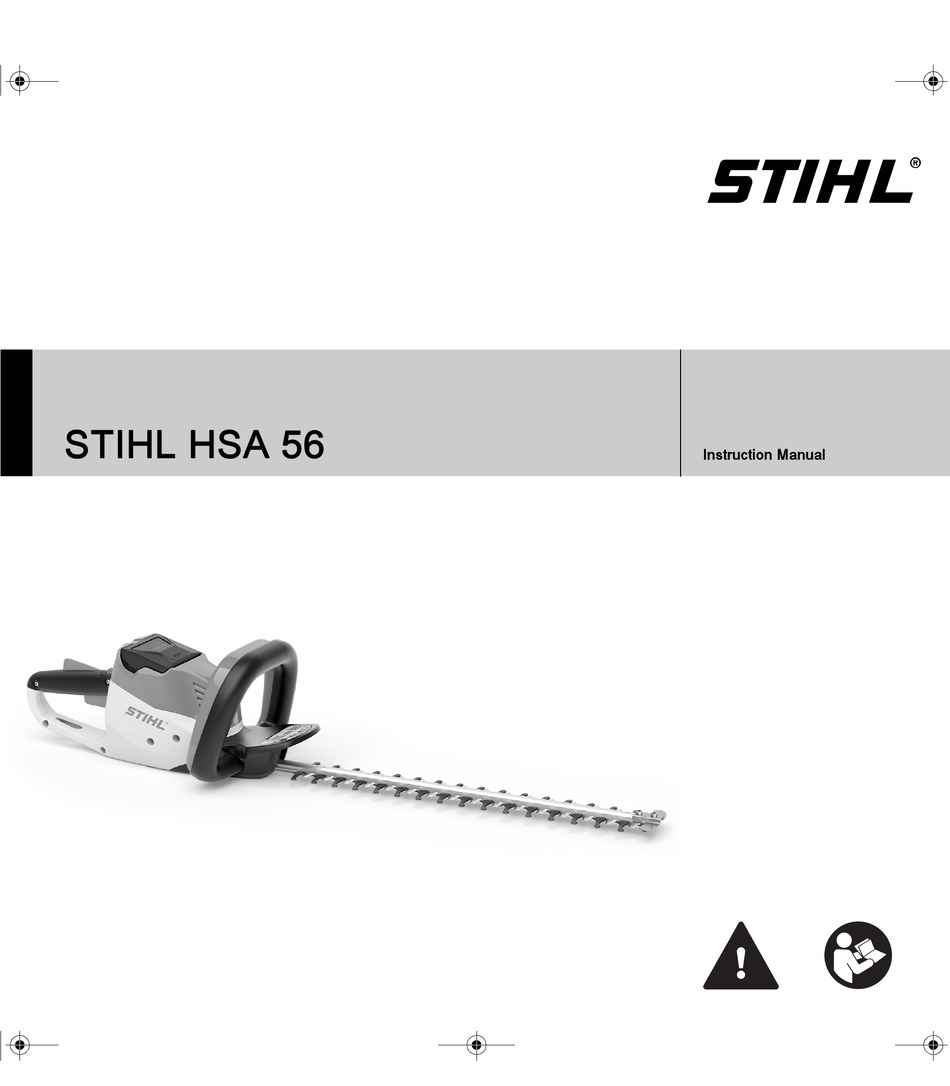

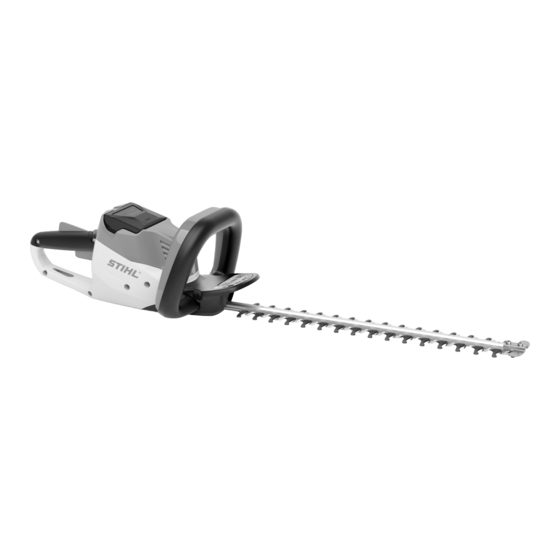

  • Page 1 STIHL HSA 56 Instruction Manual...
  • Page 3 Switching the Hedge Trimmer On/Off ....15 18.3 STIHL AK Battery ........22 8.1 Switching On .
  • Page 4 EC Declaration of Conformity..... . . 23 The products are designed for reliability even under extreme 21.1 STIHL HSA 56 Hedge Trimmer..... 23 conditions.

  • Page 5: Symbols Used With Warnings In The Text

    English 3 Overview Symbols used with warnings in the text 3 Overview WARNING Hedge Trimmer, Battery and Charger This symbol indicates dangers that can cause serious injuries or death. ► The measures indicated can avoid serious injuries or death. NOTICE This symbol indicates dangers that can cause damage to property.

  • Page 6: Symbols

    English 3 Overview 4 Locking Lever # Rating label with serial number Secures the battery in the battery compartment. Symbols 5 Retaining Latch Operated together with the trigger lockout to unlock the The following symbols may be applied to the hedge trimmer, trigger.

  • Page 7: Safety Precautions

    Observe safety notices and take the necessary precautions. Intended Use The STIHL HSA 56 hedge trimmer is designed for cutting Read, understand and save the instruction hedges, shrubs, bushes and scrub. manual. The STIHL AK battery supplies power to the hedge trimmer.

  • Page 8: Clothing And Equipment

    ► Wear footwear made of durable material. ► Wear long trousers made of durable material. ► If you have any queries: Contact your STIHL servicing dealer. ￭ The user can come into contact with the cutting blades during cleaning and maintenance work.

  • Page 9: Work Area And Surroundings

    English 4 Safety Precautions Work Area and Surroundings ► Use and store your battery at temperatures between -10°C and +50°C. 4.5.1 Hedge Trimmer WARNING ► Protect the battery from rain and damp – do ￭ Bystanders, children and animals are not aware of the not immerse it in fluids.

  • Page 10: Safe Condition

    – Only original STIHL accessories designed for this hedge ► Make sure the cutting blades are properly sharpened trimmer are fitted. and deburred. – Accessories are properly mounted. ► If you have any queries: Contact your STIHL servicing dealer. WARNING 4.6.3 Battery ￭...

  • Page 11: Operation

    English 4 Safety Precautions WARNING ► If the battery is dirty or wet: Clean the battery and allow it to dry. ￭ If the product does not comply with safety requirements, ► Never attempt to modify the battery. components will no longer function properly or safety ►...

  • Page 12: Charging

    ► Make sure that the mains voltage and the mains to property. frequency of the power supply match the data on the ► Stop work, remove the battery and contact your STIHL rating plate of the charger. servicing dealer. ￭ During charging, a damaged or defective charger may ￭...

  • Page 13: Transporting

    English 4 Safety Precautions ￭ If wiring and pipes are laid in the wall, they may be 4.9.2 Battery damaged if the charger is mounted on the wall. Contact WARNING with wiring can result in electric shock. This can result in serious injuries and damage to property.

  • Page 14: Cleaning, Maintenance And Repairs

    English 4 Safety Precautions ￭ The electrical contacts on the hedge trimmer can corrode ￭ The charger is not protected against all ambient if they are damp. This can damage the hedge trimmer. conditions. The charger may be damaged if it is exposed to certain ambient conditions.

  • Page 15: Preparing Hedge Trimmer For Operation

    ► If 3 LEDs flash red while you are checking the controls: devices may be rendered inoperative. This can result in Remove the battery and contact your STIHL servicing serious injuries. dealer.

  • Page 16: State Of Charge

    English 7 Removing and Fitting the Battery ► Insert the battery (2) in the guides in the charger (3) and If the LED glows green, the battery is being charged. press it home as far as stop. ► If the LED flashes red: Rectify the malfunction. The LED (4) glows green.

  • Page 17: Switching The Hedge Trimmer On/Off

    1 second. ► If the cutting blades continue to run after about 1 second: ► Press the locking lever (1). Remove the battery and contact your STIHL servicing The battery (2) is unlocked and can be removed. dealer.

  • Page 18: Testing The Battery

    ► Fit the battery. ► Depress the switch lever and release it again. ► If the cutting blades have run or are running: Do not use your hedge trimmer and contact your STIHL servicing dealer. The trigger has a malfunction.

  • Page 19: After Finishing Work

    (lithium-ion batteries) and has been tested in accordance with UN Manual of Tests and Criteria, Part III, sub-section 11 After Finishing Work 38.3. For transport regulations see www.stihl.com/safety-data- sheets 11.1 After Finishing Work ► Switch off the hedge trimmer, push retaining latch to...

  • Page 20: Storing The Battery

    ► Switch off the hedge trimmer, push retaining latch to position and remove the battery. – Battery is in an enclosed space. ► Clean the hedge trimmer with a damp cloth or STIHL resin – Store the battery separately from the hedge trimmer and solvent. charger.

  • Page 21: Maintenance

    Do not use the charger and have connecting cable replaced by a STIHL servicing dealer. ► Use a STIHL flat crosscut file to sharpen each cutting edge on the upper blade. The file only sharpens on the forward stroke. Maintain the prescribed sharpening angle, @ 18.2.

  • Page 22: Troubleshooting

    ► Clean contacts in battery compartment. ► Fit the battery. ► Switch on the hedge trimmer. ► If 3 LEDs continue to flash red: Contact your STIHL servicing dealer. Cutting blades do not move ► Spray both sides of blades with STIHL resin freely.

  • Page 23: Troubleshooting Charger

    LED flashes red. No electrical contact ► Remove the battery. charged. between charger and ► Clean contacts on charger. battery. ► Fit the battery. Malfunction in charger. ► Do not use the charger and contact your STIHL servicing dealer. 0458-714-0121-B...

  • Page 24: Specifications

    English 18 Specifications 18.5 Noise and Vibration Data 18 Specifications STIHL recommends that you wear hearing protection. – Sound pressure level L measured according to EN 60745-2-15: 80 dB(A) K-value for noise pressure level 18.1 STIHL HSA 56 Hedge Trimmer is 2.5 dB(A).

  • Page 25: Spare Parts And Accessories

    STIHL EN 60745-2 - 15. accessories. Applied conformity assessment procedure in accordance STIHL recommends the use of original STIHL replacement with Directive 2000/14/EC, Annex V. parts and accessories. – Measured sound power level: 91 dB(A) Original STIHL replacement parts and original STIHL –...

  • Page 26: General Power Tool Safety Warnings

    There held motor-operated electric tools. is an increased risk of electric shock if your body is STIHL is obliged to publish these texts. earthed or grounded. The safety precautions and warnings on avoiding an electric c) Do not expose power tools to rain or wet conditions.

  • Page 27: Power Tool Use And Care

    English 22 General Power Tool Safety Warnings Carrying power tools with your finger on the switch or e) Maintain power tools and accessories. Check for energising power tools that have the switch on invites misalignment or binding of moving parts, breakage of accidents.

  • Page 28: Service

    English 22 General Power Tool Safety Warnings e) Do not use a battery pack or tool that is damaged or – Keep cable away from cutting area. During operation the modified. Damaged or modified batteries may exhibit cable may be hidden in shrubs and can be accidentally cut unpredictable behaviour resulting in fire, explosion or risk by the blade.
  • Page 29 English 22 General Power Tool Safety Warnings 0458-714-0121-B...
  • Page 30 English 22 General Power Tool Safety Warnings 0458-714-0121-B...
  • Page 32 0458-714-0121-B englisch www.stihl.com *04587140121B* 0458-714-0121-B...
