enMotion

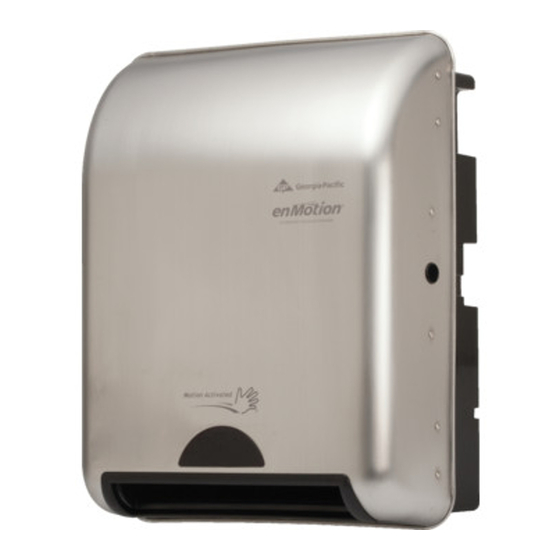

Recessed Automated Touchless Towel Dispenser
®
Installation Instructions for New and Retrofit Construction
This manual is designed to assist you in the installation of the
Georgia-Pacific enMotion Recessed Automated Touchless Towel Dispenser.
Below you will find several different application procedures. If you should
have any questions, please contact our Installation Support Team at
1-877-377-2737.
NOTE:
The following tools are necessary to properly complete this installation:
• Cordless drill and Phillips head drill bit
• Hammer
• Vise grip pliers
• Masking tape
• Sheetrock saw
• Two drift pins: one 1/32" and one 1/16" diameter
• #10 pan head self-tapping screws
Georgia-Pacific professional installation available at no cost for
20 units or more.
Georgia-Pacific makes no representations or warranties of Bobrick Washroom Equipment, Inc.
("Bobrick").
The installation description and illustration herein are to serve as a guide. Georgia-Pacific reserves
the right and does from time to time make changes and improvements in design, dimensions and
subsequent installation instructions. Georgia-Pacific does not take responsibility for any damage,
or injury to persons or property or any other incidental or consequential losses due to these instal-
lation instructions.
enMotion® is a registered trademark of Georgia-Pacific Corporation ©2005.
Georgia-Pacific Corporation. All rights reserved.
Advertisement
Related Manuals for Georgia Pacific enMotion
Summary of Contents for Georgia Pacific enMotion
- Page 1 Georgia-Pacific does not take responsibility for any damage, or injury to persons or property or any other incidental or consequential losses due to these instal- lation instructions. enMotion® is a registered trademark of Georgia-Pacific Corporation ©2005. Georgia-Pacific Corporation. All rights reserved.
- Page 2 Installation of enMotion Recessed Automated Touchless Towel Dispenser into Sheetrock Wall Locate stud in wall and cut hole to accommodate enMotion Recessed Automated Touchless Towel Dispenser. Cut hole that is 10-5/8” wide by 15-3/16” length. (See Fig. 1) Install and fit enMotion Recessed Automated Touchless Towel Dispenser into wall cavity.
- Page 3 Remove existing dispenser. (If Bobrick unit, see removal instructions below.) Tap Hinge Pin to expose at bottom of hinge. (See Fig. 1) Pull Hinge Pin straight down to remove. (See Fig. 2) Install and fit enMotion Recessed Automated Touchless Towel Dispenser into cavity. (See Fig. 3) Fig. 1 Locate mounting slots inside enMotion Recessed Automated Touchless Towel Dispenser.
- Page 4 For SKU# 59491 Trash Receptacle (16” cavity) cut hole that is 15.75” wide by 54” long at recommended height of 3” from floor (see Fig. 1). For SKU# 59471 Trash Receptacle (12” cavity) cut hole that is 11” wide by 57.5” long at recommended height of 4”...
- Page 5 (See Fig. 4) Once the Roll Towel dispenser has been removed you are now ready to install the enMotion Recessed Automated Touchless Towel Dispenser. This installation will require a custom Filler Panel. Contact a GP Marketing Services representative for Filler Panel availability options.
- Page 6 The Filler Panel should be ush with the face of the cabinet. While holding the enMotion Recessed Automated Touchless Towel Dispenser rmly in position, insert two # 10 screws in each side of the new enMotion Recessed Automated Touchless Towel Dispenser. (See Fig. 7) Install battery pack and test.
