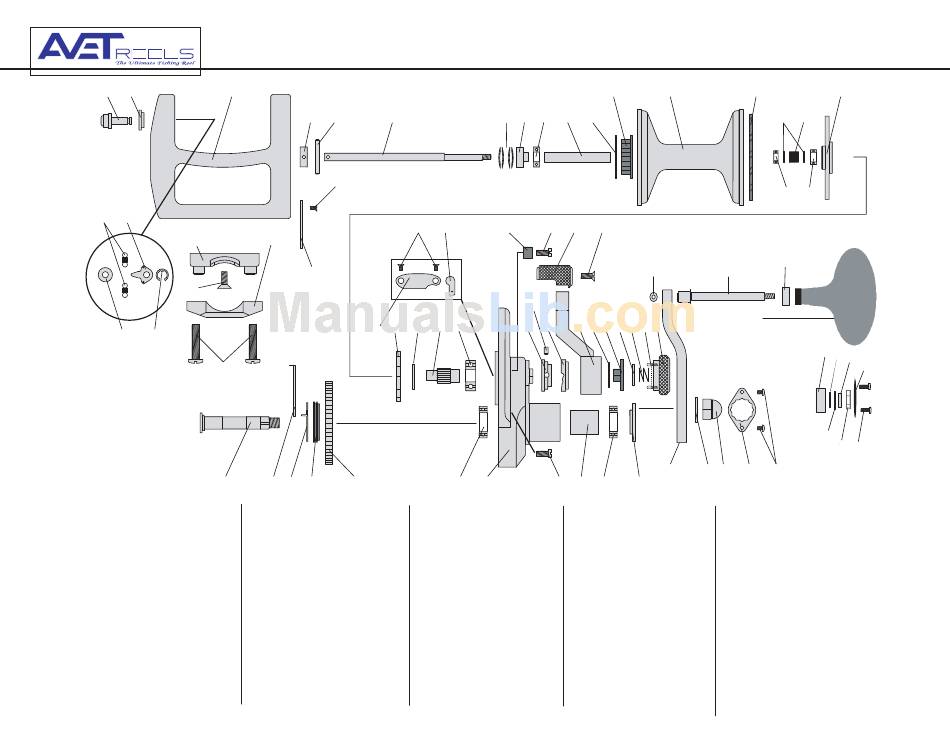

Avet Reels Fishing Reel MXL 5.8 Parts List

Models MXL 5.8 Parts List
66 1
65
68 69
71
73
72
67 70
74
24 25
1 - Main Housing MXL5.8-001
15 - Spool Spring Washer (2 req.)
2 - Gear cover MXL5.8-002 16 - Spool Spring
3 - Cover Screw (2 req.) MXL5.8-003 17 - Brake Bearing
4 - Spool Shaft MXL5.8-004 18 - Brake Disk
4A-Shaft Shoulder MXL5.8-004A
20 - Antireverse Gear
4B-Shaft Pin MXL5.8-004B
21 - Disk Ring
5 - Belleville Washers (4 req.) MXL5.8-005
22 - Pinion Gear
6 - Pusher Bushing MXL5.8-006 23 - Pinion Bearing
7 - Spool Bearing MXL5.8-007 24 - Drive Shaft
8 - Spool Tube MXL5.8-008
25 - Connection Arm
9 - Clicker Gear Retainer Ring MXL5.8-009
26 - Friction Ring
10- Clicker Gear MXL5.8-010
27 - Friction Washer
11- Spool MXL5.8-011 28 - Drive Gear
12- Brake Pad MXL5.8-012 29 - Drive Shaft Bearing (2 req.)
14- Spool Bearing MXL5.8-014 30 - End Housing
(rev. 5-08)
4A
4B 4
3
32 31
2
33 20 22 23
21
26 27 28 29
31 - Dog
MXL5.8-015
MXL5.8-016 32 - Dog Cover Screw (2 req.)
MXL5.8-017 33 - Dog Cover
MXL5.8-018 34 - Stop Pin (2 req.)
35 - Pin Screw (2 req.)
MXL5.8-020
36 - Handle Knob
MXL5.8-021
37 - Knob Screw
MXL5.8-022
MXL5.8-023 38 - End Housing Screw (3 req.)
MXL5.8-024 39 - Drive Shaft Tube
40 - Drive Shaft Washer
MXL5.8-025
41 - Male Cam
MXL5.8-026
42 - Male Cam Pin (2 req.)
MXL5.8-027
MXL5.8-028 43 - Female Cam
MXL5.8-029 44 - Lever Arm
MXL5.8-030 45 - Teflon Washer (2 req.)
10
5 6 7 8 9
34 35 36 37
55A
42
41 43 44 45 46 47 48 49
49A
30
38 39 29 40
MXL5.8-031 46- Drive Washer
MXL5.8-032 47- Preset Washer
MXL5.8-033 48- Preset Sprin
MXL5.8-034 49A- Preset Knob Detent
MXL5.8-035 49- Preset Knob
MXL5.8-036 50- Crank Arm
MXL5.8-037 51- Crank Arm Washer
MXL5.8-038 52- Acorn Nut
MXL5.8-039 53- Locking Plate
MXL5.8-040 54- Locking Plate Screws (2 req.)
MXL5.8-041 55A- Handle Shaft Washer
MXL5.8-042 55- Handle Knob Shaft
MXL5.8-043 56- Handle Shaft Bearing
MXL5.8-044 57- Handle Knob
MXL5.8-045 58- Knob Bearing
18
11 12
15 16
14 17
56
55
57
58 59
60
62
50 54
53
51 52
MXL5.8-046 59- Knob Washer (optional) MXL5.8-059
60- Spring Washer MXL5.8-060
MXL5.8-047
61- Lock Washer MXL5.8-061
MXL5.8-048
62- Nut MXL 5.8-062
MXL5.8-049A
63- Knob Cap MXL5.8-063
MXL5.8-049
MXL5.8-050 64- Knob Cap Screws (2 req.) MXL5.8-064
MXL5.8-051 65- Clicker Pin MXL5.8-065
66- Pin Support MXL5.8-066
MXL5.8-052
67- Pin Washer MXL5.8-067
MXL5.8-053
68- Clicker Spring (2 req.) MXL5.8-068
MXL5.8-054
MXL5.8-055A 69- Clicker Arm MXL5.8-069
MXL5.8-055 70- Pin E Clip MXL5.8-070
71- Reel Foot MXL5.8-071
MXL5.8-056
72- Reel Foot Screw MXL5.8-072
MXL5.8-057
73- Clamp MXL5.8-073
MXL5.8-058
74- Clamp Screws (2 req.) MXL5.8-074
