Avet Reels Fishing Reel MXJ - 5.8:1 Parts List

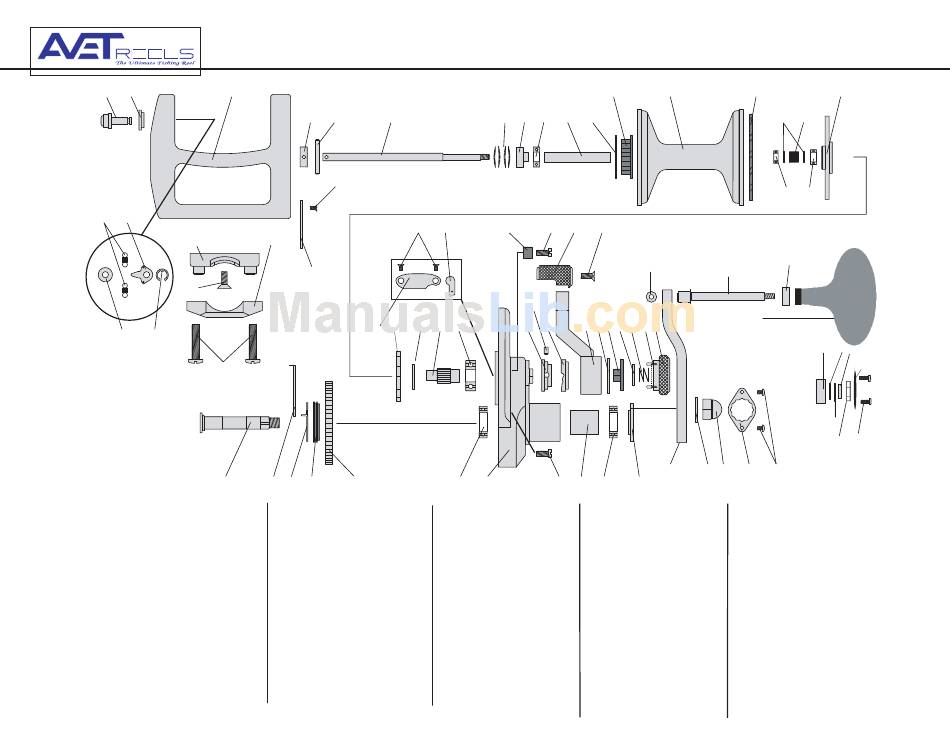

Models MXJ - 5.8:1 Parts List
65 1
64
67 68
70
72
71
66 69
73
24 25
1 - Main Housing MXJ5.8-001 15 - Spool Spring Washer (2 req.)
2 - Gear cover MXJ5.8-002 16 - Spool Spring
3 - Cover Screw (2 req.) MXJ5.8-003 17 - Brake Bearing
4 - Spool Shaft MXJ5.8-004 18 - Brake Disk
4A-Shaft Shoulder MXJ5.8-004A 19 - N/A
4B-Shaft Pin MXJ5.8-004B 20 - Antireverse Gear
5 - Belleville Washers (4 req.) MXJ5.8-005 21 - Disk Ring
6 - Pusher Bushing MXJ5.8-006 22 - Pinion Gear
7 - Spool Bearing MXJ5.8-007 23 - Pinion Bearing
8 - Spool Tube MXJ5.8-008 24 - Drive Shaft
9 - Clicker Gear Retainer Ring MXJ5.8-009 25 - Connection Arm
10- Clicker Gear MXJ5.8-010 26 - Friction Ring
11- Spool MXJ5.8-011 27 - Friction Washer
12- Brake Pad MXJ5.8-012 28 - Drive Gear
14- Spool Bearing MXJ5.8-014 29 - Drive Shaft Bearing (2 req.)
(rev. 5 - 2008)
4A
4B 4
3
32 31
2
33 20 22 23
21
26 27 28 29
MXJ5.8-015 30 - End Housing
MXJ5.8-016 31 - Dog
MXJ5.8-017 32 - Dog Cover Screw (2 req.)
MXJ5.8-018 33 - Dog Cover
MXJ5.8-019 34 - Stop Pin (2 req.)
MXJ5.8-020 35 - Pin Screw (2 req.)
MXJ5.8-021 36 - Handle Knob
MXJ5.8-022 37 - Knob Screw
MXJ5.8-023 38 - End Housing Screw (3 req.)
MXJ5.8-024 39 - Drive Shaft Tube
MXJ5.8-025 40 - Drive Shaft Washer
MXJ5.8-026 41 - Male Cam
MXJ5.8-027 42 - Male Cam Pin (2 req.)
MXJ5.8-028 43 - Female Cam
MXJ5.8-029 44 - Lever Arm
10
5 6 7 8 9
34 35 36 37
54A
42
44 45 46 47
41 43 48 49
49A
30
38 39 29 40
MXJ5.8-030 45 - Teflon Washer (2 req.)
MXJ5.8-031 46 - Drive Washer
MXJ5.8-032 47- Preset Washer
MXJ5.8-033 48- Preset Spring
MXJ5.8-034 49A- Preset Knob Detent
MXJ5.8-035 49 - Preset Knob
MXJ5.8-036 50 - Crank Arm
MXJ5.8-037 51 - Crank Arm Washer
MXJ5.8-0 38 52 - Acorn Nut
MXJ5.8-039 53 -Locking Plate
MXJ5.8-040 54 - Screws
MXJ5.8-041 54A- Handle Shaft Washer
MXJ5.8-042 54 -Handle Knob Shaft
MXJ5.8-043 55 -Handle Shaft Bearing
MXJ5.8-044 56 -Handle Knob
57 -Knob Bearing
18
11 12
15 16
14 17
55
54
56
58 59
57
60
61
50 53
52
51 52
MXJ5.8-045 58 -Knob Washer MXJ5.8-058
59 -Spring Washer MXJ5.8-059
MXJ5.8-045
60 -Lock Washer MXJ5.8-060
MXJ5.8-046
61 -Nut MXJ5.8-061
MXJ5.8-047
62 -Knob Cap MXJ5.8-062
MXJ5.8-048
MXJ5.8-049 63 -Knob Cap Screws MXJ5.8-063
MXJ5.8-049 64 -Reel Foot MXJ5.8-064
65 -Reel Foot Screws MXJ5.8-065
MXJ5.8-050
66 -Pin Washer MXJ5.8-066
MXJ5.8-051
67- Clicker Spring (2 req.) MXJ5.8-067
MXJ5.8-052
MXJ5.8-053 68- Clicker Arm MXJ5.8-068
MXJ5.8-054A 69- Pin E Clip MXJ5.8-069
70- Rod Mount MXJ5.8-070
MXJ5.8-054
71- Rod Mount Screws (2 req.) MXJ5.8-071
MXJ5.8-055
72 - Rod Mount Clamp MXJ5.8-072
MXJ5.8-056
MXJ5.8-057 73 - Clamp Screws MXJ5.8-073
62
63
