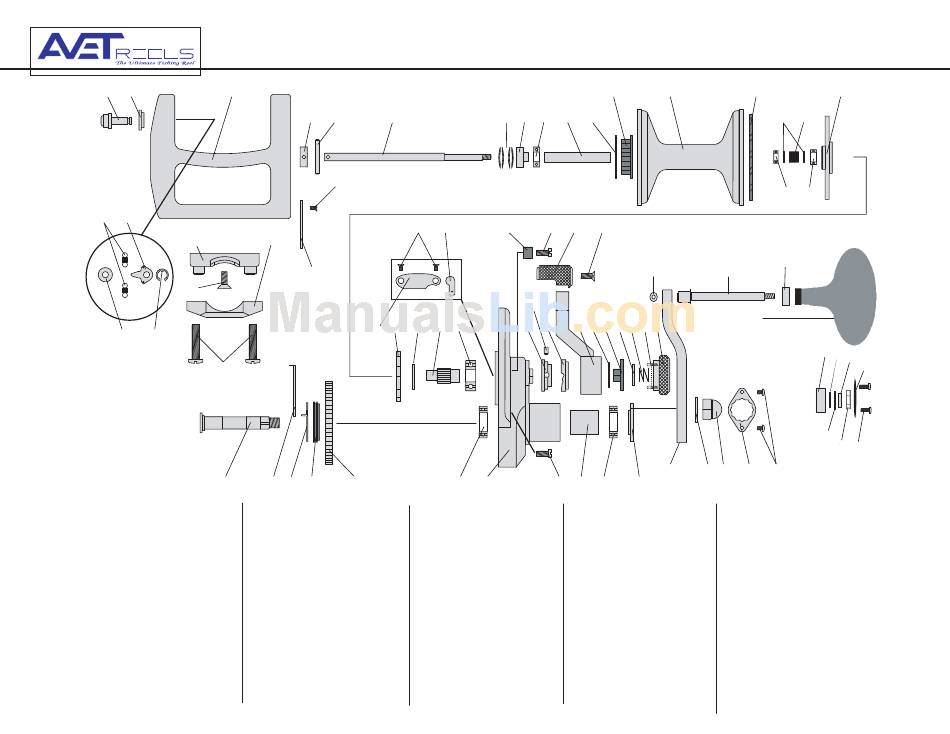

Avet Reels Fishing Reel JX 4.6 Parts List

Models JX 4.6 Parts List
66 1
65
68 69
71
73
72
67 70
74
24 25
1 - Main Housing JX 4.6-001
15 - Spool Spring Washer (2 req.)
2 - Gear cover JX4.6-002
16 - Spool Spring
3 - Cover Screw (2 req.) JX4.6-003
17 - Brake Bearing
4 - Spool Shaft JX4.6-004
18 - Brake Disk
4A-Shaft Shoulder JX4.6-004A
20 - Antireverse Gear
4B-Shaft Pin JX4.6-004B
21 - Disk Ring
5 - Belleville Washers (4 req.) JX4.6-005
22 - Pinion Gear
6 - Pusher Bushing JX4.6-006
23 - Pinion Bearing
7 - Spool Bearing JX4.6-007
24 - Drive Shaft
8 - Spool Tube JX4.6-008
25 - Connection Arm
9 - Clicker Gear Retainer Ring JX4.6-009
26 - Friction Ring
10- Clicker Gear JX4.6-010
27 - Friction Washer
11- Spool JX4.6-0 11
28 - Drive Gear
12- Brake Pad JX4.6-012
29 - Drive Shaft Bearing (2 req.)
14- Spool Bearing JX4.6-014
30 - End Housing
(rev. 5-08)
4A
4B 4
3
32 31
2
33 20 22 23
21
26 27 28 29
31 - Dog
JX4.6-015
32 - Dog Cover Screw (2 req.)
JX4.6-016
33 - Dog Cover
JX4.6-017
34 - Stop Pin (2 req.)
JX4.6-018
35 - Pin Screw (2 req.)
JX4.6-020
36 - Handle Knob
JX4.6-021
37 - Knob Screw
JX4.6-022
38 - End Housing Screw (3 req.)
JX4.6-023
39 - Drive Shaft Tube
JX4.6-024
40 - Drive Shaft Washer
JX4.6-025
41 - Male Cam
JX4.6-026
42 - Male Cam Pin (2 req.)
JX4.6-027
43 - Female Cam
JX4.6-028
44 - Lever Arm
JX4.6-029
45 - Teflon Washer (2 req.)
JX4.6-030
10
5 6 7 8 9
34 35 36 37
55A
42
41 43 44 45 46 47 48 49
49A
30
38 39 29 40
JX4.6-031 46- Drive Washer
JX4.6-032 47- Preset Washer
JX4.6-033 48- Preset Sprin
JX4.6-034 49A- Preset Knob Detent
JX4.6-035 49- Preset Knob
JX4.6-036 50- Crank Arm
JX4.6-037 51- Crank Arm Washer
JX4.6-038 52- Acorn Nut
JX4.6-039 53- Locking Plate
JX4.6-040 54- Locking Plate Screws (2 req.)
JX4.6-041 55A- Handle Shaft Washer
JX4.6-042 55- Handle Knob Shaft
JX4.6-043 56- Handle Shaft Bearing
JX4.6-044 57- Handle Knob
JX4.6-045 58- Knob Bearing
18
11 12
15 16
14 17
56
55
57
58 59
60
62
50 54
53
51 52
JX4.6-04 6 59- Knob Washer (optional) JX4.6-059
60- Spring Washer JX4.6-060
JX4.6-047
61- Lock Washer JX4.6-061
JX4.6-048
62- Nut JX4.6-062
JX4.6-049A
63- Knob Cap JX4.6-063
JX4.6-049
JX4.6- 050 64- Knob Cap Screws (2 req.) JX4.6-064
JX4.6-051 65- Clicker Pin JX4.6-065
66- Pin Support JX4.6-066
JX4.6-052
67- Pin Washer JX4.6-067
JX4.6-053
68- Clicker Spring (2 req.) JX4.6 -068
JX4.6-054
JX4.6-055 A 69- Clicker Arm JX4.6-069
JX4.6-055 70- Pin E Clip JX4.6-070
71- Reel Foot JX4.6-071
JX4.6 . -056
72- Reel Foot Screw JX4.6-072
JX4.6-057
73- Clamp JX4.6-073
JX4.6-058
74- Clamp Screws (2 req.) JX4.6-074
61
63
64
