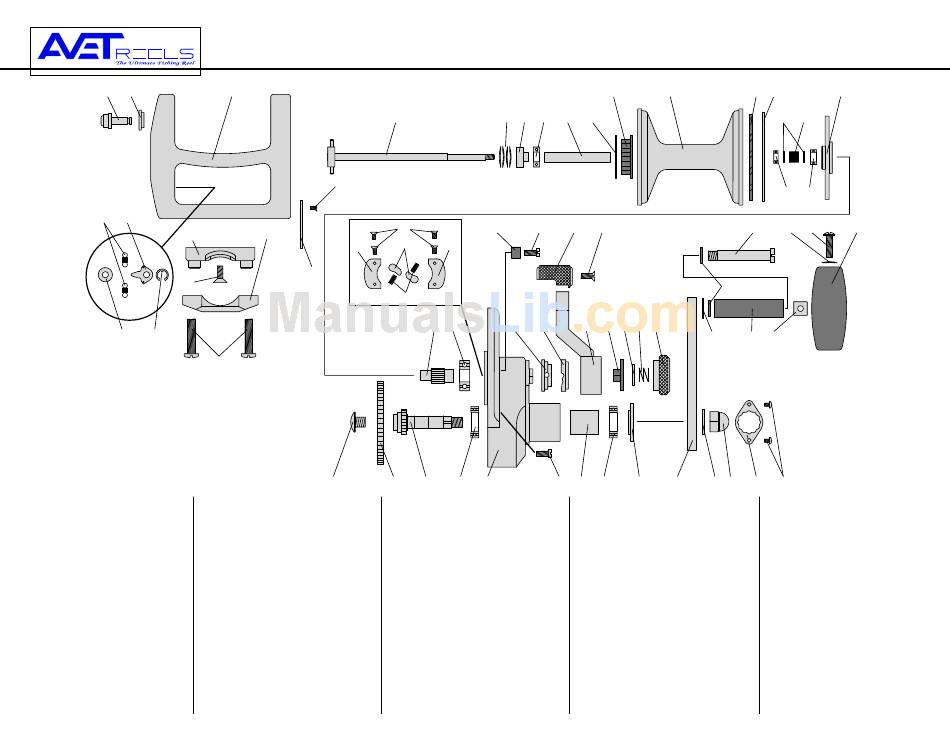

Avet Reels Fishing Reel MXJ - 4.5 Parts List

58
57
64 65
59
60
63 66
1 - Main Housing MXJ4.5-001
2 - Gear cover MXJ4.5-002
3 - Cover Screw (2 req.) MXJ4.5-003
4 - Spool Shaft MXJ4.5-004
5 - Belleville Washers (4 req.) MXJ4.5-005
6 - Pusher Bushing MXJ4.5-006
7 - Spool Bearing MXJ4.5-007
8 - Spool Tube MXJ4.5-008
9 - Clicker Gear Retainer Ring MXJ4.5-009
10- Clicker Gear MXJ4.5-010
11- Spool MXJ4.5-011
12- Brake Pad MXJ4.5-012
13- Brake Pad Retainer Ring MXJ4.5-013
14- Spool Bearing MXJ4.5-014
15 - Spool Spring Washer (2 req.) MXJ4.5-015
Models MXJ - 4.5 Parts List
1
3
61
29
2
62
21 22
16 - Spool Spring MXJ4.5-016
17 - Brake Bearing MXJ4.5-017
18 - Brake Disk MXJ4.5-018
19 - Pinion Gear MXJ4.5-019
20 - Pinion Bearing MXJ4.5-020
21 - Gear Screw MXJ4.5-021
22 - Drive Gear MXJ4.5-022
23 - Drive Shaft MXJ4.5-023
24 - Drive Shaft Bearing (2 req.) MXJ4.5-024
25 - End Housing MXJ4.5-025
26 - Untireverse Dog (2 req.) MXJ4.5-026
27 - Dog Spring (2 req.) MXJ4.5-027
28 - Dog Cover Screw (4 req.) MXJ4.5-028
29 - Dog Cover (2 req.) MXJ4.5-029
30 - Stop Pin (2 req.) MXJ4.5-030
4
5 6 7 8
28
30 31 36
26
29
27
19 20 33 34
23 24 25
32
31 - Stop Pin Screw MXJ4.5-031
32 - End Housing Screw (3 req.) MXJ4.5-032
33 - Male Cam MXJ4.5-033
34 - Female Cam MXJ4.5-034
35 - Lever Arm MXJ4.5-035
36 - Handle Knob MXJ4.5-036
37 - Knob Screw MXJ4.5-037
38 - Cam Insert MXJ4.5-038
39 - Insert Washer MXJ4.5-039
40 - Priset Spring MXJ4.5-040
41 - Preset Knob MXJ4.5-041
42 - Drive Shaft Tube MXJ4.5-042
43 - Drive Shaft Washer MXJ4.5-043
44 - Crank Arm MXJ4.5-044
45 - Crank Arm Washer MXJ4.5-045
10
11 12 13
9
37 53
50
35 38 39 40 41
49 51
44 45 46 47
42 24 43
46 - Akorn Nut MXJ4.5-046
47 - Locking Plate MXJ4.5-047
48 - Plate Screw (2 req.) MXJ4.5-048
49 - Handle Stem Washer MXJ4.5-049
50 - Handle Tube washer MXJ4.5-050
51 - Handle Tube MXJ4.5-051
52 - Lock Screw Nut MXJ4.5-052
53 - Handle Shoulder Bolt MXJ4.5-053
54 - Lock Screw Washer MXJ4.5-054
55 - Lock Screw MXJ4.5-055
56 - Handle Knob MXJ4.5-056
57 - Clicker Pin MXJ4.5-057
58 - Pin Support MXJ4.5-058
59 - Rod Mount MXJ4.5-059
60 - Rod Mount Screw (2 req.) MXJ4.5-060
18
15 16
14 17
54 55 56
52
48
61 - Rod Mount Clamp MXJ4.5-061
62 - Clamp Screw MXJ4.5-062
63 - Pin Washer MXJ4.5-063
64 - Clicker Spring (2 req.) MXJ4.5-064
65 - Clicker Arm MXJ4.5-065
66 - Pin E-Clip MXJ4.5-066
